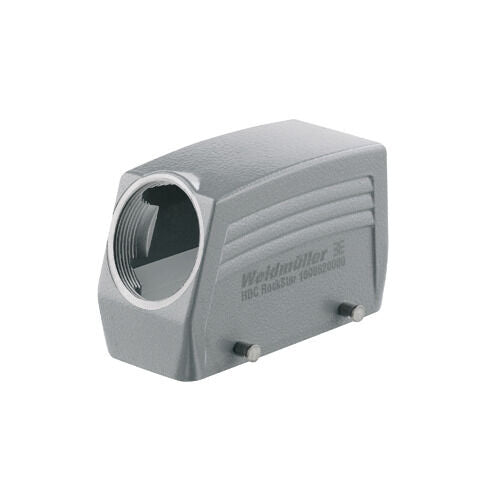

Weidmuller 1788180000 HDC 16B TSBU 1M25G

Product Description

The Weidmuller 1788180000 HDC 16B TSBU 1M25G is a plug housing designed for HDC enclosures. This standard plug housing features a side-locking clamp on the lower side and offers cable entry from the side. It provides IP65 protection when plugged in and accommodates M25 cable entries.

• HDC enclosures
• Installation size: 6
• Protection degree: IP65, in plugged condition

Product Highlights

The Weidmuller 1788180000 is a reliable plug housing with IP65 protection, ideal for industrial applications requiring secure cable connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1788180000
• Country of Origin: United States

Technical Specifications

• Order No.: 1788180000
• Type: Plug
• GTIN (EAN): 4032248205714
• Depth: 93.3 mm
• Depth (inches): 3.673 inch
• Height: 61 mm
• Height (inches): 2.402 inch
• Width: 59 mm
• Width (inches): 2.323 inch
• Length: 93.3 mm
• Length (inches): 3.673 inch
• Limit temperature: -40 00b0C ... 125 00b0C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Cable entry: w. thread
• Height of housing B: 61 mm
• Total length housing: 93.3 mm
• Width housing C: 43 mm
• Protection degree: IP65
• Surface finish: Powder coating
• Version: BG 6
• Clamp version: Side-locking clamp
• Colour (RAL): RAL 7035
• Cover: without cover
• Design: Standard
• Design of housing: Cable entry from side, Plug housing
• Design of locking system: Side-locking clamp on lower side
• Installation size: 6
• Internal thread: M 25
• Number of cable entry on top: 0
• Number of cable entry sideways: 1
• Sealing: no sealing
• Size of cable entries: M 25
• Suitable for ModuPlug: No
• Top part/bottom part/lid: upper part
• ETIM 8.0: EC000437
• ETIM 9.0: EC000437
• ETIM 10.0: EC000437
• ECLASS 14.0: 27-44-02-02
• ECLASS 15.0: 27-44-02-02
• Manufacturer: Weidm 00fcller
• Thread Size: M25
• Series: RockStar 00ae
• Size / Dimension: 3.673" L x 1.791" W x 2.402" H (93.30mm x 45.50mm x 61.00mm)
• Packaging: Bulk
• Housing Color: Gray
• Part Status: Active
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Connector Type: Hood
• Housing Material: Aluminum, Die Cast
• Style: Side Entry
• Housing Finish: Powder Coated
• Size: 6
• Accessory Type: Hood
• For Use With: RockStar Heavy Duty Connectors
• Connector Shell Size: 6
• Cable Exit Angle: 90 00b0
• Connector Body Material: Aluminium Body
• Product Range: None
• Brand: WEIDMULLER
• Condition: New
• Lock Location: Locking Clip (2) on Base Bottom
