Weidmuller 1781000000 WQL 3 WF8 3-Pole

Product Description

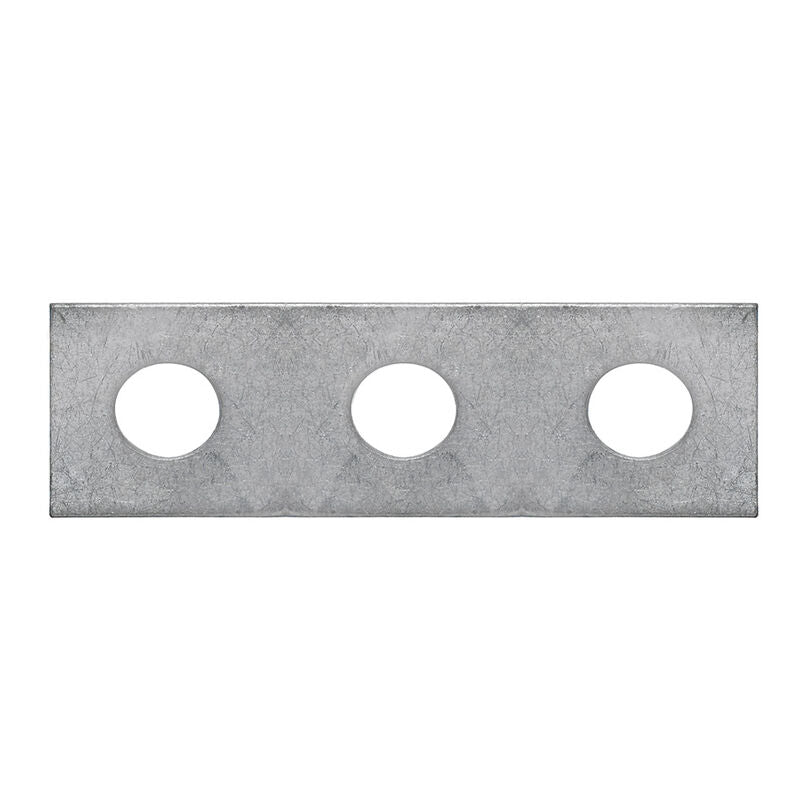

The Weidmuller 1781000000 WQL 3 WF8 is a 3-pole cross-connector designed for electrical connections. This terminal block features a bolt-type screw design, ensuring reliable mounting. It is made from copper-zinc alloy with a grey finish, ensuring durability and corrosion resistance. It is suitable for storage in environments ranging from -25°C to 55°C.

• Features a bolt-type screw design.
• Made from copper-zinc alloy with a grey finish.
• Suitable for storage in environments ranging from -25 °C to 55 °C.

Product Highlights

The WQL 3 WF8 is ideal for industrial and automation applications requiring stable, high-current connections, such as power distribution panels, control cabinets, and renewable energy systems.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1781000000
• Country of Origin: CZ

Technical Specifications

• Version: Bolt-type screw terminals, Cross-connector, Number of poles: 3
• Order No.: 1781000000
• Type: Terminal Block, Cross Connection
• GTIN (EAN): 4032248241200
• Depth: 4 mm
• Depth (inches): 0.157 inch
• Height: 63.6 mm
• Height (inches): 2.504 inch
• Width: 20 mm
• Width (inches): 0.787 inch
• Net weight: 38.734 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -5 °C…40 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Copper - zinc
• Colour: grey
• Explosion-tested version: No
• Installation advice: Direct mounting
• Type of fixing: when screwed in
• Pitch in mm (P): 22.8 mm
• Number of poles: 3
• Rated voltage: 400 V
• Nominal current: 150 A
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• ETIM 10.0: EC000489
• ECLASS 14.0: 27-25-03-03
• ECLASS 15.0: 27-25-03-03
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories, Terminal Block Jumpers
• Pitch: 0.866" (22.00mm)
• Manufacturer: Weidmüller
• Style: Round Pins
• Series: W
• For Use With/Related Products: W Series
• Packaging: Bulk
• Contact Material: Copper
• Part Status: Active
• Contact Finish: Zinc
• Color: Gray
• Number of Positions: 3
• Mfr. #: 1781000000
• For Use With: Weidmuller 3Pos Din Rail Terminal Blocks
• Accessory Type: Cross Connector
• Product Range: None
• SVHC: No SVHC (23-Jan-2024)
• Supplier: Weidmuller
• Part No: 1781000000
• Unit of Measure: Per Each
• RoHS: Yes
• HTS: 85389099
• COO: CZ
• ECCN: EAR99
• Supplier Standard Pack: 5
• Brand: Weidmuller
• Product: Plug In Bridges / Jumpers
• Product Type: Terminal Block Tools & Accessories
• Subcategory: Terminal Blocks
