Weidmuller 1712311001 Klbue 4-13.5 Sc

Product Description

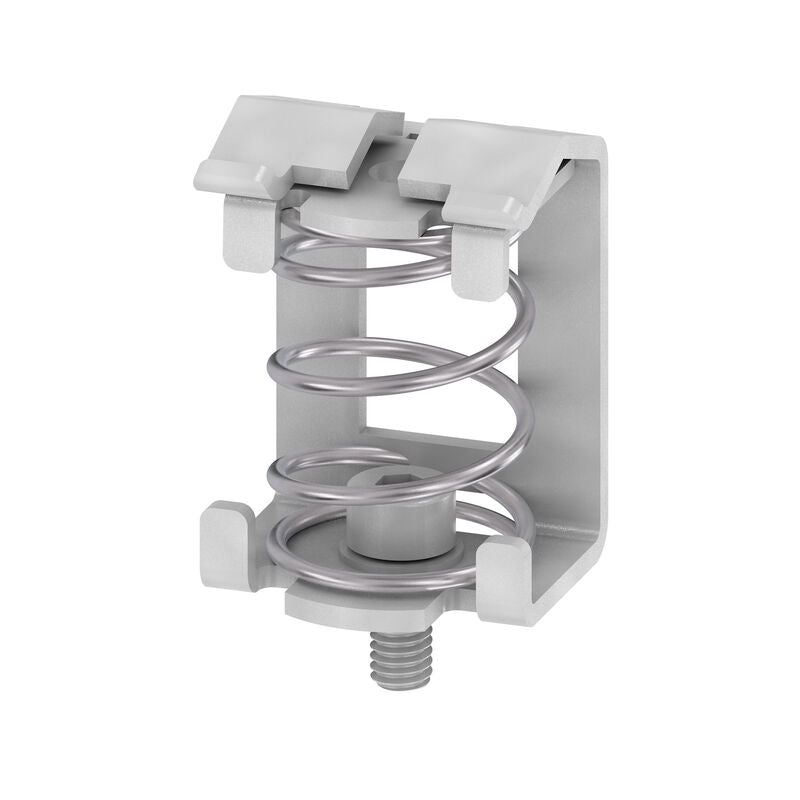

The Weidmuller 1712311001 Klbue 4-13.5 Sc is a clamping yoke for shield connections, constructed from steel. It is designed for direct mounting onto mounting plates. This clamping yoke facilitates secure and reliable connections for shielded cables in various applications.

• Clamping yoke for shield connection
• Steel construction
• Suitable for cable diameters from 4 mm to 13.5 mm

Product Highlights

The Weidmuller clamping yoke ensures secure shield connections with its steel construction and easy snap-on mounting.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1712311001
• Country of Origin: China

Technical Specifications

• Version: Clamping yoke, Clamping yoke for shield connection, Steel
• Order No.: 1712311001
• Type: KLBUE 4-13.5 SC
• GTIN (EAN): 4032248032358
• Depth: 31.45 mm
• Depth (inches): 1.238 inch
• Height: 22 mm
• Height (inches): 0.866 inch
• Width: 20.1 mm
• Width (inches): 0.791 inch
• Mounting dimension - width: 18.9 mm
• Net weight: 17.3 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -5 °C 40 °C
• Continuous operating temp., min.: -60 °C
• Continuous operating temp., max.: 130 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Product Carbon Footprint: Cradle to gate: 0.107 kg CO2 eq.
• Basic material: Steel
• UL 94 flammability rating: None
• For a shield connection: For a shield connection
• End cover plate required: No
• Mounting rail: Mounting plate
• Explosion-tested version: No
• Installation advice: Direct mounting
• Type of fixing: Snap-on
• Type of mounting: Screw
• Cable diameter, max.: 13.5 mm
• Cable diameter, min.: 4 mm
• Connection cross-section, stranded, max.: 13.5 mm²
• Connection cross-section, stranded, min.: 4 mm²
• Number of connections: 1
• Stripping length: 22 mm
• Type of connection: Spring connection
• Length of thread: 5.3 mm
• Pitch in mm (P): 20 mm
• Rated cross-section: 10 mm²
• ETIM 8.0: EC002020
• ETIM 9.0: EC002020
• ETIM 10.0: EC002020
• ECLASS 14.0: 27-25-01-20
• ECLASS 15.0: 27-25-01-20
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Accessories: Accessories
• Part Status: Active
• Manufacturer: Weidmüller
• Series: KLBU
• For Use With/Related Products: Shielded Cables
• Packaging: Bulk
• Brand: Weidmuller
• UPC: Does not apply
• Country of Origin: China
• USHTS: 8536904000
• TARIC: 8538909999
• ECCN: EAR99
• MFR #: 1712311001
• Zoro #: G916382181
• UPC #: None
