Weidmuller 165320000 HDC 06B KLU 1PG16G

Product Description

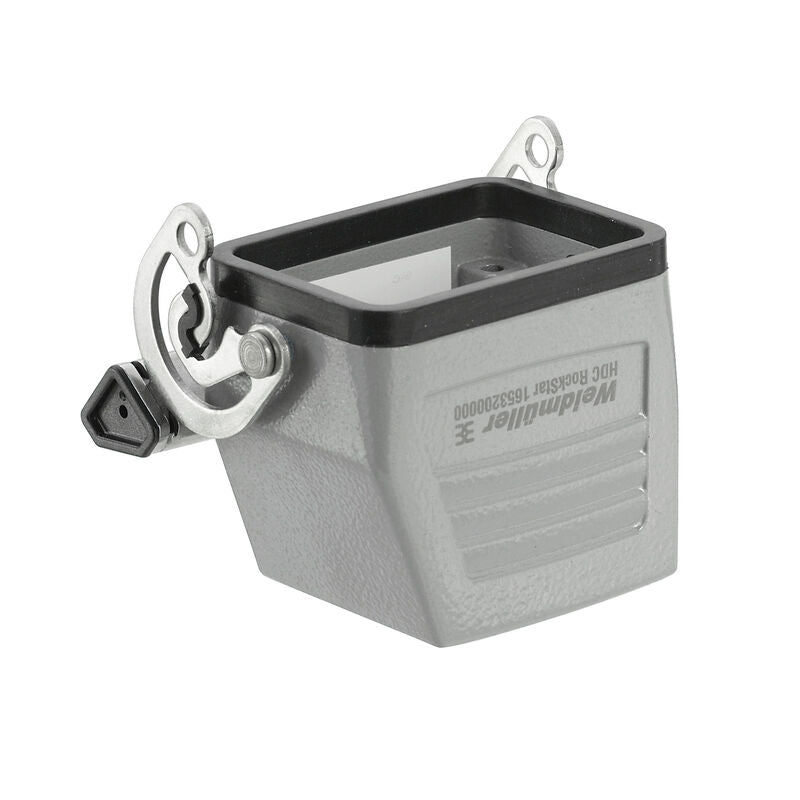

The Weidmuller 165320000 HDC 06B KLU 1PG16G is a coupling housing designed for HDC enclosures. This standard design features an end-locking clamp on the lower side and offers IP65 protection when plugged in. It accommodates a cable entry size of PG 16.

• IP65 protection degree in plugged condition
• Features an end-locking clamp on the lower side
• Cable entry size: PG 16

Product Highlights

Durable coupling housing with IP65 protection and PG 16 cable entry.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 165320000

Technical Specifications

• Protection degree: IP65
• Installation size: 3
• Clamp version: End-locking clamp
• Design: Standard
• Size of cable entries: PG 16
• Internal thread: PG 16
• Number of cable entry on top: 1
• Number of cable entry sideways: 0
• Sealing: NBR
• Suitable for ModuPlug: No
• Tightening torque: 1.2 Nm
• Type: coupling extension
• ETIM 8.0: EC000437
• ETIM 9.0: EC000437
• ETIM 10.0: EC000437
• ECLASS 14.0: 27-44-02-02
• ECLASS 15.0: 27-44-02-02
• Chemical resistance: Acetone: Conditionally resistant
• Chemical resistance: Drilling oil: Resistant
• Chemical resistance: Diesel: Resistant
• Chemical resistance: Ethyl alcohol: Resistant
• Chemical resistance: Transmission oil: Resistant
• Chemical resistance: Hydraulic oil: Resistant
• Chemical resistance: Coolant: Resistant
• Chemical resistance: Petroleum benzine: Resistant
• Chemical resistance: Sweat: Resistant
• Chemical resistance: Premium gasoline: Conditionally resistant
• Chemical resistance: Water: Resistant
• Chemical resistance: UV: Unstable
• Chemical resistance: Ozone: Unstable
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: Potassium perfluorobutane sulfonate 29420-49-3
• SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f

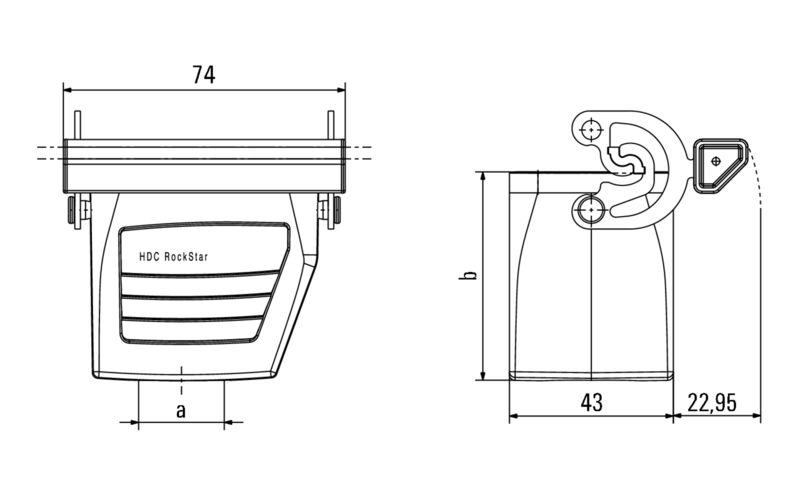

• Height: 55 mm
• Width: 66 mm
• Limit temperature: -40 °C ... 125 °C
• Cable entry: w. thread
• Height of housing B: 55 mm
• Total length housing: 60 mm
• Width housing C: 43 mm
• Surface finish: Powder coating
• Colour (RAL): RAL 7035
• Cover: without cover
• Design of housing: Coupling housing
• Design of locking system: End-locking clamp, lower side
