Weidmuller Weidmuller 1616490000 ZSI 2.5/2/LD 120AC
Weidmuller Weidmuller 1616490000 ZSI 2.5/2/LD 120AC

Weidmuller 1616490000 ZSI 2.5/2/LD 120AC

Brand: Weidmuller
SKU: 1616490000
Availability: In Stock

Ships same day if ordered by 12 pm
$26.57
$26.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

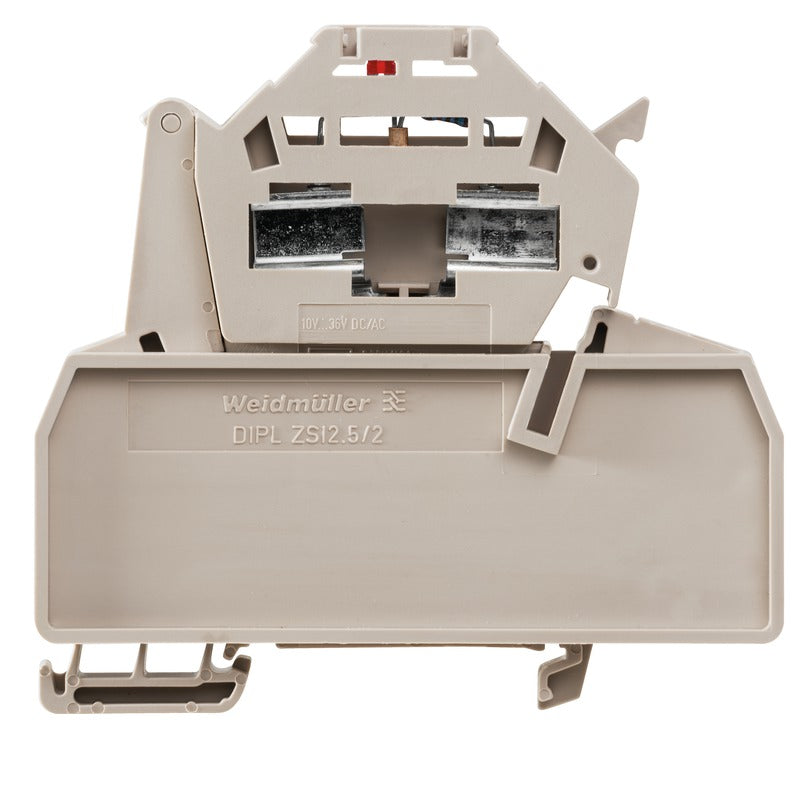

The Weidmuller 1616490000 is a Z-series fuse terminal block with a rated cross-section of 2.5 mm². This terminal features a tension-clamp connection and is designed for direct mounting. It provides a robust and secure connection for various applications, ensuring excellent conductivity and reducing the risk of signal loss.

  • Fuse terminal
  • Tension-clamp connection
  • Direct mounting

Product Highlights

The Weidmuller 1616490000 fuse terminal block is designed for efficient and secure electrical connections in industrial and control panel applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1616490000
Technical Specifications
Version
Tension-clamp connection
Order No.
1616490000
Type
Disconnect
GTIN (EAN)
4008190196653
Depth
73 mm
Depth (inches)
2.874 inch
Depth including DIN rail
74 mm
Height
79.5 mm
Height (inches)
3.13 inch
Width
11.9 mm
Width (inches)
0.469 inch
Net weight
28.3 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
UL 94 flammability rating
V-0
Fuse cartridge
with LED
for plug-in cross-connector
in closed state
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
No
Installation advice
Direct mounting
Number of similar terminals
1
Open sides
right
Type of mounting
Snap-on
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
2.5 mm²
Connection direction additional connection
top
Connection type, additional connection
Tension-clamp connection
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.13 mm²
Connection cross-section, finely stranded, min.
0.13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0.13 mm²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
10 mm
Type of connection
Tension-clamp connection
Type of connection 2
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0.13 mm²
Certificate No. (CSA)
200039-1152892
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG
Cartridge fuse
G-Si. 6.3 x 32
Display
Red LED
Fuse holder (cartridge holder)
Pivoting
Operating voltage, max.
120 V
Power loss for overload and short-circuit protection for a composite arrangement
2.5 W at 2.5 A @ 29°C
Power loss for overload and short-circuit protection for an individual arrangement
2.5 W at 2.5 A @ 40°C
Power loss for short-circuit protection only for a composite arrangement
2.5 W at 2.5 A @ 72°C
Power loss for short-circuit protection only for an individual arrangement
4.0 W at 10.0 A @ 46°C
Type of voltage for indicator
AC/DC
Standards
IEC 60947-7-3
Rated cross-section
2.5 mm²
Rated voltage
120 V
Rated voltage to adjoining terminal
500 V
Rated DC voltage
120 V
Nominal current
12 A
Current at maximum wires
12 A
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
12 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
12 AWG
Conductor size Field wiring min. (UR)
26 AWG
Manufacturer
Weidmuller
Series
Z
Wire Gauge or Range - AWG
12-26 AWG
Wire Gauge or Range - mm²
0.5-4mm²
Features
LED
Disconnect Type
Fuse, Removable Plug
Material - Insulation
Thermoplastic, Wemid
Terminal - Width
12.2mm
Material Flammability Rating
UL94 V-0
Termination Style
Push In, Spring
Conductor Area CSA
4
Rated Current
12
Rated Voltage
150
Fuse Type
6.3mm x 32mm
Voltage - IEC
500V
Current - UL
16 A
Voltage - UL
600V
