Weidmuller 1569090000 vg 13,5-ms68

Product Description

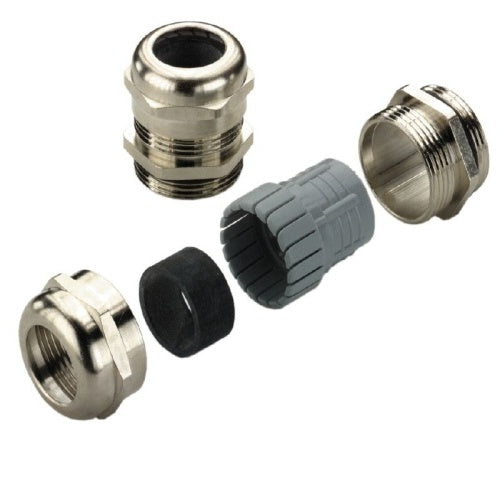

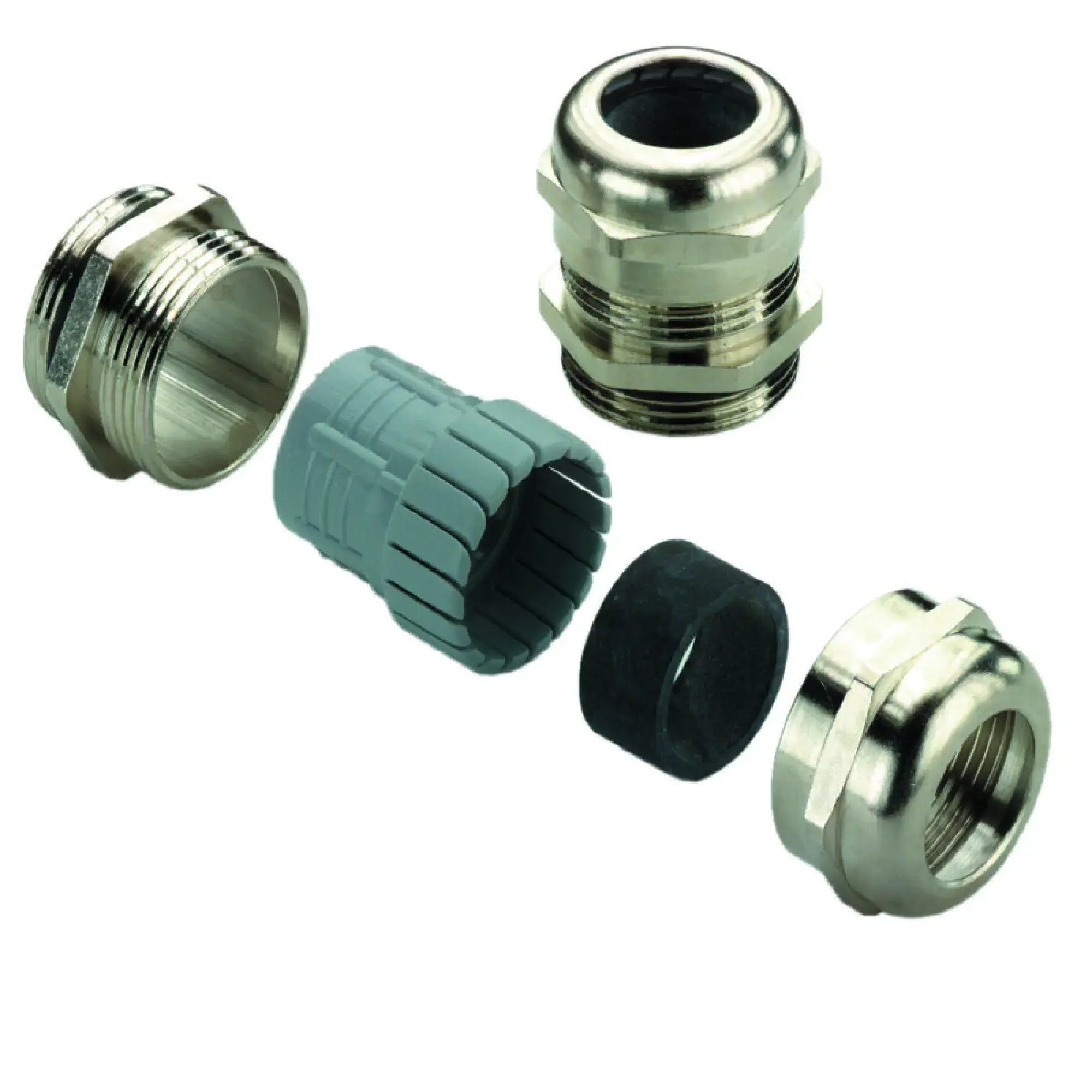

The Weidmuller 1569090000 VG 13,5-MS68 is a standard brass cable gland with a straight design. It features a PG 13.5 thread and is suitable for outer cable diameters from 6 mm to 12 mm. This cable gland provides IP54, IP66, IP67, IP68, and IP69K protection degrees.

• VG MS (standard brass cable gland)
• Suitable for cable diameters from 6 mm to 12 mm
• Offers IP54, IP66, IP67, IP68, and IP69K protection

Product Highlights

This cable gland is ideal for sealing housings and providing strain relief in various industrial applications.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1569090000

Technical Specifications

• Version: VG MS (standard brass cable gland), Cable glands, straight, PG 13.5, 6.5 mm, OD min. 6 - OD max. 12 mm, IP54, IP66, IP67, IP68 - 5 bar (30 min.), IP69K, Brass, nickel-plated
• Order No.: 1569090000
• Type: VG 13,5-MS68
• GTIN (EAN): 4008190177089
• AF size: 22 mm
• AF size 1: 22 mm
• AF size 2: 22 mm
• Basic material: Brass, nickel-plated
• Cable gland: PG
• Clamp insert: Polyamide
• External thread: PG 13.5
• Halogen: Yes
• Length of thread: 6.5 mm
• O-Ring: NBR
• Operating temperature range, max.: 100 °C
• Operating temperature range, min.: -40 °C
• Outer cable diameter, max.: 12 mm
• Outer cable diameter, min.: 6 mm
• Pitch of thread: 1.41 mm
• Protection class (UL): Type 4X
• Protection degree: IP54
• Protection degree with GWDR: IP54
• Seal insert: CR
• Sealing: NBR
• Tightening torque: 5.5 Nm
• Torque for cap nut, max.: 8.5 Nm
• Torque for cap nut, min.: 7.5 Nm
• Torque for connecting adapter, max.: 6 Nm
• Torque for connecting adapter, min.: 5 Nm
• Height: 25.5 mm
• Height (inches): 1.004 inch
• Length: 31 mm
• Length (inches): 1.22 inch
• Net weight: 28.5 g
• Operating temperature: -40 °C...100 °C
• RoHS Compliance Status: Compliant with exemption
• RoHS Exemption (if applicable/known): 6c
• REACH SVHC: Lead 7439-92-1
• SCIP: b5ff1f66-ddba-4739-9fc0-0521ddb52139
• ETIM 8.0: EC000441
• ETIM 9.0: EC000441
• ETIM 10.0: EC000441
• ECLASS 14.0: 27-14-08-01
• ECLASS 15.0: 27-14-08-01
• Category: Cables, Wires - Management
• Cable and Cord Grips: Cable and Cord Grips
• Thread Size: PG13.5
• Manufacturer: Weidm üller
• Thread Length: 0.256" (6.50mm)
• Series: VG Series
• Material: Brass, Nickel Plated
• Packaging: Bulk
• Includes: Seal
• Part Status: Active
• Ingress Protection: IP54/IP66/IP67/IP68/IP69K - Dust Protected, Dust Tight, Water Resistant, Waterproof
• Outside Cable Diameter (Min): 0.236" (6.00mm)
• Outside Cable Diameter (Max): 0.472" (12.00mm)
• Base Product Number: VG 13-MS
• Finish: Nickel Plated
• Cable Diameter: 6 to 12 mm
• Component: Cable Gland
• Cable Gland Composition: Brass Nickel-Plated
• P/N (Part Number): 1569090000
• EAN: 04008190177089
• ETIM: EC000441
• Designations: Cable gland
