Description

Product Description

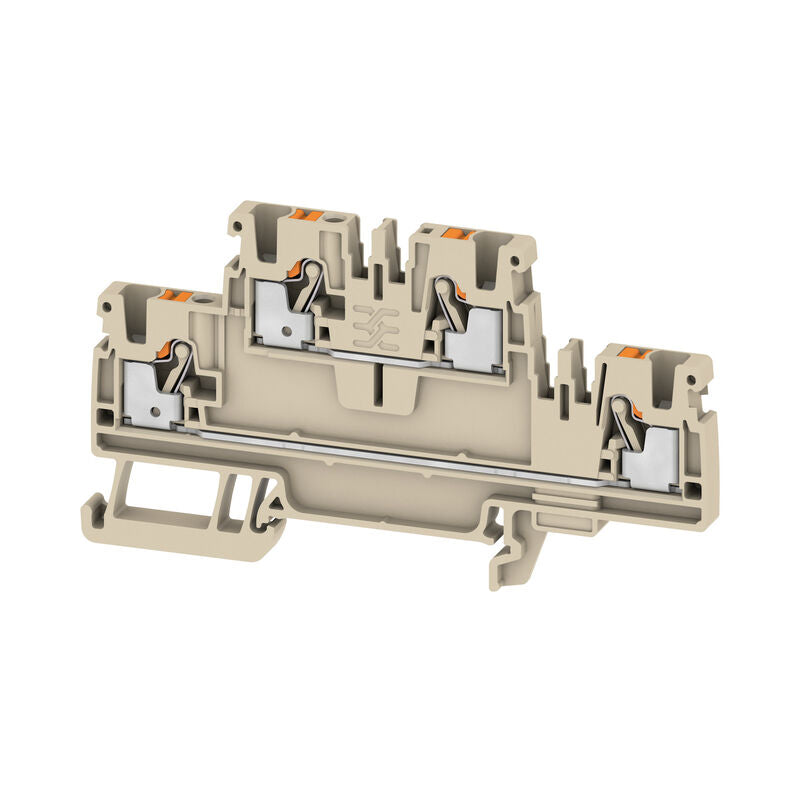

The Weidmuller 1547610000 A2T 2.5 is a feed-through, double-tier terminal block with PUSH IN connection. Constructed from Wemid material, it features two potentials, two levels, and four connections. This terminal block supports wire sizes from 28 AWG to 12 AWG. It is designed for TS 35 mounting rail applications.

  • PUSH IN technology
  • Snap-on type of fixing
  • Snap-on type of mounting

Product Highlights

The A2T 2.5 terminal block offers secure and efficient electrical connections for industrial applications. It features a flammability rating that meets UL94-V0 and approvals from UL E60693 and CEcURus.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1547610000
  • Country of Origin: DE
Technical Specifications
Order No.
1547610000
Type
A2T 2.5
GTIN (EAN)
4050118462838
Depth
50.5 mm
Depth (inches)
1.988 inch
Depth including DIN rail
51 mm
Height
90 mm
Height (inches)
3.543 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
13.17 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C 40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
20 A
Wire cross section max. (ATEX)
2.5 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
20 A
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
2
Number of levels
2
Number of clamping points per level
2
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.14 mm²
Connection cross-section, finely stranded, min.
0.14 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0.14 mm²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
10 mm
Twin wire-end ferrules, max.
0.75 mm²
Twin wire-end ferrules, min.
0.5 mm²
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm²
Wire connection cross-section, solid core, max.
2.5 mm²
Wire connection cross-section, solid core, min.
0.14 mm²
Certificate No. (CSA)
200039-70089609
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG
Standards
IEC 60947-7-1
Rated cross-section
2.5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0.77 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-02
ECLASS 15.0
27-25-01-02
MPN
1547610000
Brand
WEIDMULLER
Condition
New – Open box
No. of Positions
4Positions
Wire Size AWG Min
28AWG
Wire Size AWG Max
12AWG
Conductor Area CSA
2.5mm²
Wire Connection Method
Push In
Rated Current
24A
Rated Voltage
800V
No. of Levels
2
Product Range
A Series
SVHC
No SVHC (23-Jan-2024)
Terminal Block Voltage Rating
800 Volt
Terminal Block Number of Connections
4
Terminal Block Connection Method
Push-In Connection
Terminal Block Amperage
24 Amp
Terminal Block Width
5.1 mm
Component
Terminal Block
Sub Component
Feed-Through Terminal Block
Terminal Block Component Color
Dark Beige
Manufacturer
Weidmuller
Supplier
Weidmuller
Part No
1547610000
Unit of Measure
Per Each
RoHS
Yes
HTS
85369010
COO
DE
ECCN
EAR99
Supplier Standard Pack
50
