Description

Product Description

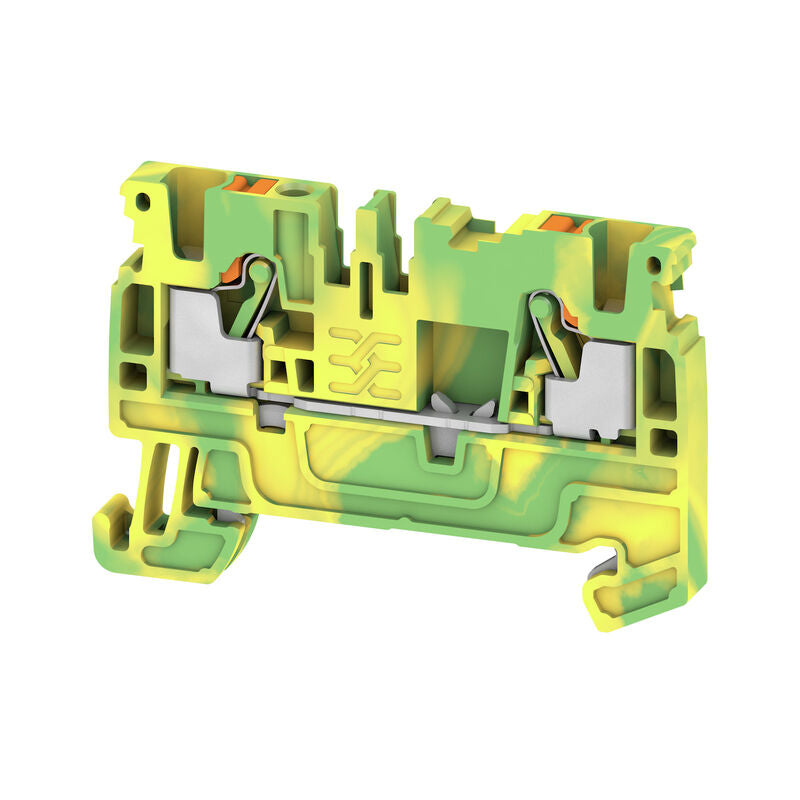

The Weidmuller 1521680000 A2C 2.5 PE is a PE terminal block with PUSH IN connection. This terminal block features 2 connections on one level and accommodates wire cross sections from AWG 26 to 12. Its compact design and push-in connection facilitate easy wiring in confined spaces.

  • PUSH IN connection type
  • Accommodates wire cross sections from AWG 26 to 12
  • Compact design for easy wiring

Product Highlights

The Weidmuller A2C 2.5 PE terminal block enables the connection of solid and stranded conductors without ferrules.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1521680000
Technical Specifications
Version
PE terminal, PUSH IN, 2.5 mm ², Green/yellow
Order No.
1521680000
Type
A2C 2.5 PE
GTIN (EAN)
4050118328189
Depth
36.5 mm
Depth (inches)
1.437 inch
Depth including DIN rail
37 mm
Height
55 mm
Height (inches)
2.165 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
9.253 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C …40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Wire cross section max. (ATEX)
2.5 mm ²
Wire cross section max. (IECEX)
2.5 mm ²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm ²
Clamping range, min.
0.14 mm ²
Connection cross-section, finely stranded, min.
0.14 mm ²
Connection cross-section, stranded, max.
4 mm ²
Connection cross-section, stranded, min.
0.14 mm ²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
10 mm
Twin wire-end ferrules, max.
0.75 mm ²
Twin wire-end ferrules, min.
0.5 mm ²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm ²
Wire connection cross section, finely stranded, min.
0.14 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.14 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm ²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm ²
Wire connection cross-section, solid core, max.
2.5 mm ²
Wire connection cross-section, solid core, min.
0.14 mm ²
Certificate No. (CSA)
200039-70089609
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG
Standards
IEC 60947-7-2
Rated cross-section
2.5 mm ²
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Volume resistance according to IEC 60947-7-x
1.33 m Ω
Rated impulse withstand voltage
8 kV
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Feed-through terminal block
Green/yellow
Connection type
Push-in connection
Level
Single level
