Weidmuller Weidmuller 1521540000 A4C 2.5 PE
Weidmuller Weidmuller 1521540000 A4C 2.5 PE

Weidmuller 1521540000 A4C 2.5 PE

Brand: Weidmuller
SKU: 1521540000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

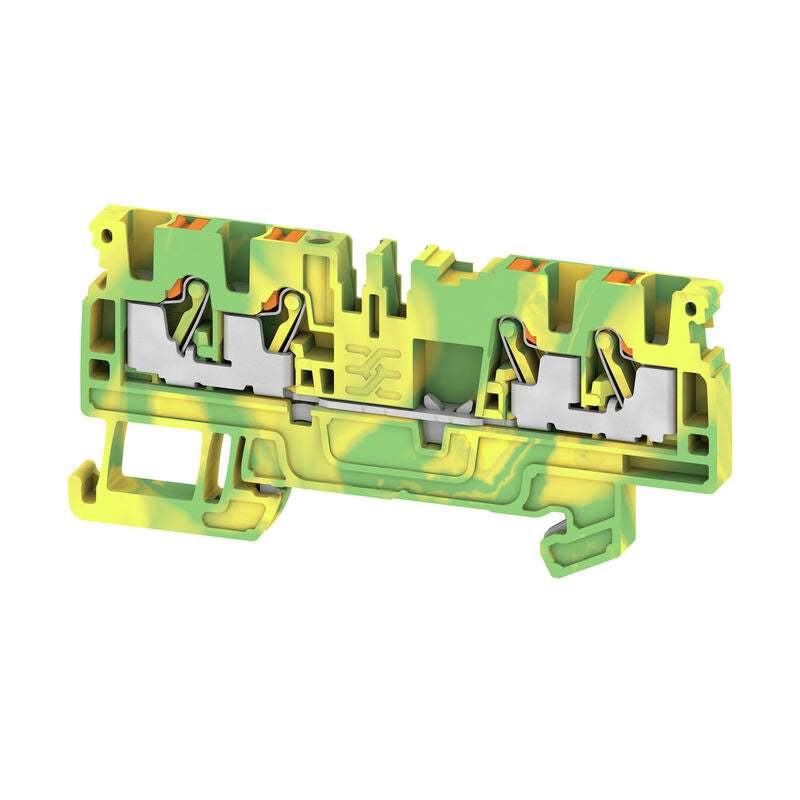

The Weidmuller 1521540000 A4C 2.5 PE is a PE terminal with PUSH IN connection, designed for 2.5 mm² wires. It is suitable for DIN rail mounting. This terminal block features 4 positions and accommodates wire sizes from 12-28 AWG.

  • PE terminal with PUSH IN connection
  • Suitable for 2.5 mm² wires
  • Designed for DIN rail mounting

Product Highlights

The Weidmuller A4C 2.5 PE terminal block ensures reliable grounding in a compact design. It supports a wide range of wire sizes and is ideal for various industrial applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1521540000
Technical Specifications
Version
PE terminal, PUSH IN, 2.5 mm ², Green/yellow
Order No.
1521540000
Type
Ground, Earth
GTIN (EAN)
4050118328349
Depth
36.5 mm
Depth (inches)
1.437 inch
Depth including DIN rail
37 mm
Height
77.5 mm
Height (inches)
3.051 inch
Width
5.1 mm
Width (inches)
0.201 inch
Net weight
12.74 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C …40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
Colour of operational elements
orange
UL 94 flammability rating
V-0
Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Wire cross section max. (ATEX)
2.5 mm²
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Number of potentials per tier
1
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No
Connection type, additional connection
PUSH IN
Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0.14 mm²
Connection cross-section, finely stranded, min.
0.14 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0.14 mm²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
4
Stripping length
10 mm
Twin wire-end ferrules, max.
0.75 mm²
Twin wire-end ferrules, min.
0.5 mm²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0.14 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, min.
0.14 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, max.
2.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.14 mm²
Wire connection cross section, solid core, max.
2.5 mm²
Wire connection cross section, solid core, min.
0.14 mm²
Certificate No. (CSA)
200039-70089609
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG
Standards
IEC 60947-7-2
Rated cross-section
2.5 mm²
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Volume resistance according to IEC 60947-7-x
1.33 mΩ
Rated impulse withstand voltage
8 kV
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Surge voltage category
III
Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Termination Style
Push In
Manufacturer
Weidmüller
Voltage - IEC
800V
Series
A
Voltage - UL
600V
Packaging
Box
Wire Gauge or Range - AWG
12-28 AWG
Part Status
Active
Wire Gauge or Range - mm²
0.5-2.5mm²
Material - Insulation
Thermoplastic, Wemid
Material Flammability Rating
UL94 V-0
Terminal - Width
5.1mm
Rated Current
300A
Product Range
Klippon A
SVHC
No SVHC (23-Jan-2024)
Brand
WEIDMULLER
Condition
New – Open box
