Weidmuller 1498900000 HDC HSB 6 FS 35A 600V

Brand: Weidmuller
SKU: 1498900000
Availability: In Stock

Ships same day if ordered by 12 pm
$38.14
$38.14
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

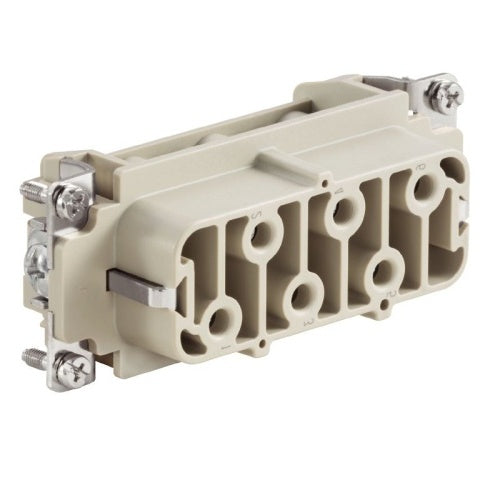

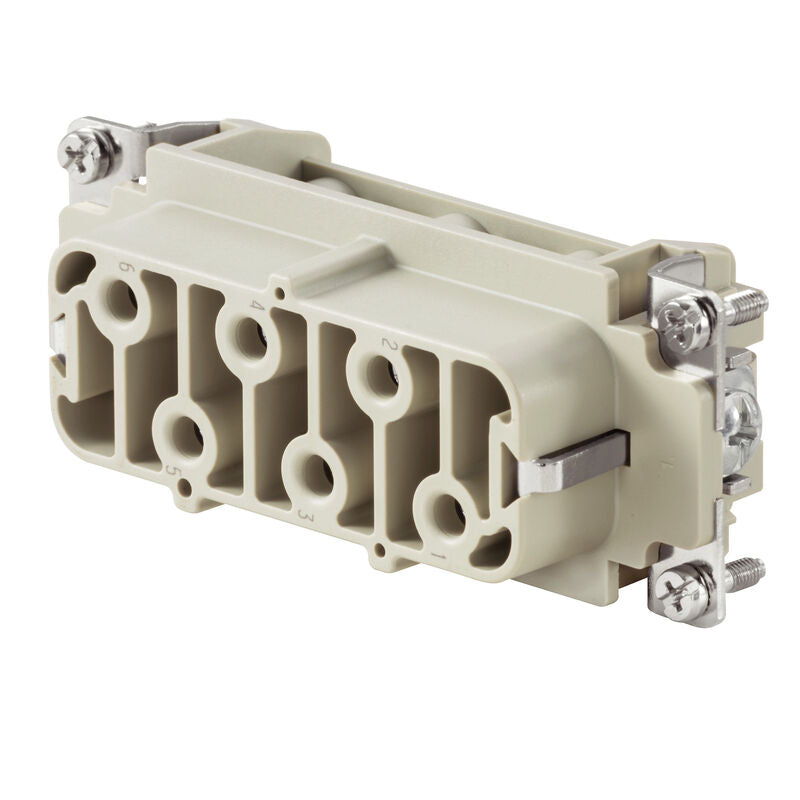

The Weidmuller 1498900000 HDC HSB 6 FS is a female HDC insert rated at 400V and 35A, designed with 6 poles and screw connections, and an installation size of 6. It is suitable for heavy-duty power connector applications. The HSB series enables carrying 35A per contact simultaneously.

  • Assembled with screw connections for secure and reliable connections.
  • Wire connection level is designed as a screw element.
  • All screw connections are equipped with a wire protection spring.

Product Highlights

The Weidmuller 1498900000 HDC HSB 6 FS ensures reliable power connections in demanding industrial environments.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1498900000
Technical Specifications
Series
Rockstar HSB
Type
Female
Installation size
6
Rated voltage (DIN EN 61984)
400 V
Rated current (DIN EN 61984)
35 A
Number of poles
6
Type of connection
Screw connection
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage according to UL/CSA
600 V AC/DC
Pollution severity
3
Basic material
Copper alloy
Surface finish
Silver passivated
UL 94 flammability rating
V-0
Conductor cross-section, max.
6 mm
Conductor cross-section, min.
0.5 mm
Wire connection cross section, finely stranded, max.
6 mm
Wire connection cross section, finely stranded, min.
0.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm
Wire cross-section, solid, max.
6 mm
Wire cross-section, solid, min.
0.5 mm
Rated current (UR) Wire connection cross section AWG: AWG 10
35 A
Rated current (UR) Wire connection cross section AWG: AWG 12
8 A
Rated current (UR) Wire connection cross section AWG: AWG 14
8 A
Rated current (UR) Wire connection cross section AWG: AWG 16
8 A
Rated current (UR) Wire connection cross section AWG: AWG 18
8 A
Rated current (UR) Wire connection cross section AWG: AWG 20
8 A
Rated current (cUR) Wire connection cross section AWG: AWG 10
8 A
Rated current (cUR) Wire connection cross section AWG: AWG 12
8 A
Rated current (cUR) Wire connection cross section AWG: AWG 14
8 A
Rated current (cUR) Wire connection cross section AWG: AWG 16
8 A
Rated current (cUR) Wire connection cross section AWG: AWG 18
8 A
Rated current (cUR) Wire connection cross section AWG: AWG 20
8 A
Min. torque for main contact
1.2 Nm
Max. torque for main contact
1.5 Nm
Stripping length, rated connection
11 mm
Volume resistance
2 m
Plugging cycles, gold
500
Plugging cycles, silver
500
Tightening torque, min. PE connection
2 Nm
Tightening torque, max. PE connection
2.5 Nm
Wire cross section, AWG (PE), min.
AWG 20
Wire cross section, AWG (PE), max.
AWG 10
Stripping length PE connection
10 mm
Rated cross-section
6 mm
Blade size, slotted (PE connection)
1 x 5.5
Fixing screw
M 5
Connection type PE
Screw connection
Blade size
size PZ1
Blade size, slotted (screw connection)
SD 0.8 x 4.0
Clamping screw
M 4
Insulating material group
IIIa
Low smoke acc. DIN EN 45545-2
Yes
Heavy Duty Connectors
Heavy Duty Connector Inserts, Modules
Termination Style
Screw
Manufacturer
Weidmüller
Voltage Rating
400V
Current Rating (Amps)
35A
Operating Temperature
-40 C ~ 125 C
Part Status
Active
Housing Material
Polycarbonate (PC), Glass Filled
Connector Type
Insert
Contact Material
Copper
Gender
Female
Contact Finish
Silver
Number of Positions
6+Ground
Material Flammability Rating
UL94 V-0
Size
6
Amps
35
Mounting
Device
Volts DC
400
Volts AC
400
Brand
Weidmüller
MPN
1498900000
GTIN
4008190071417
UPC
4008190071417
eBay Product ID (ePID)
1718533782
Number of Pins
6
Compatible Mounting Type
Wire
Connector Color
Beige
Connector Style
Pin
Connection Type
Screw Connection
