Description

Product Description

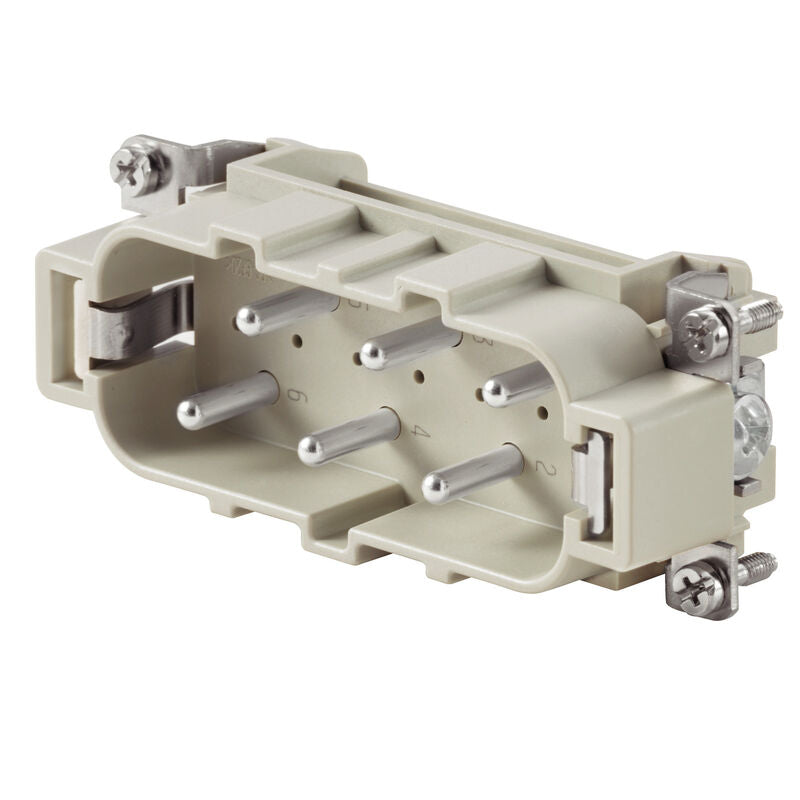

The Weidmuller 1498700000 HDC HSB 6 MS is a male HDC insert designed for heavy-duty power connections. It supports 400 V and 35 A, featuring a screw connection and an installation size of 6. This insert ensures reliable electrical function within a temperature range of -40°C to +125°C.

  • Male insert with 6+Ground positions
  • Screw termination style for secure connections
  • Constructed with PC glass-fiber reinforced insulating material

Product Highlights

The Weidmuller HDC HSB 6 MS insert provides a robust and reliable solution for power and signal transmission in demanding industrial environments.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1498700000
  • Country of Origin: CN
Technical Specifications
Series
Rockstar HSB
Type
Rectangular
Installation size
6
Rated voltage (DIN EN 61984)
400 V
Rated current (DIN EN 61984)
35 A
Number of poles
6
Type of connection
Screw connection
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage according to UL/CSA
600 V AC/DC
Pollution severity
3
Basic material
Copper alloy
Surface finish
Silver passivated
UL 94 flammability rating
V-0
Conductor cross-section
6 mm
Rated current (UR) Wire connection cross section AWG: AWG 10
35 A
Rated current (cUR) Wire connection cross section AWG: AWG 10
8 A
Wire cross-section, solid, max.
6 mm
Wire cross-section, solid, min.
0.5 mm
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 20
Wire connection cross section, finely stranded, max.
6 mm
Wire connection cross section, finely stranded, min.
0.5 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0.5 mm
Stripping length, rated connection
11 mm
Min. torque for main contact
1.2 Nm
Max. torque for main contact
1.5 Nm
Blade size, slotted (screw connection)
SD 0.8 x 4.0
Blade size
size PZ1
Clamping screw
M 4
Insulating material group
IIIa
Low smoke acc. DIN EN 45545-2
Yes
Plugging cycles, gold
500
Plugging cycles, silver
500
Connection type PE
Screw connection
Rated cross-section
6 mm
Stripping length PE connection
10 mm
Fixing screw
M 5
Tightening torque, min. PE connection
2 Nm
Tightening torque, max. PE connection
2.5 Nm
Wire cross section, AWG (PE), max.
AWG 10
Wire cross section, AWG (PE), min.
AWG 20
Blade size, slotted (PE connection)
1 x 5.5
Limit temperature
-40 C ... 125 C
RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1 Potassium perfluorobutane sulfonate 29420-49-3
SCIP
e98b2b24-ba23-41bf-8d19-0dda3647412f
Chemical resistance: Substance
Outdoor use
Chemical resistance
Conditionally resistant
Category
Connectors, Interconnects
Heavy Duty Connectors
Heavy Duty Connector Inserts, Modules
Termination Style
Screw
Manufacturer
Weidm ller
Voltage Rating
400V
Current Rating (Amps)
35A
Packaging
Bulk
Operating Temperature
-40 to 125 C
Part Status
Active
Housing Material
Polycarbonate (PC), Glass Filled
Connector Type
Insert
Contact Material
Copper Alloy
Gender
Male
Contact Finish
Silver
Number of Positions
6+Ground
Material Flammability Rating
UL94 V-0
Connector Mounting
Cable Mount
No. of Contacts
6Contacts
No. of Rows
2Rows
Contact Gender
Pin
Contact Termination Type
Screw
Connector Shell Size
6
Contact Plating
Silver Plated Contacts
SVHC
Lead
Number of Contacts
6Signal/1Ground
Maximum Voltage Rating
400 V
Maximum Current Rating
35 A
Mounting
Panel Mount
Body Orientation
Straight
Pitch
N/A
Termination Method
Screw
RoHS
Yes
Height
34 mm
Length
84.5 mm
Width
34 mm
Environmental Classification
Approvals
Flammability Rating
UL94 V-0
Lead Free
Lead Free
