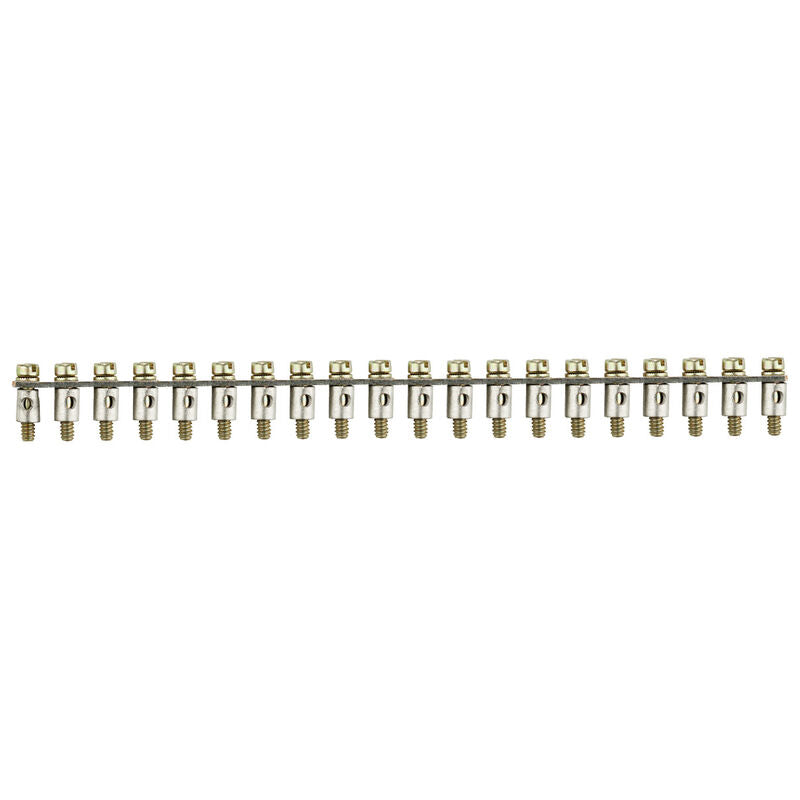

Weidmuller 1399800000 Q 20 DLI 20 Poles

Product Description

The Weidmuller 1399800000 Q 20 DLI is a cross-connector designed for terminal blocks. When screwed in, it provides a reliable connection with a nominal current of 24 A. It features 20 poles and a pitch of 5.00 mm. Suitable for various electrical applications requiring secure cross-connections.

• 24 A nominal current
• Features 20 poles
• 5.00 mm pitch

Product Highlights

Cross-connector for terminal blocks with 20 poles, 24 A, and 5.00 mm pitch.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1399800000

Technical Specifications

• Version: for cross-connection link
• Order No.: 1399800000
• Type: Q 20 DLI
• GTIN (EAN): 4008190070670
• Depth: 8 mm
• Depth (inches): 0.315 inch
• Height: 4 mm
• Height (inches): 0.157 inch
• Width: 120.9 mm
• Width (inches): 4.76 inch
• Net weight: 13.85 g
• Storage temperature: -25 °C...55 °C
• Ambient temperature: -5 °C 40 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: CuSn
• Colour: grey
• Explosion-tested version: No
• Installation advice: Direct mounting
• Type of fixing: when screwed in
• Pitch in mm (P): 5 mm
• Number of poles: 20
• Rated voltage: 400 V
• Nominal current: 24 A
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• ETIM 10.0: EC000489
• ECLASS 14.0: 27-25-03-03
• ECLASS 15.0: 27-25-03-03
• MPN: 1399800000
• Model: Q 20 DLI
• Brand: WEIDMULLER
• UPC: Does Not Apply
• Manufacturer: WEIDMULLER
• Manufacturer Part No: 1399800000
• Newark Part No.: 99F5104
• Product Range: SAK Series
• Also Known As: Q20 DLD/DLI
• For Use With: Weidmuller SAK Series Terminal Blocks
• Accessory Type: Cross Connector
• SVHC: No SVHC (23-Jan-2024)
• US ECCN: EAR99
• EU ECCN: Unknown
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
