Weidmuller 1209700000 hdc 16b alu

Product Description

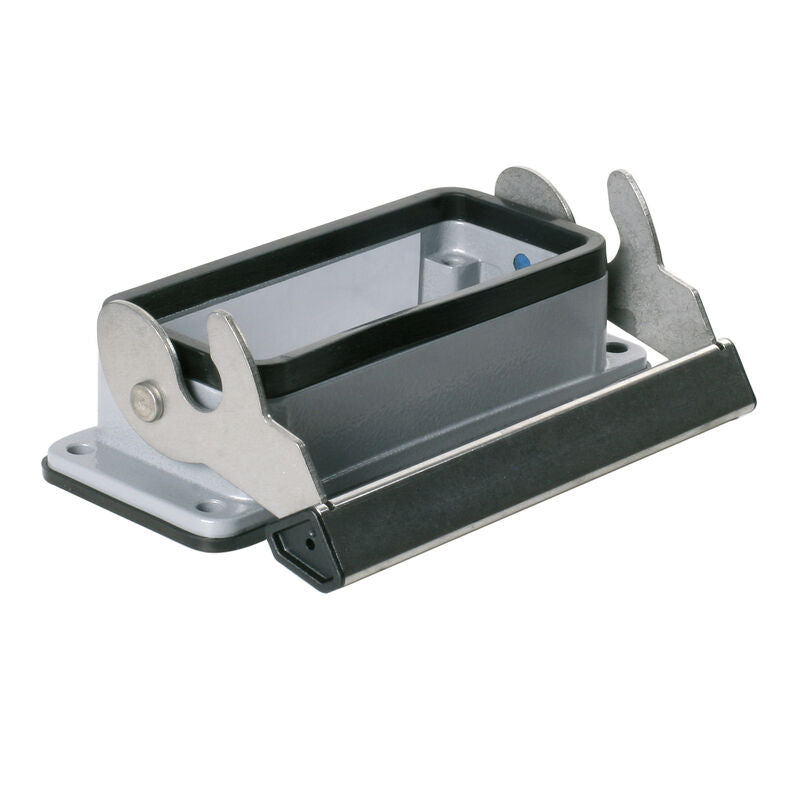

The Weidmuller 1209700000 HDC 16B ALU is a heavy-duty rectangular housing from the RockStar series. This panel-mount connector features an end-locking clamp and is size SZ 6. Constructed from aluminum with a powder-coated finish, it provides IP65 protection, ensuring it is dust-tight and water-resistant.

• Integrated safety housing interlock system
• Laser marking for easy identification
• Made of die-cast aluminum

Product Highlights

The Weidmuller 1209700000 is ideal for industrial applications requiring robust and reliable connections. Its durable construction and secure locking mechanism ensure long-lasting performance in demanding environments.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1209700000

Technical Specifications

• Order No.: 1209700000
• Type: Bulkhead (feed-through)
• GTIN (EAN): 4008190000134
• Version: HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Bulkhead housing, End-locking clamp, lower side, Standard, Size of cable entries: none
• Height: 29 mm
• Height (inches): 1.142 inch
• Width: 74 mm
• Width (inches): 2.913 inch
• Mounting dimension - height: 32 mm
• Mounting dimension - width: 103 mm
• Net weight: 151 g
• Limit temperature: -40 C ... 125 C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: Potassium perfluorobutane sulfonate 29420-49-3
• SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f
• Cable entry: No
• Height of base B1: 5 mm
• Height of housing B: 30 mm
• Hole pitch length A2: 103 mm
• Total length housing: 93.3 mm
• Width base C1: 47 mm
• Width housing C: 43 mm
• Protection degree: IP65
• Surface finish: Powder coating
• BG: 6
• Clamp version: End-locking clamp
• Colour (RAL): RAL 7035
• Cover: without cover
• Design: Standard
• Design of housing: Bulkhead housing
• Design of locking system: End-locking clamp, lower side
• Installation size: 6
• Number of cable entry sideways: 0
• Number of cable glands: 0
• Sealing: NBR
• Size of cable entries: none
• Suitable for ModuPlug: Yes
• Top part/bottom part/lid: lower part
• Brand: Weidmuller
• Part Number #: 1209700000
• Connector Size: SZ 6
• Connector Type: Base - Panel Mount
• Series: RockStar?
• Suitable For Use With: HDC 16B Insert and Base
• Temperature Rating: -40 to 125 deg C
• Manufacturer Name: Weidmuller
• UNSPSC: 32151901
• Application: Industrial
• Standards: UL E92202|cURus Listed|RoHS Compliant
• Heavy Duty Connectors: Heavy Duty Connector Housings, Hoods, Bases
• Lock Location: Locking Clip (1) on Base Bottom
• Housing Color: Gray
• Housing Material: Aluminum, Die Cast
• Style: Bottom Entry
• Housing Finish: Powder Coated
• Number of Positions: 16
• Mounting Type: Panel
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Part Status: Active
