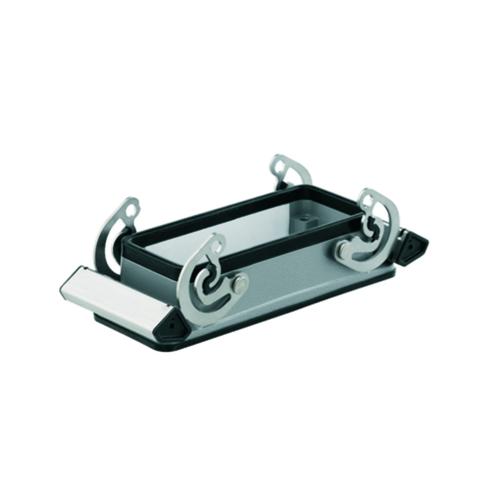

Weidmuller 1208600000 HDC 16B ABU

Product Description

The Weidmuller 1208600000 HDC 16B ABU is a heavy-duty power connector designed for creating flexible designs. These RockStar connectors transmit high-rated currents (up to 35A) and voltages (up to 830V) in a -40°C to +125°C temperature range. The connector housings are die-cast aluminum and offer protection against dirt, moisture, and mechanical stress.

• Installation size: 6
• Protection degree: IP65 in plugged condition
• Bulkhead housing with side-locking clamp

Product Highlights

Weidmuller RockStar heavy-duty connectors provide reliable electrical function in demanding industrial environments.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1208600000

Technical Specifications

• Version: HDC enclosures, Installation size: 6, Protection degree: IP65, in plugged condition, Bulkhead housing, Side-locking clamp on lower side, Side-locking clamp not replaceable, Standard, Size of cable entries: none
• Order No.: 1208600000
• Type: Bulkhead (feed-through)
• GTIN (EAN): 4008190881351
• Height: 29.3 mm
• Height (inches): 1.154 inch
• Width: 55 mm
• Width (inches): 2.165 inch
• Mounting dimension - height: 32 mm
• Mounting dimension - width: 103 mm
• Net weight: 159 g
• Limit temperature: -40 °C ... 125 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: Potassium perfluorobutane sulfonate 29420-49-3
• SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f
• Chemical resistance: Conditionally resistant
• Cable entry: No
• Height of base B1: 5.3 mm
• Height of housing B: 29.5 mm
• Hole pitch length A2: 103 mm
• Total length housing: 93.3 mm
• Width base C1: 47 mm
• Width housing C: 43 mm
• Protection degree: IP65
• Surface finish: Powder coating
• BG: 6
• Clamp version: Side-locking clamp
• Colour (RAL): RAL 7035
• Cover: without cover
• Design: Standard
• Design of housing: Bulkhead housing
• Design of locking system: Side-locking clamp on lower side
• Side-locking clamp not replaceable: Side-locking clamp not replaceable
• Installation size: 6
• Number of cable entry sideways: 0
• Number of cable glands: 0
• Sealing: NBR
• Size of cable entries: none
• Suitable for ModuPlug: Yes
• Top part/bottom part/lid: lower part
• ETIM 8.0: EC000437
• ETIM 9.0: EC000437
• ETIM 10.0: EC000437
• ECLASS 14.0: 27-44-02-02
• ECLASS 15.0: 27-44-02-02
• Connector protection: IP65
• Manufacturer: Weidmuller
• Component: HDC Enclosures
• Connector Size: SZ 6
• Connector Type: End Locking Clamp
• Dimensions: 5.362 in L x 2.165 in W x 1.142 in H
• Series: RockStar?
• Suitable For Use With: HDC 16B Insert and Base
• Manufacturer Name: Weidmuller
• UNSPSC: 32151901
• Application: Industrial
• Standards: UL E92202|cURus Listed|RoHS Compliant
• Part Number #: 1208600000
• SKU #: 42146
