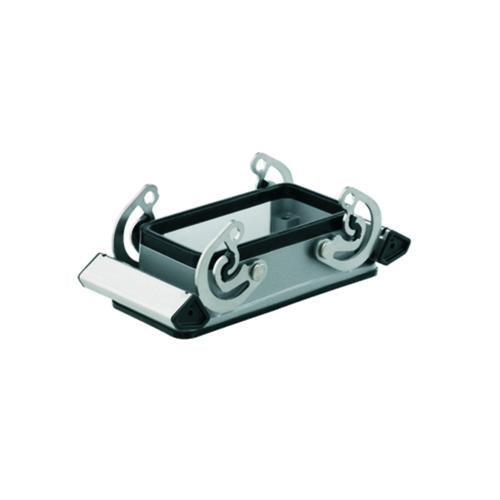

Weidmuller 1205000000 Conn Base Bottom Entry Sz4

Product Description

The Weidmuller 1205000000 is a Conn Base Bottom Entry SZ4. These RockStar Heavy-Duty Connectors offer design flexibility. HDC components range from 350mA to 870A and 500Kb to 10 Gigabits, transmitting high-rated currents (up to 35A) and voltages (up to 830V) in a -40°C to +125°C temperature range. Connector housings are die-cast aluminum.

• Installation size: 4
• Protection degree: IP65, in plugged condition
• Bulkhead housing

Product Highlights

The Weidmuller 1205000000 Conn Base is a bottom entry connector with an IP65 rating, ideal for industrial applications requiring robust and reliable connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1205000000

Technical Specifications

• Order No.: 1205000000
• Type: Bulkhead (feed-through)
• GTIN (EAN): 4008190872960
• Height: 29.3 mm
• Height (inches): 1.154 inch
• Width: 55 mm
• Width (inches): 2.165 inch
• Mounting dimension - height: 32 mm
• Mounting dimension - width: 83 mm
• Net weight: 146 g
• Limit temperature: -40 C ... 125 C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: Potassium perfluorobutane sulfonate 29420-49-3
• SCIP: e98b2b24-ba23-41bf-8d19-0dda3647412f
• Chemical resistance: Conditionally resistant
• Cable entry: No
• Height of base B1: 5.3 mm
• Height of housing B: 30 mm
• Hole pitch length A2: 83 mm
• Total length housing: 73 mm
• Width base C1: 47 mm
• Width housing C: 43 mm
• Protection degree: IP65
• Surface finish: Powder coating
• Version: BG 4
• Clamp version: Side-locking clamp
• Cover: without cover
• Design: Standard
• Design of housing: Bulkhead housing
• Design of locking system: Side-locking clamp on lower side
• Side-locking clamp not replaceable: Side-locking clamp not replaceable
• Installation size: 4
• Number of cable entry sideways: 0
• Number of cable glands: 0
• Sealing: NBR
• Size of cable entries: none
• Suitable for ModuPlug: Yes
• Top part/bottom part/lid: lower part
• ETIM 8.0: EC000437
• ETIM 9.0: EC000437
• ETIM 10.0: EC000437
• ECLASS 14.0: 27-44-02-02
• ECLASS 15.0: 27-44-02-02
• Category: Connectors, Interconnects
• Heavy Duty Connectors: Heavy Duty Connector Housings, Hoods, Bases
• Size: 4
• Manufacturer: Weidm ller
• Lock Location: Locking Clip (2) on Base Bottom
• Series: RockStar
• Housing Color: Gray
• Ingress Protection: IP65 - Dust Tight, Water Resistant
• Connector Type: Base - Panel Mount
• Housing Material: Aluminum, Die Cast
• Style: Bottom Entry
• Housing Finish: Powder Coated
• Component: HDC Enclosures
• Brand: WEIDMULLER
• Connector protection: IP65
