Weidmuller 1156570000 Term Block Hdr 3Pos 7.62mm

Product Description

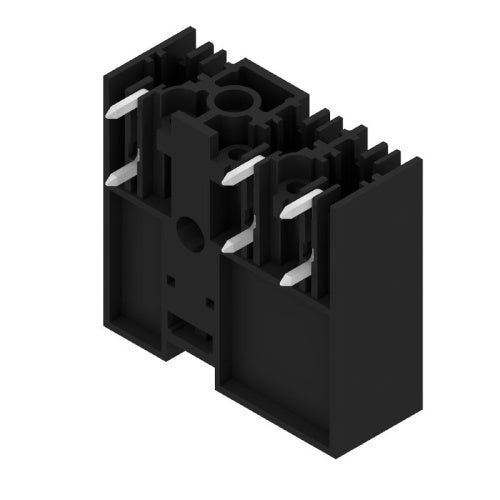

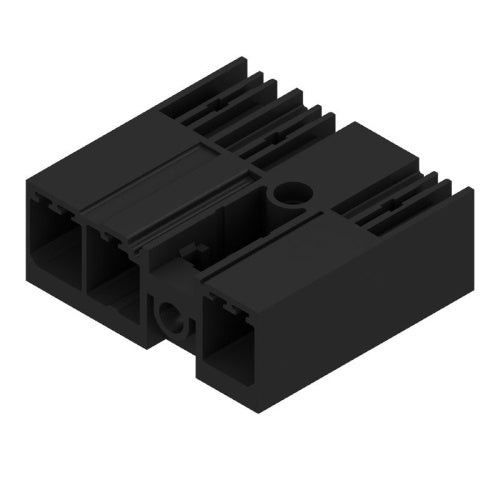

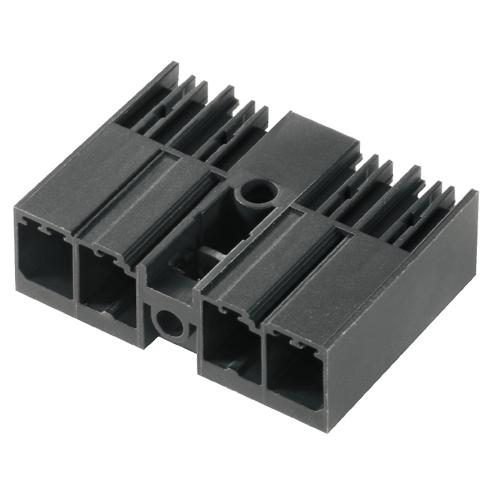

The Weidmuller 1156570000 is a 3 position terminal block header with male pins and shrouded sides. It features a 0.300" (7.62mm) pitch and a 90°, right-angle through-hole design. This header is suitable for various connector and interconnect applications.

• Header, Male Pins, Shrouded (4 Side)
• Latch Holder
• 90° male header with soldered flange fastening with 7.62 pitch for 400 V IT power networks according to IEC 61800-5-1.

Product Highlights

This terminal block header provides a reliable connection with its shrouded design and right-angle configuration.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1156570000

Technical Specifications

• Category: Connectors, Interconnects
• Terminal Blocks: Headers, Plugs and Sockets
• Voltage - IEC: 1 kV
• Manufacturer: Weidm ller
• Current - UL: 40.5 A
• Series: Omnimate SV
• Voltage - UL: 300 V
• Packaging: Bulk
• Color: Black
• Part Status: Active
• Operating Temperature: -50 C ~ 130 C
• Type: Header, Male Pins, Shrouded (4 Side)
• Contact Mating Finish: Tin
• Number of Positions: 3
• Features: Latch Holder
• Positions Per Level: 3
• Material Flammability Rating: UL94 V-0
• Number of Levels: 1
• Ingress Protection: IP20
• Pitch: 7.62 mm
• Contact Material: Copper Alloy
• Header Orientation: 90 , Right Angle
• Housing Material: Polyamide (PA), Nylon, Glass Filled
• Termination Style: Solder
• Contact Tail Length: 0.138" (3.50mm)
• Mounting Type: Through Hole
• Insulation Height: 0.449" (11.40mm)
• Current - IEC: 41A
• Housing Color: Black
• Insulation Material: Nylon
• Number of Pins: 3
• Current: 41 A
• Number of Poles: 3
• Number of Rows: 1
• Orientation: Horizontal
• Approvals: cURus
• Flammability Rating: UL94 V-0
• REACH SVHC: Yes
• RoHS: Compliant

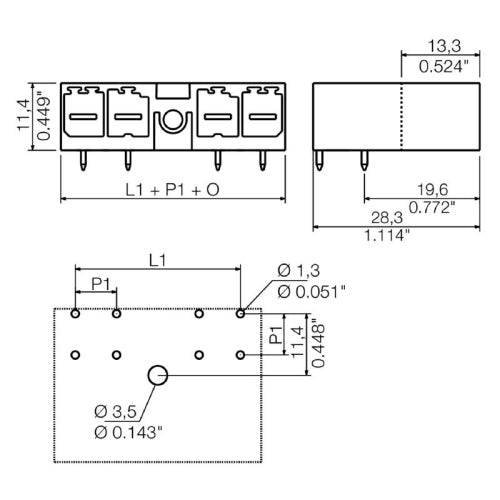

• Depth: 28.3 mm
• Height: 14.9 mm
• Hole Diameter: 1.3 mm
• Width: 30.48 mm
• Connector Voltage: 300 Volt
• Component: PCB Connector
• Sub Component: Male Header
• Connector protection: IP20
