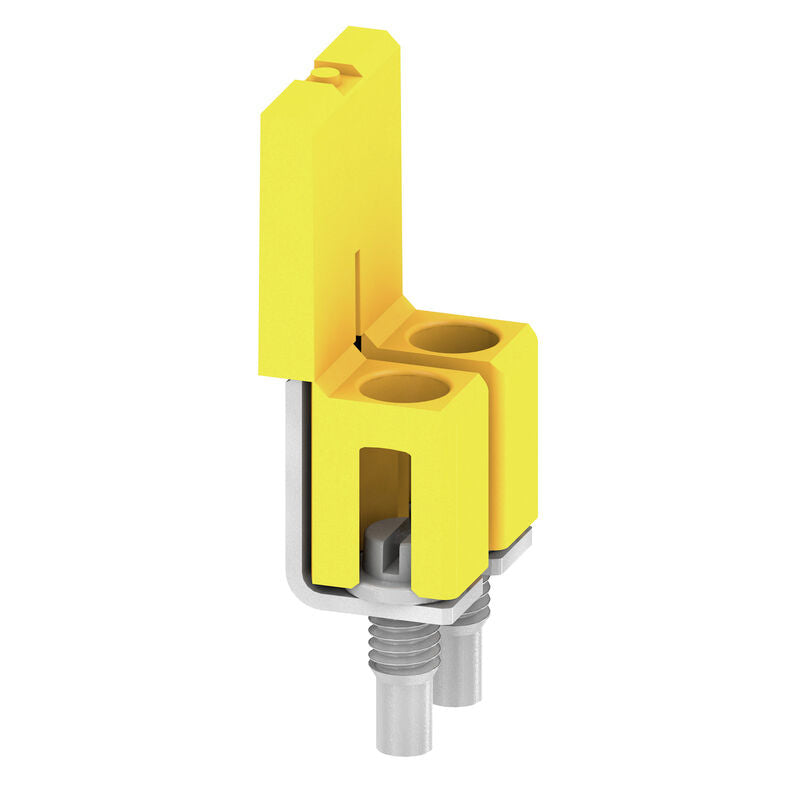

Weidmuller 1053660000 wqv 2.5/2p scr jmpr 2-Pole

Product Description

The Weidmuller 1053660000 WQV 2.5/2P Scr Jmpr is a 2-pole cross-connector designed for terminal blocks. It features a screw-in type of fixing and is suitable for direct mounting. The jumper has a rated voltage of 400 V and a nominal current of 32 A. It is constructed from PA 66 material and has a flammability rating of V-0.

• Cross-connector for terminal blocks
• Screw-in type of fixing
• Rated for 400V and 32A

Product Highlights

The Weidmuller WQV 2.5/2 is a 2-pole cross-connector with screw-in fixing, suitable for terminal blocks. It supports 400V and 32A.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 1053660000
• Country of Origin: Germany

Technical Specifications

• Manufacturer: WEIDMULLER
• Order No.: 1053660000
• Type: Terminal Block, Cross Connection
• GTIN (EAN): 4008190031121
• Pitch in mm (P): 5.1 mm
• Number of poles: 2
• Rated voltage: 400 V
• Nominal current: 32 A
• Storage temperature: -25 00b0C...55 00b0C
• Ambient temperature: -60 00b0C 202685 00b0C
• Continuous operating temp., min.: -60 00b0C
• Continuous operating temp., max.: 130 00b0C
• ROHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: PA 66
• UL 94 flammability rating: V-0
• Explosion-tested version: No
• Installation advice: Direct mounting
• Type of fixing: when screwed in
• Pitch: 0.201" (5.10mm)
• Series: W
• Style: Screw In
• Packaging: Bulk
• For Use With/Related Products: W Series
• Part Status: Active
• Poles: 2
• Mounting: Device
