Weidmuller 1021330000 HDC 06B KLU 1M25G (Size 3)

Product Description

Weidmuller 1021330000 is an HDC coupling housing (HDC 06B KLU 1M25G) for rectangular heavy-duty connectors, providing IP65 protection in plugged condition. The die-cast alloy enclosure has multi-layered surface sealing, powder-coated finish and NBR sealing, with a stainless steel interlock and end-locking clamp on the lower side. It accepts a single M25 cable entry and measures 55 mm H x 66 mm W x 60 mm L, operating from -40 C to 125 C.

• IP65 protection in plugged condition; die-cast alloy housing with multi-layered surface sealing and powder coating
• Coupling housing with end-locking clamp (lower side), stainless steel interlock and patented spring interlock; laser marking for identification
• Single M25 cable entry (internal thread M25); dimensions 55 mm x 66 mm x 60 mm; net weight 150 g; temperature range -40 C to 125 C

Product Highlights

Coupling housing size 3 for rectangular connectors with IP65 protection, single M25 entry, die-cast alloy construction and NBR sealing.

Product Information

Standard Information

• Brand: WEIDMULLER
• Manufacturer Part Number: 1021330000

Technical Specifications

• Manufacturer: Weidmuller
• Manufacturer Part Number: 1021330000
• Model: HDC 06B KLU 1M25G
• Type: Coupling housing
• Installation Size: 3
• Ingress Protection: IP65 (in plugged condition)
• Housing Material: Special die-cast alloy (aluminum die cast)
• Surface Finish: Powder coating; multi-layered surface sealing
• Sealing Material: NBR
• Locking System: End-locking clamp, lower side; stainless steel interlock with patented spring interlock
• Cable Entry Size: 1 x M25
• Internal Thread: M25
• Number of Cable Entries Top: 1
• Number of Cable Entries Sideways: 0
• Number of Cable Glands: 0
• Connector Type: Hood / coupling connector (top or bottom entry) for cable-to-cable connections
• Series: RockStar

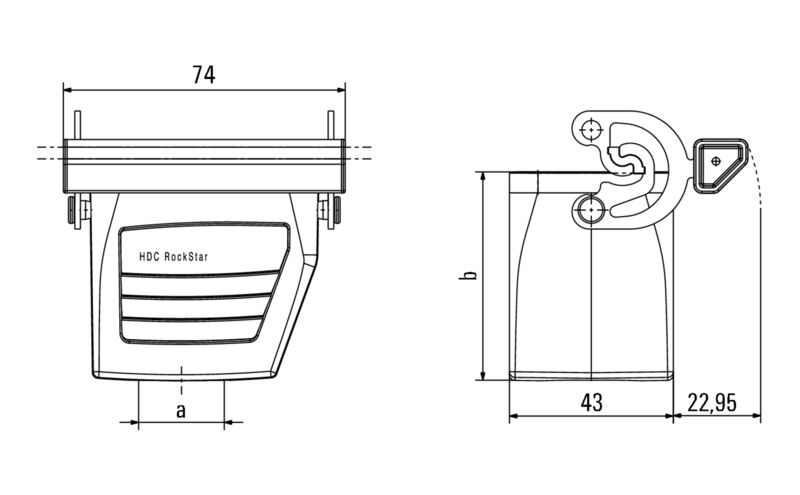

• Dimensions (H x W x L): 55 mm x 66 mm x 60 mm
• Width housing C: 43 mm
• Net Weight: 150 g
• Operating Temperature Range: -40 C to 125 C
• Tightening Torque: 1.2 Nm
• Color (RAL): RAL 7035
• Approvals / Certifications: cURus E92202
• GTIN / EAN: 4032248734948
• Application: Rectangular heavy-duty connectors; cable-to-cable connections
