Weidmuller Weidmuller 1019100000 wpe 16n
Weidmuller Weidmuller 1019100000 wpe 16n
Weidmuller Weidmuller 1019100000 wpe 16n
Weidmuller Weidmuller 1019100000 wpe 16n

Weidmuller 1019100000 wpe 16n

Brand: Weidmuller
SKU: 1019100000
Availability: In Stock

Ships same day if ordered by 12 pm
$17.57
$17.57
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

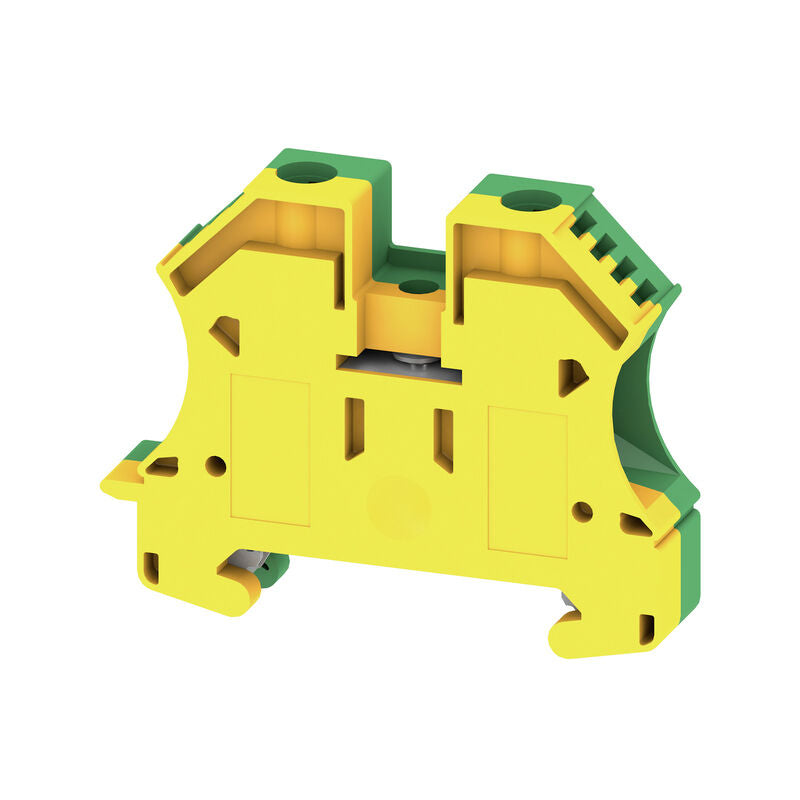

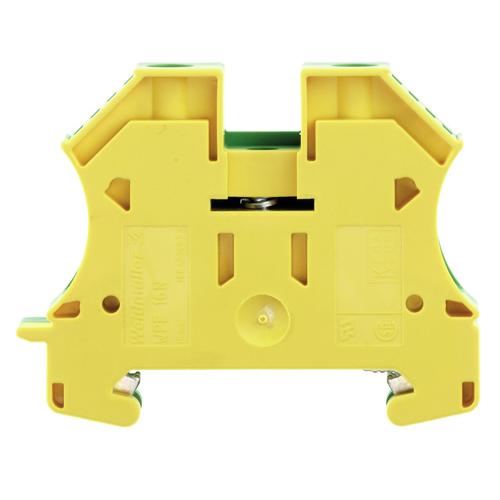

The Weidmuller 1019100000 WPE 16N is a PE terminal with screw connection. This green/yellow terminal block supports 16 mm 2, 690 V, and features 2 connections and 1 level. Constructed from Wemid material with V-0 flammability rating, it mounts on TS 35 rails.

  • Screw connection type
  • Green/yellow color
  • Suitable for joining and connecting conductors

Product Highlights

The Weidmuller WPE 16N PE terminal block ensures reliable grounding with secure screw connections and durable construction.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1019100000
  • Country of Origin: China
Technical Specifications
Version
Screw connection
Order No.
1019100000
Type
WPE 16N
GTIN (EAN)
4008190273248
Depth
46.5 mm
Depth (inches)
1.831 inch
Depth including DIN rail
47 mm
Height
56 mm
Height (inches)
2.205 inch
Width
12 mm
Width (inches)
0.472 inch
Net weight
33.98 g
Storage temperature
-25 °C...55 °C
Ambient temperature
-50 °C 85 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
130 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Wemid
Colour
Green/yellow
UL 94 flammability rating
V-0
With PE connection
in closed state
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
Yes
Explosion-tested version
No
Installation advice
when screwed in
Locking
for screw fixing
Number of similar terminals
1
Open sides
closed
Type of mounting
when screwed in
Connection type, additional connection
Screw connection
Blade size
1.0 x 5.5 mm
Clamping range, max.
25 mm 2
Clamping range, min.
1.5 mm 2
Clamping screw
M 4
Connection cross-section, finely stranded, min.
1.5 mm 2
Connection cross-section, stranded, max.
25 mm 2
Connection cross-section, stranded, min.
1.5 mm 2
Connection direction
on side
Gauge to IEC 60947-1
B7
Number of connections
2
Stripping length
12 mm
Tightening torque, max.
2.4 Nm
Tightening torque, min.
1.2 Nm
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 6
Wire connection cross section AWG, min.
AWG 14
Wire connection cross section, finely stranded, max.
16 mm 2
Wire connection cross section, finely stranded, min.
1.5 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
16 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1.5 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
16 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
1.5 mm 2
Wire connection cross-section, solid core, max.
16 mm 2
Wire connection cross-section, solid core, min.
1.5 mm 2
Certificate No. (CSA)
200039-1057876
Wire cross section max. (CSA)
6 AWG
Wire cross section min. (CSA)
14 AWG
TS 35 offset
32 mm
Standards
IEC 60947-7-2
Rated cross-section
16 mm 2
Rated voltage to adjoining terminal
690 V
Rated DC voltage
690 V
Volume resistance according to IEC 60947-7-x
0.42 mΩ
Rated impulse withstand voltage to adjacent terminal
6 kV
Power loss in accordance with IEC 60947-7-x
2.43 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
6 AWG
Conductor size Factory wiring min. (UR)
14 AWG
Conductor size Field wiring max. (UR)
6 AWG
Conductor size Field wiring min. (UR)
14 AWG
ETIM 8.0
EC000901
ETIM 9.0
EC000901
ETIM 10.0
EC000901
ECLASS 14.0
27-25-01-03
ECLASS 15.0
27-25-01-03
Brand
Weidmuller
UPC
Does not apply
Country of Origin
China
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Terminal - Width
12.0mm
Manufacturer
Weidm ller
Termination Style
Screw
Series
W
Wire Gauge or Range - AWG
6-14 AWG
Packaging
Bulk
Wire Gauge or Range - mm 2
1.5-25mm 2
Part Status
Active
Material - Insulation
Thermoplastic, Wemid
Number of Positions
2
Material Flammability Rating
UL94 V-0
Stripping Length
12mm
RoHS Status
ROHS3 Compliant
ECCN
EAR99
Moisture Sensitivity Level (MSL)
Not Applicable
HTSUS
8536.69.8000
REACH Status
REACH Unaffected
Terminal Block Width
12 mm
Terminal Block Connection Method
Screw Connection
Terminal Block Component Color
Green/Yellow
Component
Terminal Block
Sub Component
PE Terminal
