Weidmuller 1010300000 WPE 10

Brand: Weidmuller
SKU: 1010300000
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

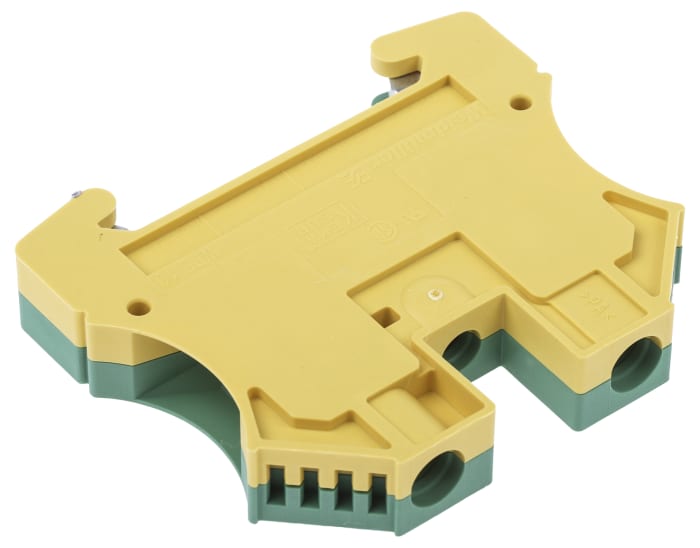

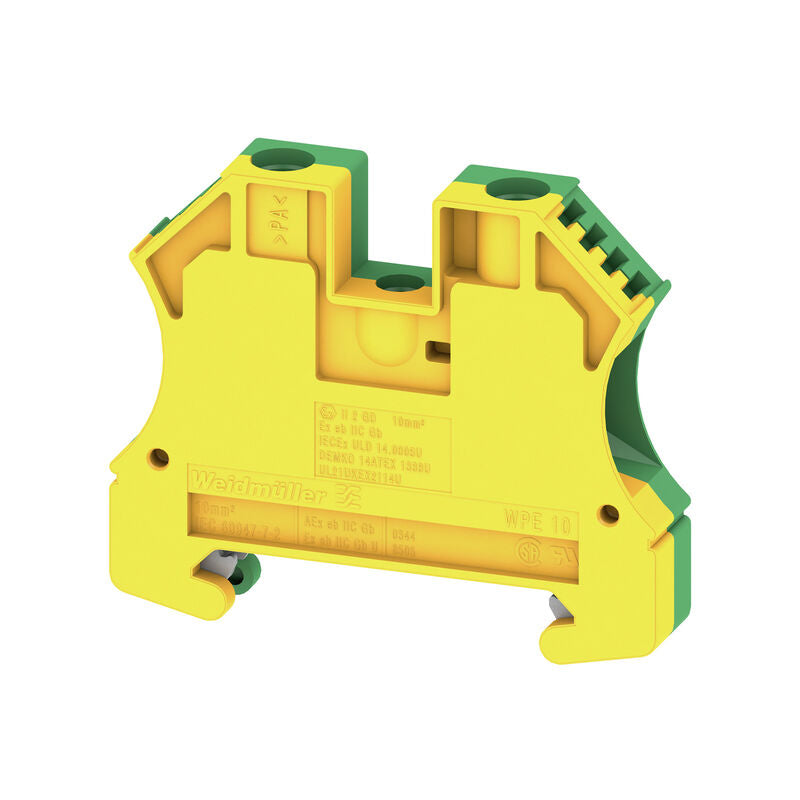

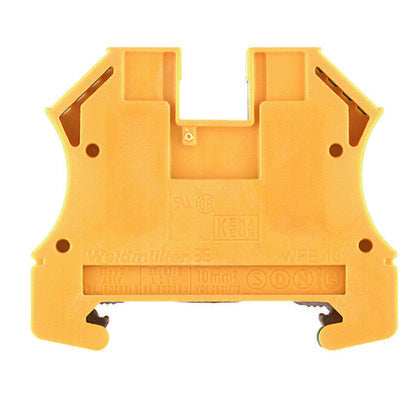

The Weidmuller WPE 10 (MPN: 1010300000) is a PE terminal with screw connections, designed for grounding applications. It accommodates wire sizes from 16 AWG to 6 AWG. The terminal block provides a reliable and secure connection for control panels and rails.

  • Holds different wire sizes
  • Protective insulation
  • Screw mounted connection

Product Highlights

This terminal block is ideal for creating secure grounding connections in a variety of electrical applications.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 1010300000
  • Country of Origin: Romania
Technical Specifications
Order No.
1010300000
Type
Ground, Earth
GTIN (EAN)
4008190031251
Depth
46.5 mm
Depth (inches)
1.831 inch
Depth including DIN rail
47 mm
Height
47mm
Height (inches)
2.205 inch
Width
9.9 mm
Width (inches)
0.39 inch
Net weight
30.28 g
Storage temperature
-25 \nC...55 \nC
Ambient temperature
-5 \nC 40 \nC
Continuous operating temp., min.
-60 \nC
Continuous operating temp., max.
130 \nC
Basic material
Wemid
Colour
Green/yellow
UL 94 flammability rating
V-0
Certificate No. (ATEX)
DEMKO14ATEX1338U
Certificate No. (IECEX)
IECEXULD14.0005U
Wire cross section max. (ATEX)
10 mm 2
Wire cross section max. (IECEX)
10 mm 2
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D
Screw connection
Yes
With PE connection
in closed state
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No
Explosion-tested version
Yes
Installation advice
when screwed in
Locking
for screw fixing
Number of similar terminals
1
Open sides
closed
Type of mounting
when screwed in
Connection type, additional connection
Screw connection
Blade size
1.0 x 5.5 mm
Clamping range, max.
16 mm 2
Clamping range, min.
1.31 mm 2
Clamping screw
M 4
Connection cross-section, stranded, max.
16 mm 2
Connection cross-section, stranded, min.
1.5 mm 2
Connection direction
on side
Gauge to IEC 60947-1
B6
Number of connections
2
Stripping length
12 mm
Tightening torque, max.
2.4 Nm
Tightening torque, min.
1.2 Nm
Type of connection
Screw connection
Wire connection cross section AWG, max.
AWG 6
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section, finely stranded, max.
16 mm 2
Wire connection cross section, finely stranded, min.
1.5 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
16 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1.5 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
16 mm 2
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
1.5 mm 2
Wire connection cross-section, solid core, max.
16 mm 2
Wire connection cross-section, solid core, min.
1.5 mm 2
Certificate No. (CSA)
200039-1888378
Wire cross section max. (CSA)
6 AWG
Wire cross section min. (CSA)
16 AWG
TS 35 offset
32 mm
Standards
IEC 60947-7-2
Rated cross-section
10 mm 2
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Rated impulse withstand voltage to adjacent terminal
8 kV
Power loss in accordance with IEC 60947-7-x
0 W
Pollution severity
3
Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
6 AWG
Conductor size Factory wiring min. (UR)
16 AWG
Conductor size Field wiring max. (UR)
6 AWG
Conductor size Field wiring min. (UR)
16 AWG
Category
Connectors, Interconnects
Terminal Blocks
Din Rail, Channel
Terminal - Width
9.9mm
Manufacturer
Weidm ller
Termination Style
Screw
Series
W
Wire Gauge or Range - AWG
6-16 AWG
Packaging
Bulk
Wire Gauge or Range - mm 2
1.5-16mm 2
Part Status
Active
Color
Green, Yellow
Material - Insulation
Thermoplastic, Wemid
Number of Positions
2
Material Flammability Rating
UL94 V-0
Earth Block Type
WPE 10
Product Type
Earth Terminal Block
Wire Size
16, 6AWG
Cable CSA
10mm 2
Current
1.2kA
Housing Material
Wemid
Voltage
800V
Length
60mm
Minimum Operating Temperature
-50 C
Maximum Operating Temperature
100 C
Hazardous Area Certification
ATEX
Mounting
DIN Rail
