Weidmuller 0534200000 H10,0/22 EB 10 mm²

Product Description

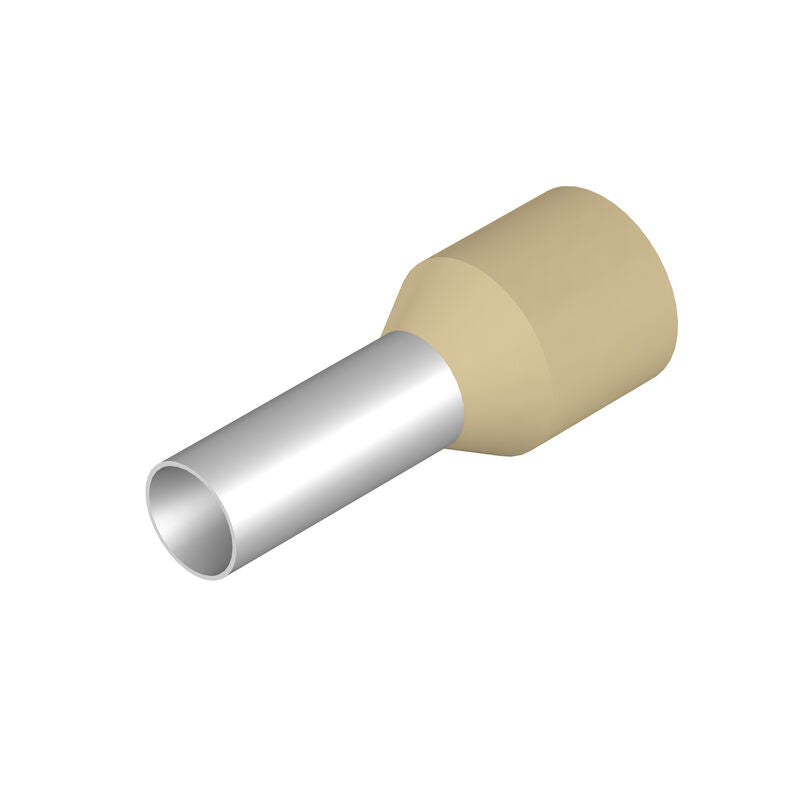

The Weidmuller 0534200000 H10,0/22 EB is a standard wire-end ferrule. It is designed for a conductor cross-section of 10 mm². The ferrule has a stripping length of 15 mm and a contact surface length of 12 mm. Suitable for use in connecting and terminating electrical wires, ensuring secure and reliable connections in various applications.

• Standard wire-end ferrule
• 15 mm stripping length
• 12 mm contact surface length

Product Highlights

This wire-end ferrule ensures secure and reliable wire connections.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 0534200000
• Country of Origin: Germany

Technical Specifications

• Version: Standard
• Collar diameter (D2): 7.6 mm
• Colour code: Weidmueller
• Conductor cross-section: 10 mm
• Contact surface diameter (D1): 4.5 mm
• Contact surface length (L2): 12 mm
• L1 in mm: 22 mm
• Metal sleeve thickness (S1): 0.2 mm
• Plastic collar thickness (S2): 0.4 mm
• Stripping length: 15 mm
• Wire connection cross section AWG, max.: AWG 8
• Category: Connectors, Interconnects
• Terminal Blocks: Terminal Block Accessories
• Terminal Block Wire Ferrules: Insulated
• Insulation: Weidmuller
• Type: Ferrule
• Contact Material: Copper, Tin
• Material: Brass
• Wire/Cable Gauge: 8 AWG
• Wire Gauge (Min): 7 AWG
• REACH SVHC: Yes
• RoHS: Compliant
