Weidmuller 0431300000 G 20/5.00A/F 5 A

Product Description

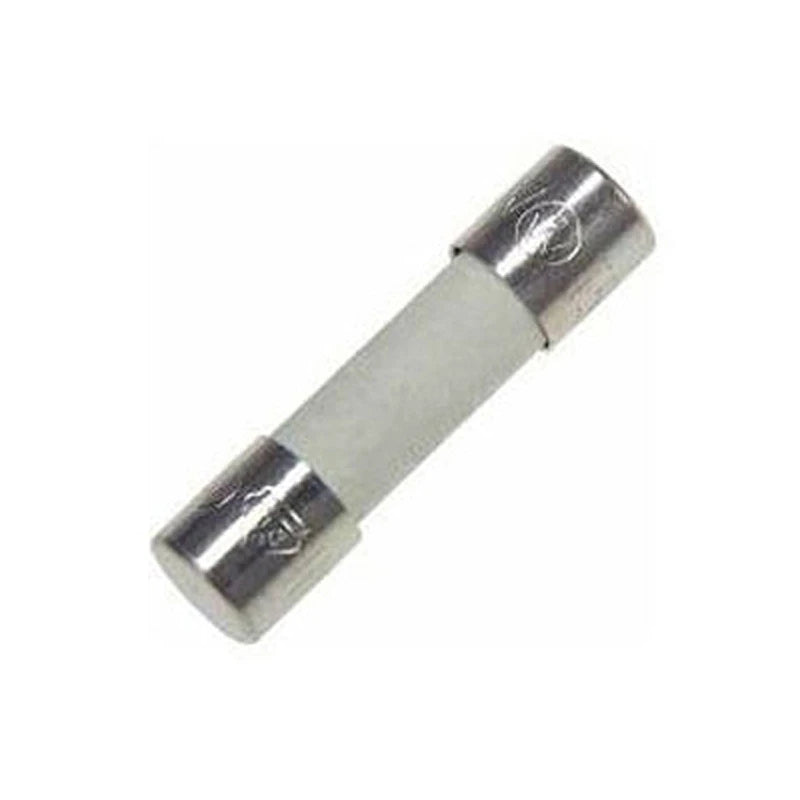

The Weidmuller 0431300000 G 20/5.00A/F is a 5A fast blow cartridge fuse. This miniature, quick-acting fuse conforms to IEC 60127-2 and is designed for diverse applications. It has a rated voltage of 250V AC.

• Current Rating: 5A
• Voltage Rating: 250V AC
• Conforms to IEC 60127-2

Product Highlights

Miniature, quick-acting 5A cartridge fuse with a 250V AC rating.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 0431300000
• Country of Origin: DE

Technical Specifications

• Version: Fuse accessories
• Order No.: 0431300000
• Type: G 20/5.00A/F
• GTIN (EAN): 4008190185381
• Depth: 5 mm
• Depth (inches): 0.197 inch
• Height: 20 mm
• Height (inches): 0.787 inch
• Width: 5 mm
• Width (inches): 0.197 inch
• Net weight: 1.05 g
• Ambient temperature: -5 °C…40 °C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Colour: Light Grey
• Rated voltage: 250 V
• Nominal current: 5 A
• ETIM 8.0: EC002704
• ETIM 9.0: EC002704
• ETIM 10.0: EC002704
• ECLASS 14.0: 27-14-20-01
• ECLASS 15.0: 27-14-20-01
• Current Rating: 5A
• Length: 20mm
• Material: Wemid (V0)
• Voltage Rating: 250V AC
• Weight: 1.05g
• Diameter: 5mm
• Supplier: Weidmuller
• Part No: 0431300000
• Unit of Measure: Per Each
• RoHS: Yes
• HTS: 85361010
• COO: DE
• ECCN: EAR99
