Weidmuller 0299860000 SH 1

Product Description

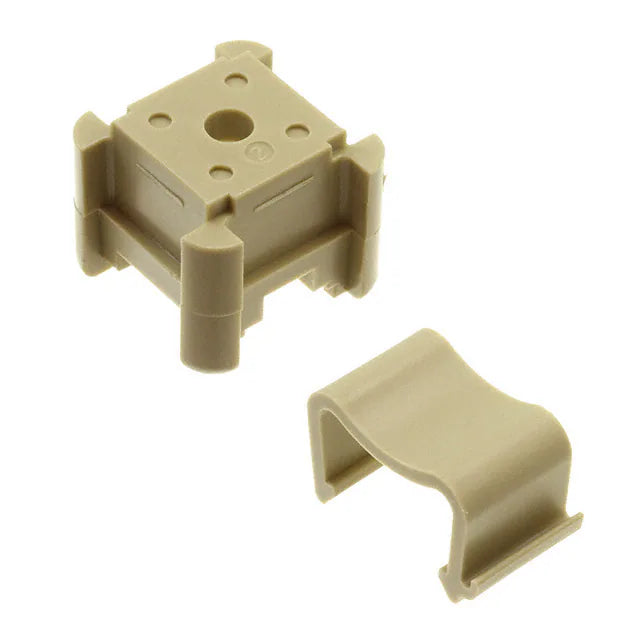

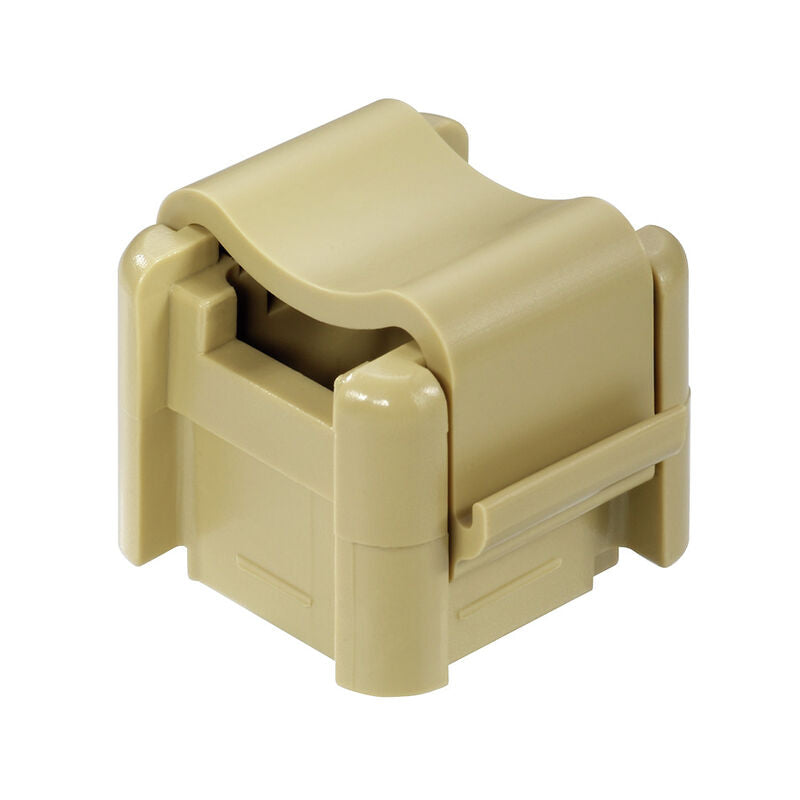

The Weidmuller 0299860000 SH 1 is a busbar support made of polyamide 66. It is designed for direct mounting when screwed in. This support effectively protects equipment from interference, such as electrical or magnetic fields.

• Width: 26 mm
• Operating temperature range: -5 °C to 100 °C
• UL 94 flammability rating: V-2

Product Highlights

The Weidmuller SH 1 busbar support provides a secure and reliable mounting solution for busbars, ensuring effective protection and performance.

Product Information

Standard Information

• Brand: Weidmuller
• Manufacturer Part Number: 0299860000

Technical Specifications

• Order No.: 0299860000
• Type: SH 1
• GTIN (EAN): 4008190135133
• Depth: 24 mm
• Depth (inches): 0.945 inch
• Height: 24.5 mm
• Height (inches): 0.965 inch
• Width: 26 mm
• Width (inches): 1.024 inch
• Net weight: 2 g
• Ambient temperature: -5 C 40 C
• Continuous operating temp., min.: -50 C
• Continuous operating temp., max.: 100 C
• RoHS Compliance Status: Compliant without exemption
• REACH SVHC: No SVHC above 0.1 wt%
• Basic material: Polyamide 66
• Surface finish: all others
• Colour: beige
• UL 94 flammability rating: V-2
• Installation advice: Direct mounting
• Type of mounting: when screwed in
• Type of connection: Miscellaneous
• Number of poles: 1
• Operating temperature range, max.: 100 C
• Category: Hardware, Fasteners, Accessories
• Accessories: Accessories
• Hardware Type: Busbar Holder
• Manufacturer: Weidm ller
• For Use With/Related Products: Din Rail Track
• Part Status: Active
