Description

Product Description

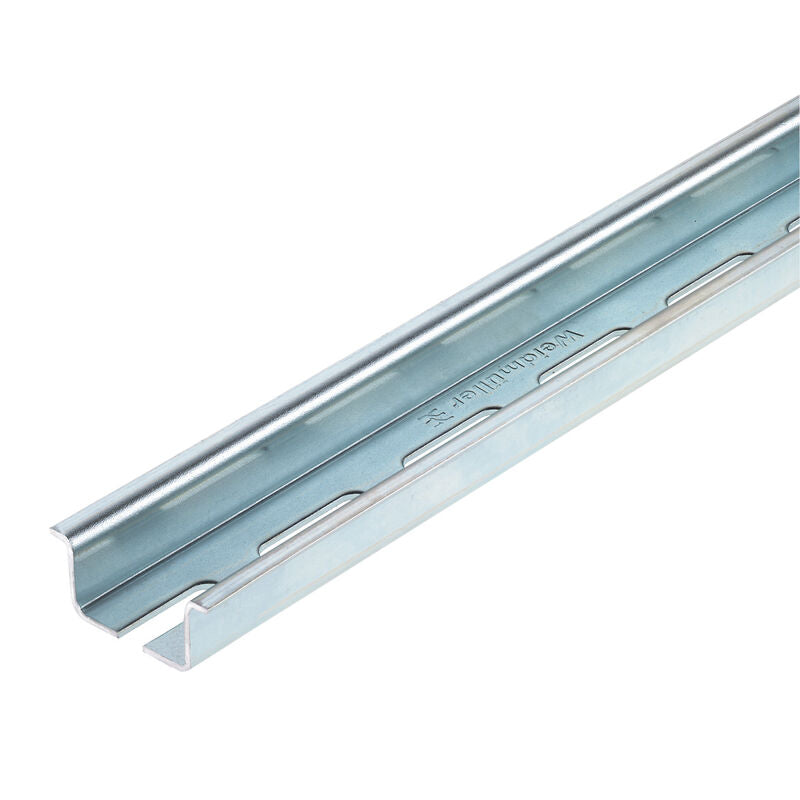

The Weidmuller 0236500000 is a terminal rail made of steel with a galvanic zinc plated and passivated finish. It measures 2000 mm in width, 35 mm in height, and 15 mm in depth. This terminal rail conforms to DIN EN 60715 standards.

  • Made of steel with galvanic zinc plating
  • Dimensions: 2000 mm x 35 mm x 15 mm
  • Compliant with RoHS standards

Product Highlights

The Weidmuller terminal rail is suitable for direct mounting and features pre-punched mounting holes for easy installation.

Product Information

Standard Information

  • Brand: Weidmuller
  • Manufacturer Part Number: 0236500000
Technical Specifications
Version
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 15 mm
Order No.
0236500000
Type
TS 35X15/LL 2M/ST/ZN
GTIN (EAN)
4008190183967
Depth
15 mm
Depth (inches)
0.591 inch
Height
35 mm
Height (inches)
1.378 inch
Width
2,000 mm
Width (inches)
78.74 inch
Net weight
537.778 g
Ambient temperature
-5 °C…40 °C
RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Basic material
Steel
Drill-hole diameter
5.2 mm
Installation advice
Direct mounting
Length of the terminal rail min.
0 mm
Length of the terminal rail nominal
2,000 mm
Length of the terminal rail max.
2,000 mm
Pre-punched mounting rail
Yes
Short circuit strength corresponds to E-Cu wire
50 mm²
Short-time withstand current per second according to IEC 60947-7-2
6 kA
Slit gap
11 mm
Slit gap min.
11 mm
Slit gap nominal
11 mm
Slit gap max.
11 mm
Slit length
25 mm
Slit length min.
25 mm
Slit length nominal
25 mm
Slit length max.
25 mm
Slit width
5.2 mm
Slit width min.
5.2 mm
Slit width nominal
5.2 mm
Slit width max.
5.2 mm
Slotted drill holes
Yes
Solder eyelet hole diameter (D)
5.2 mm
Spacing of holes, centre-to-centre
36 mm
Standards
In accordance with DIN EN 60715
Surface finish
galvanic zinc plated and passivated
Thickness
1.5 mm
ETIM 8.0
EC001285
ETIM 9.0
EC001285
ETIM 10.0
EC001285
ECLASS 14.0
27-40-06-02
ECLASS 15.0
27-40-06-02
Length
2 m
Material
Steel
