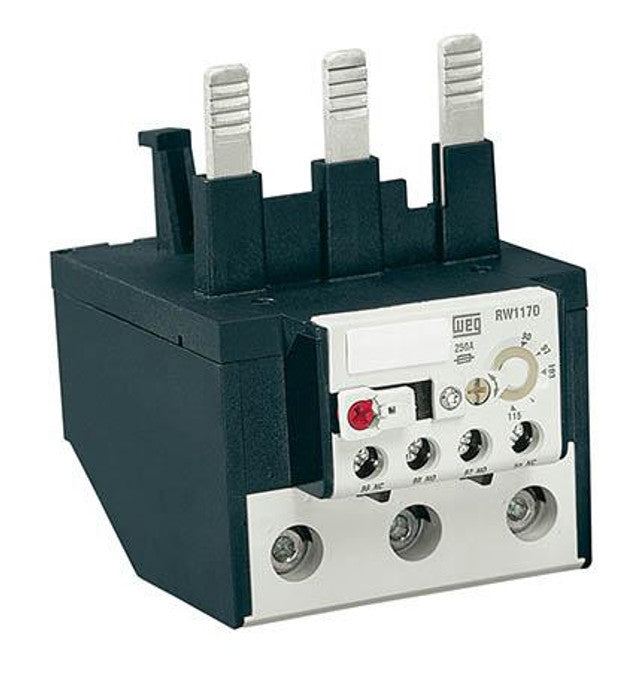

WEG RW117-1D3-U112 OVERLOAD RELAY

Product Description

WEG Electric Corp offers the RW117-1D3-U112, a thermal overload relay designed for reliable protection of electrical motors. This device features a three-pole design and is compliant with Class 10 standards. It is suitable for use with specific models including CWM95 to CWM105. The relay provides adjustable trip settings ranging from ninety to one hundred twelve amps, ensuring the appropriate protection level for varied applications.

• Adjustable tripping current with phase-loss sensitivity.
• Compatible with models CWM95 to CWM105.
• CE and UL certifications for reliable safety standards.

Product Highlights

This thermal overload relay features a reset button and is designed to operate effectively in temperatures between minus forty degrees Fahrenheit and one hundred forty degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• UPC: 7890355027738

Technical Specifications

• Model: 3-Pole O/L Relays
• Min Setting Range Amps: 90
• Max Setting Range Amps: 112
• Max Fuse Amps: 250
• Poles: 3
• Approx. Shipping Weight: 1.15 lbs
• Temperature Range: -40F to +140F
• Tripping Class: Class 10
