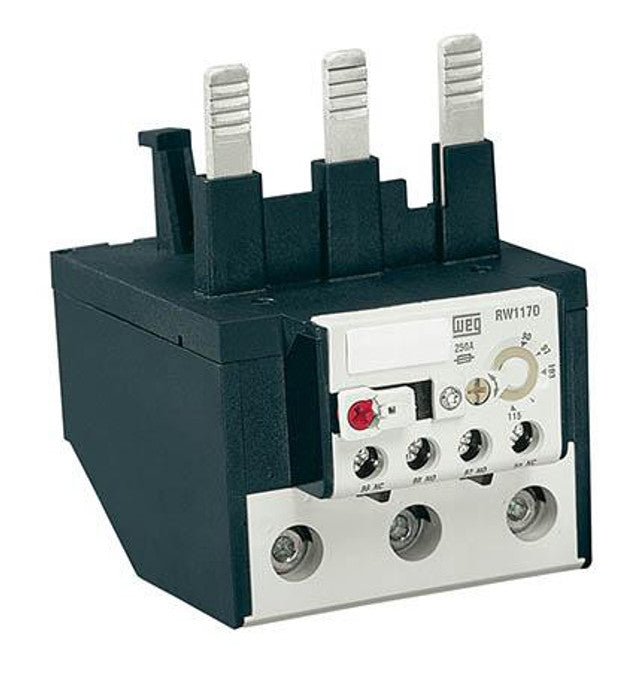

WEG RW117-1D3-U097 OVERLOAD RELAY

Product Description

The WEG Electric Corp. overload relay, model RW117-1D3-U097, is designed for thermal overload protection in electrical systems. This relay is part of the RW series and offers adjustable tripping current along with phase-loss sensitivity. It is suitable for various applications requiring reliable protection against motor overloads.

• Three-pole configuration for enhanced protection
• Temperature compensation from minus forty degrees Fahrenheit to plus one hundred forty degrees Fahrenheit
• Meets CE, UL for the US and Canada, and Bureau Veritas standards

Product Highlights

Designed for motor safety, providing adjustable settings to protect against overheating.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Model Number: RW117-1D3-U097

Technical Specifications

• Poles: 3
• Min Setting Range Amps: 75
• Max Setting Range Amps: 97
• Max Fuse Amps: 225
• Approx. Shipping Weight: 1.15 lbs
• Tripping Class: 10
• Auxiliary Contacts: 1 NO + 1 NC
• Temperature Range: -40F to +1400F
