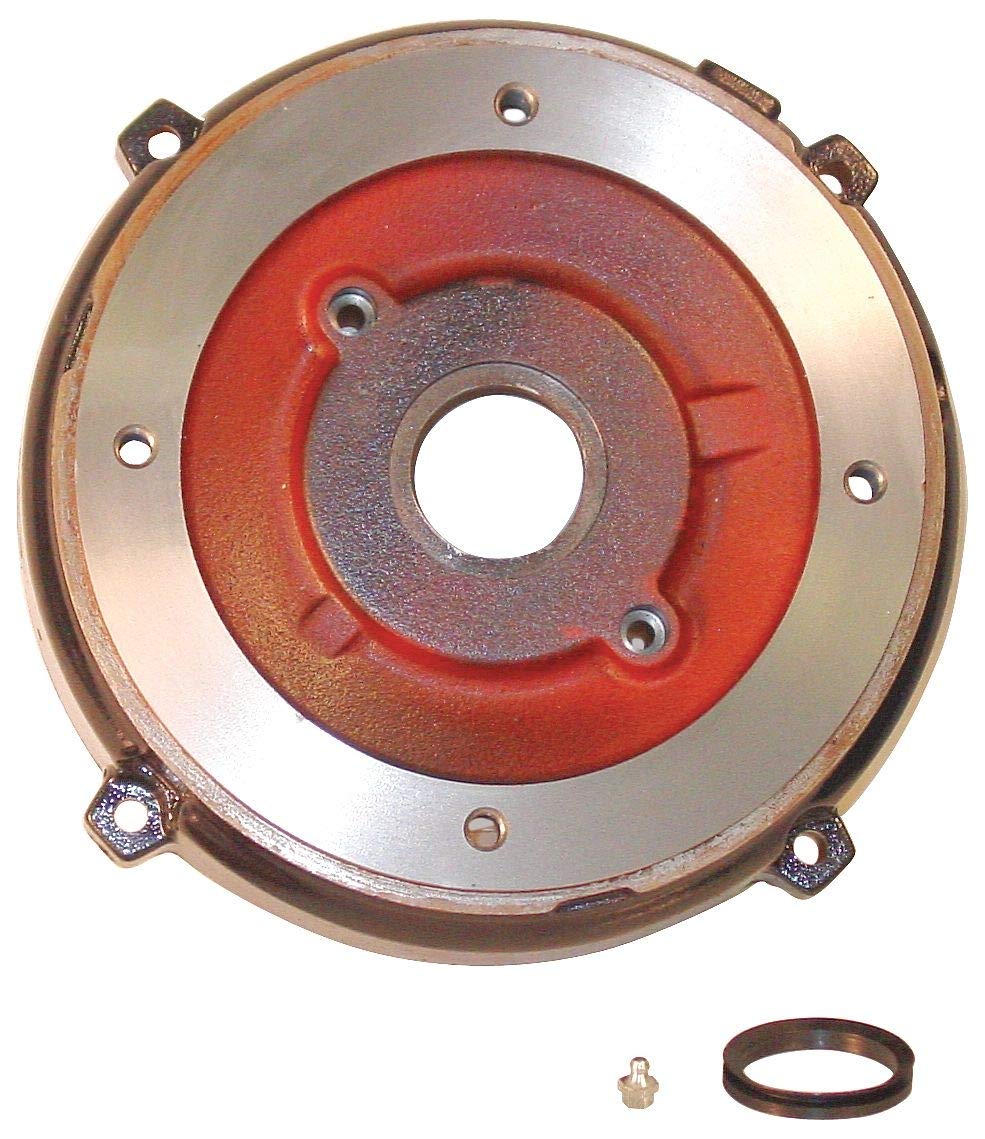

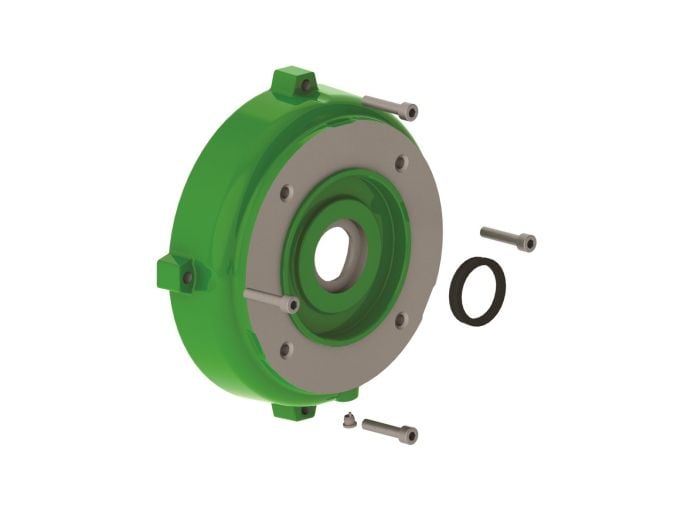

Weg FLC-E250-W22 C-Face Adapter Converts 254/6T Frame into 254/6TC

Product Description

The WEG FLC-E250-W22 C-Face Adapter converts a 254/6T frame into a 254/6TC frame. It is designed for use with WEG W22 Series Totally Enclosed Fan-Cooled Cast Iron Motors. This adapter meets NEMA standards and includes bolts for installation. It is suitable for various industrial applications requiring motor frame conversion.

• NEMA Standards
• 8-1/2" Rabbet Dia
• Includes Bolts

Product Highlights

Converts 254/6T Frame into 254/6TC. Designed for WEG W22 Series motors. Meets NEMA standards.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: FLC-E250-W22

Technical Specifications

• Function: Converts 254/6T Frame into 254/6TC
• Outside Dia. (In.): 12-15/16
• Rabbet Dia. (In.): 8-1/2
• Standards: NEMA
• For Use With: WEG W22 Series Totally Enclosed Fan-Cooled Cast Iron Motors
• NEMA/IEC Frame: 254/6T
• Manufacturer: WEG Electric
• Manufacturer Part Number: FLC-E250-W22
• Description: C-FLG KIT TEFC 250T W22, J2
• Accessory Type: Flange
• Protection Rating: IP55
• Approvals: CSA
