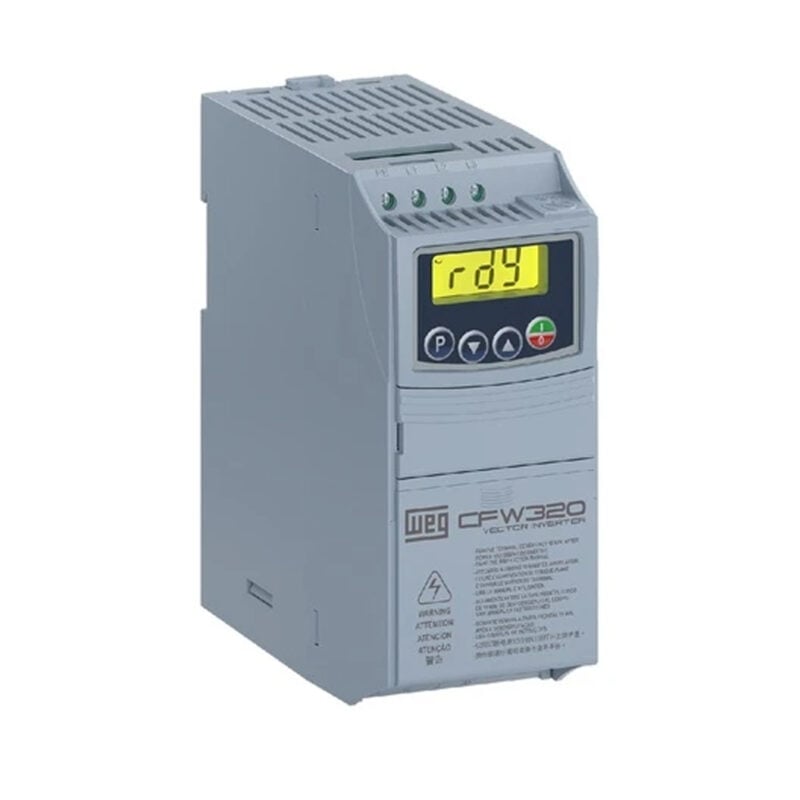

Weg CFW320A02P6S2NB20 Drive 0.75 hp

Product Description

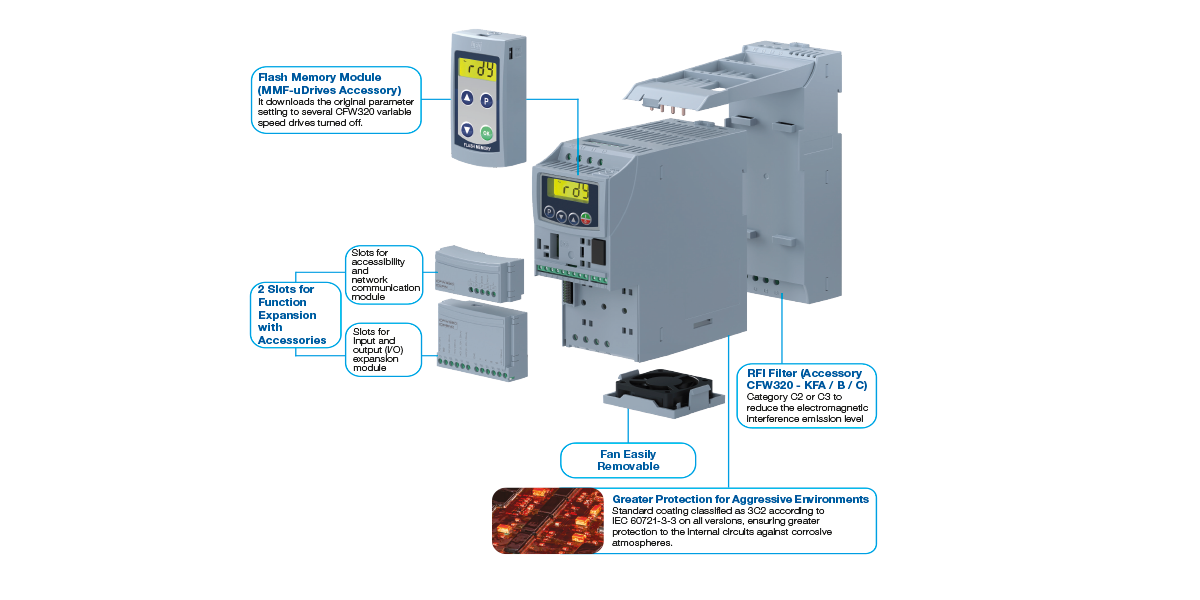

The WEG CFW320A02P6S2NB20 is a variable speed drive designed for three-phase induction motors, offering precise control. Ideal for machines requiring easy operation, it features a compact size and contactor-style electrical installation. Selectable WEG vector control (VVW) or scalar control (V/F), built-in operating interface (HMI), and SoftPLC are included.

• Features 4 digital inputs, 1 relay output, and 1 analog input.
• Offers vector (VVW) or scalar (V/F) control modes.
• Provides easy installation and a built-in operating interface (HMI).

Product Highlights

This drive provides precise motor control with flexible programming and easy installation for various industrial applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: CFW320A02P6S2NB20

Technical Specifications

• Power supply: 200-240 V
• Input phases: Single-phase
• Rated current (HD): 2.6 A
• Enclosure: IP20
• Dynamic braking: Included
• Horsepower: 0.75 hp
• Alternate Part Number: 15890644, Latest Version of CFW300A02P6S2NB20
• Series: CFW320 Series
• Output: 3 Phase Output
• Outdoor Rated: No
• Drives - Type of Drive: High Performance
• Input Voltage: 200-240V, Single Phase
• Product Family: CFW300
• Output Current: 2.6 A
• Braking Transistor: No
• EMC Filter: No
• Frame Size: A
• Control method – induction motor: V/f (escalar) and VVW
• Rated efficiency: ≥ 97%
• Link Inductor: No
• Conformal Coating: 3C2 (IEC 60721-3-3:2002)
• SoftPLC: Yes, incorporated
• Temperature: 0 °C a 50 °C
• USB port: Yes, by CFW320-CUSB
• Memory card: Not included in the product
• I/O standard: 4 x DI; 1 relé NA/NF x DO; 1 x AI; Somente com plug-in x AO.
• Output KW: 0.55
• Input Phase: 1
• Hz Rating: 60//50
• Output Voltage: 230
• Output Phase: 3
• Output Amperage: 2.6
• Enclosure IP: IP20
• Manufacturer: WEG Electric
• Product Series: CFW320
• Family Series: WEG Electric Drives, CFW320 Series
• Description: DRIVE CFW320A02P6S2NB20
• HP (Constant Torque Rating): 0.75 hp
• Amps (Constant Torque Rating): 2.6 A
• Amps (Variable Torque Rating): 2.6 A
• Closed Loop: Yes
• Operator Controls: Built In
• Nominal Input Voltage: 208 VAC, 240 VAC
• AC Voltage: 200-240 VAC
• Frequency: 60 Hz
• Protection Rating: IP20
• Height: 6.22 "
• Width: 2.76 "
• Depth: 5.84 "
