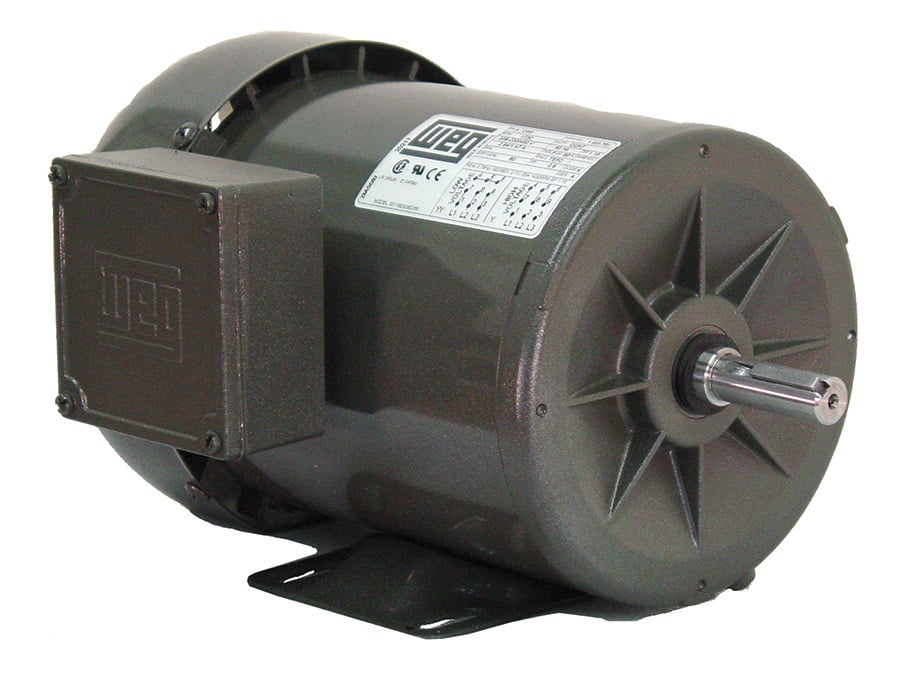

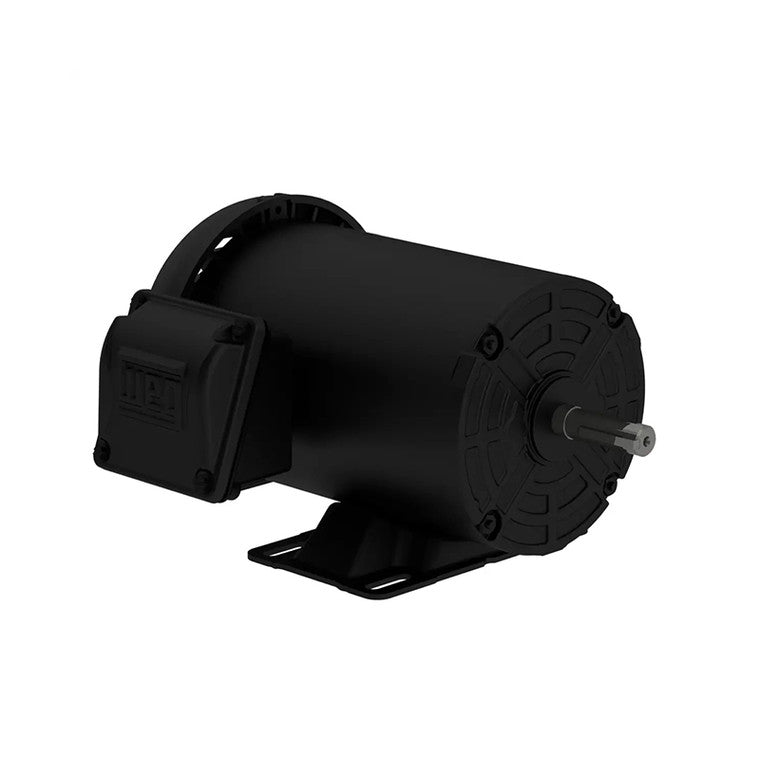

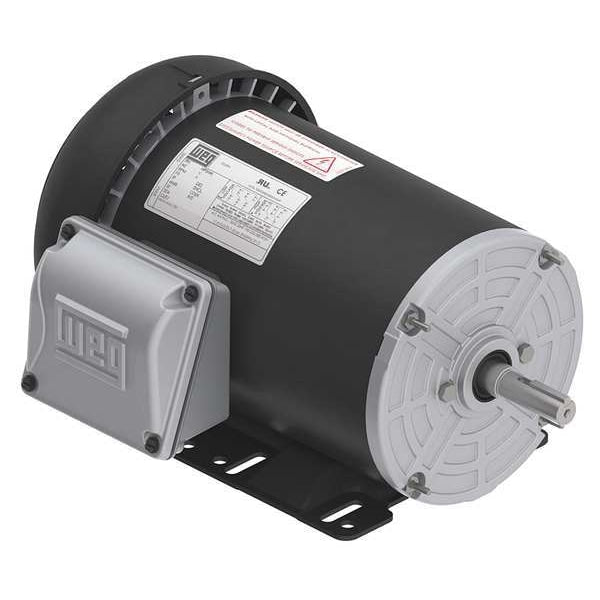

Weg .2536ES3E56-S 1/4HP 3475RPM 56 TEFC 3PH Motor

Product Description

The WEG .2536ES3E56-S 1/4HP Three Phase General Purpose Rolled Steel Motor is suitable for applications that require robustness, low weight and high performance. These Rolled Steel motors boast good thermal performance and easy installation and maintenance. These versatile motors provide torque and durability for even the most severe applications.

• Suitable for VFD operation as per NEMA MG1
• Variable Torque: 1000:1
• Constant Torque: 2:1

Product Highlights

WEG .2536ES3E56-S motor features a steel plate frame and aluminum end shields. It has a new ventilation system for improved thermal performance and a robust foot design suitable for tougher applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: .2536ES3E56-S
• Country of Origin: Mexico

Technical Specifications

• Brand: WEG
• Application: General Purpose
• Output HP: 1/4
• Output KW: 0.19
• Output RPM: 3475
• Frame Size NEMA: 56
• Mount NEMA: With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 208-230/460//190-220/380-415 V
• MODEL: .2536ES3E56-S
• HP: 0.25
• Hz: 60 Hz
• Phase: Three Phase
• Full Load Amps: 1.01-0.914/0.457 A
• Locked rotor current (II/In): 6.4
• Locked Rotor Torque: 250 %
• Break Down Torque: 300 %
• Motor Type: General Purpose
• Synchronous RPM: 3600 RPM
• Frame Size: 56
• Rated Supply Voltage: 208-230/460 V
• Motor Enclosure Type: Totally Enclosed Fan Cooled (TEFC)
• Rated Voltage: 208 V, 230 V, 460 V
• Service Factor: 1.15
• Insulation Class: F
• Efficiency: 57.5%
• Construction: Rolled Steel
• C Dimension: 11.142
• Mounting Type: Foot Mount
• Rated Input Frequency: 60 Hz
• Motor Full Load Amps: 0.5 A
• Alternate Part Number: 14796938 (Was 12676239)
• Mounting: F-1
• Series: W01 Rolled Steel
• All - Voltage: 208 to 480VAC
• Frequency: 60/50 Hz
• Rated current: 1.01-0.914/0.457 A
• No load current: 0.431-0.500/0.250 A
• Rated torque: 0.378 ft.lb
• Number of poles: 2
• Degree of Protection: IP55
• Synchronous speed: 3600 rpm
• Output rating: 0.25 HP
• Starting Method: Direct On Line
• Flange: Without
• Terminal box : Left position
• Enclosure: IC411 - TEFC
• Frame Remarks: Footed
• Volts: 208/230/460
• Manufacturer: WEG
• Classification: Three Phase
• Replaces: .2536ES3E56-S
• Rated Load (HP): 1/4
• IEC Frame Size: 56
• AC Frequency Rating: 60 Hz
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Shaft Type: Keyed
• MPN: .2536ES3E56-S
• Nominal Rated Input Voltage: 208-230/460V
• AC Phase: Three Phase
• UPC: NA
• Country of Origin: Mexico
• Zoro #: G9988806
• Item: General Purpose Motor
• Nameplate RPM: 3475 rpm
• Motor Mounting Type: Rigid Base
• Motor Bearings: Ball
• Motor Service Factor: 1.15
• Motor Design: Three-Phase
• Motor Enclosure Design: Totally Enclosed Fan Cooled
• RPM Range: 3001-3600
• No. of Speeds: 1
• Motor Application: General Purpose
• Motor Shaft Rotation: CW/CCW
• Voltage Compatibility: 200-230/460V AC, 208-230/460V AC, 460V AC
• Ins. Class: F
• Max. Ambient Temp.: 40 Degrees C
• Motor Frame Material: Steel
• Motor Mounting Position: All Angle
• Motor Shaft Design: Keyed
• Nominal Efficiency: 57.5 %
• Standards: CSA, UL
• Green Environmental Attribute: Does not Contain Formaldehyde
• Inverter Rated: Yes
• Motor Thermal Protection: None
• Duty Cycle: Continuous
• Usable @ 208V: Yes
• RPM @ 50Hz: 2860/2875 rpm
• Voltage @ 50Hz: 190/380, 220/415
• HP @ 50Hz: 1/4 hp
• Full Load Amps @ 50Hz: 0.855/0.453, 0.938/0.469 A
• Usable @ 200V: No
• Service Factor @ 50Hz: 1.15
• Capacitor Required: No
