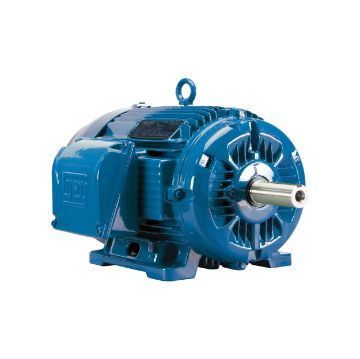

WEG 05018ET3E326T-W22 Continuous-Duty AC Motor 50 hp

Product Description

The WEG 05018ET3E326T-W22 is a continuous-duty AC motor designed for general purpose applications. This motor has a power rating of fifty horsepower and operates at voltages of 208, 230, or 460 VAC with a frequency of sixty hertz. It features a totally enclosed fan cooled enclosure for enhanced durability and efficiency.

• Powerful fifty horsepower motor for versatile applications
• Versatile voltage options: 208/230/460 VAC
• Rated for high efficiency with IP55 protection

Product Highlights

The WEG motor is built with a cast iron frame, ensuring long-term reliability and lower noise operation. It is suitable for various industrial settings where continuous operation is required.

Product Information

Standard Information

• Manufacturer: WEG ELECTRIC CORP
• Type: Continuous-Duty

Technical Specifications

• Frame: 324/6T
• Phase: 3
• Speed: 1775 rpm
• Material: Cast Iron
• Rotation: CW/CCW
• Dimensions: 31.116 inches long
• Horsepower: 50 hp
• Shaft Size: 2-1/8 inches diameter x 5-1/4 inches long
• Bearing Type: Ball
• Mounting Type: Footed
• Torque Rating: 146 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1.25
• Voltage Rating: 208/230/460 VAC
• Amperage Rating: 131 to 118/59.2 A
• Application Type: General Purpose AC Motors
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Number of Speeds: 1
• Temperature Rating: -20 to 40 degrees Celsius
• Constant Torque Speed Range: 20:1
• Variable Torque Speed Range: 1000:1
