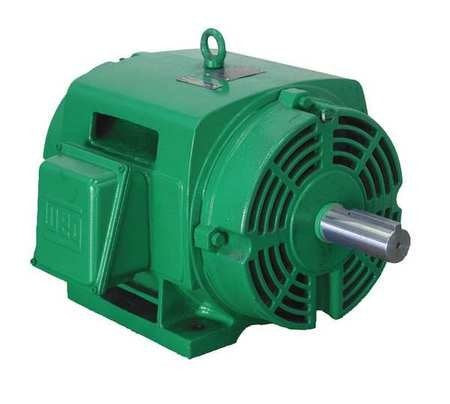

WEG Weg 01518OT3E254T Ac inverter duty motor 15 HP (Frame 254T)
WEG Weg 01518OT3E254T Ac inverter duty motor 15 HP (Frame 254T)

Weg 01518OT3E254T Ac inverter duty motor 15 HP (Frame 254T)

Brand: WEG
SKU: 01518OT3E254T
Availability: In Stock

Ships via freight in 1-3 business days
$1,220.73
$1,220.73
LTL Delivery

This product weighs 247 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Weg 01518OT3E254T is a 15 HP (11 kW) Ac inverter duty motor rated 208-230/460 V and 1775 RPM. The motor uses a NEMA 254T frame with an open drip proof enclosure and is suitable for variable frequency drive applications. Approximate overall dimensions are 20" x 16" x 15" with a 4" long, 1.625" diameter shaft.

  • 15 HP (11 kW) inverter duty motor; rated 208-230/460 V and 1775 RPM
  • Frame 254T NEMA construction with open drip proof (ODP) enclosure and rigid base
  • Approx. dimensions 20" x 16" x 15"; shaft length 4" and diameter 1.625"

Product Highlights

15 HP Ac inverter duty motor, 208-230/460 V, 1775 RPM, frame 254T ODP, 4" x 1.625" shaft

Product Information

Standard Information

  • Brand: WEG
  • Manufacturer Part Number: 01518OT3E254T
  • Country of Origin: Brazil; Mexico
Technical Specifications
Brand
Weg
MPN
01518OT3E254T
Product Type
AC inverter duty motor
Horsepower
15 HP (11 kW)
Input Voltage
208-230 / 460 V
Speed (RPM)
1775 RPM
Frame Size
254T
Enclosure
Open Drip Proof (ODP)
Phase
3
Frequency
60 Hz
Approximate Dimensions
20" x 16" x 15"
Shaft Length
4"
Shaft Diameter
1.625"
Full Load Amps (208V)
41.1 A
Full Load Amps (230V)
37.2 A
Full Load Amps (460V)
18.6 A
Insulation Class
F
Mounting Type / Base
Rigid base
Weight
247 lbs
Product Number
310915
UPC
721749731047
GTIN
0721749731047
Country of Origin
BR, MX
