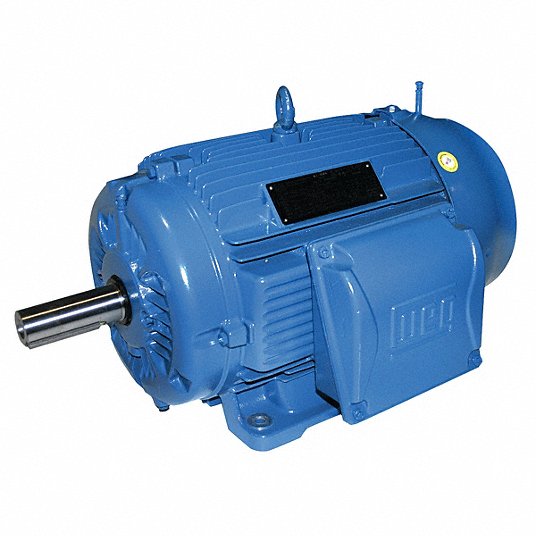

WEG 01118ET3Y160M-W22 MOTOR 15HP 4P 160M WFF2

Product Description

The WEG 01118ET3Y160M-W22 is a reliable motor designed for general purpose applications. This motor features a power rating of 15 horsepower and operates at 460 VAC with a frequency of 60 Hz. It is a three-phase motor that runs at a speed of seventeen hundred seventy-five RPM in a totally enclosed fan-cooled enclosure.

• Designed to comply with European IEC34 and IEC79 standards
• Features a cast iron construction for durability
• Includes a gasketed conduit box

Product Highlights

This motor is effective for a variety of general purpose applications. Its robust design ensures longevity and consistent performance within a temperature range of negative twenty degrees Celsius to forty degrees Celsius.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• UOM: EA

Technical Specifications

• Amperage Rating: 18.2 A
• Application Type: General Purpose AC Motors
• Bearing Type: Ball
• Constant Torque Speed Range: 20:1
• Dimensions: 23.543 inches Long
• Enclosure Type: Totally Enclosed Fan Cooled
• Frame: 160M
• Frequency Rating: 60 Hz
• Horsepower: 15 hp
• Insulation Class: Class F
• Material: Cast Iron
• Mounting Type: Footed
• Phase: 3 ph
• Rotation: CW/CCW
• Service Factor: 1.25
• Shaft Size: 42 mm Diameter
• Special Features: IEC Metric Motors
