Weg 00336ET3E145JM-S 3HP 3500RPM 143/5JM TEFC 3PH Pump Motor

Product Description

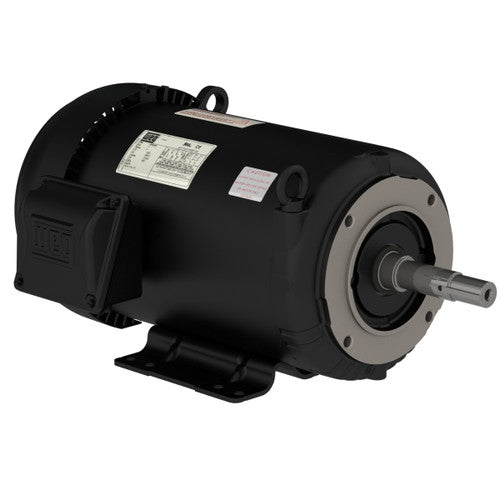

The WEG 00336ET3E145JM-S is a 3HP Three Phase JM Pump Motor designed for high performance with maximum energy efficiency. This motor is rated for 230/460V and 3500 RPM. It features a durable rolled steel frame and is suitable for closed-coupled applications. The motor has a NEMA frame size of 143/5JM and a TEFC enclosure.

• Inverter Rated 1000:1 VT
• NEMA Premium efficiency rating
• Durable rolled steel frame

Product Highlights

WEG's 00336ET3E145JM-S is a 3HP pump motor with a TEFC enclosure, designed for premium efficiency and reliable performance in demanding applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00336ET3E145JM-S
• Country of Origin: Mexico

Technical Specifications

• Brand: WEG
• Application: Closed Coupled
• Output HP: 3
• Output KW: 2.2
• Output RPM: 3500
• Frame Size NEMA: 143/5JM
• Mount NEMA: C Face With Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460
• Full Load Amp (FLA): 3.5
• Hz: 60
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 143/5JM
• Motor Type: Premium Efficient
• Phase: 3
• Product Notes: Rolled Steel Frame - Cannot be modified with T Box on opposite side, Reduced Frame
• Service Factor: 1.15
• Speed (RPM): 3600
• Input Current: AC
• Frame Type: 143/5JM
• Horsepower: 3 HP
• kW: 2.2
• RPM: 3600
• Full Load Amperage: 3.5
• Order code / Manufacturer SKU: 00336ET3E145JM-S
• Manufacturer description: CLOSE-COUPLED PUMP - ROLLED STEEL - JM & JP FRAMES - MOTOR 3HP 2P 143/5JM WCF2
• Frame: 145JM
