Weg 00236ET3EJPR56J-S 2 HP 3600 RPM TEFC 56J FRAME 230/460 Volts

Product Description

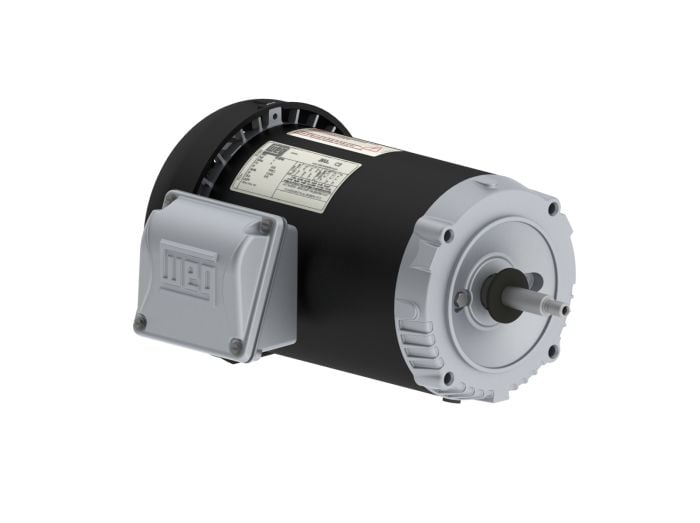

The WEG 00236ET3EJPR56J-S 2 HP Three Phase Jet Pump Motor has the torque and durability for tough commercial applications. This motor is TEFC enclosed and has a 56J frame. It operates at 3600 RPM and is designed for 230/460 voltage applications. It is Nema Premium efficient and has a stainless steel shaft end.

• Nema Premium Efficiency
• 5/8" Threaded output shaft
• Stainless steel shaft end

Product Highlights

The WEG 00236ET3EJPR56J-S is ideal for jet pump applications requiring a durable and efficient motor.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00236ET3EJPR56J-S
• Country of Origin: Brazil

Technical Specifications

• HP [Specifications]: 2
• Kw [Specifications]: 1.5
• FRAME [Specifications]: 56J
• VOLTAGE [Specifications]: 230/460
• Nameplate RPM [Specifications]: 3600
• Frame Material [Specifications]: ROLLED STEEL
• Full Load Amps [Specifications]: 2.5
• Overall Length [Specifications]: 14.402
• Nominal Efficiency [Specifications]: 85.5
• Motor Mounting Type [Specifications]: FOOTLESS
• Motor Service Factor [Specifications]: 1.15
• Motor Enclosure Design [Specifications]: TEFC
• Application: Jet Pump
• Output HP: 2
• Output KW: 1.5
• Output RPM: 3520
• Frame Size NEMA: 56J
• Mount NEMA: C Face No Base
• Enclosure NEMA: TEFC
• Enclosure IEC: IP55
• Voltage: 230/460//190-220/380-415
• Brand: WEG
• Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
• Motor Frame Size: 56J
• Motor Type: Premium Efficient
• Hz: 60
• Speed (RPM): 3600
• Manufacturer Part Number: 00236ET3EJPR56J-S
• Manufacturer: WEG Electric
• Family Series: WEG Electric Motors
• Description: 2Hp 3600 3 60 208-230/460
• Horsepower: 2 hp
• Speed: 3,600 RPM
• RPM: 3,600 RPM
• Frequency: 60 Hz
• NEMA Frame: 56J
• AC Voltage: 208 VAC
• Nominal Voltage: 208 VAC
• Enclosure: Totally Enclosed Fan Cooled
• Mounting: Footless
• Current Rating: 2.5 A
• Composition: Steel
