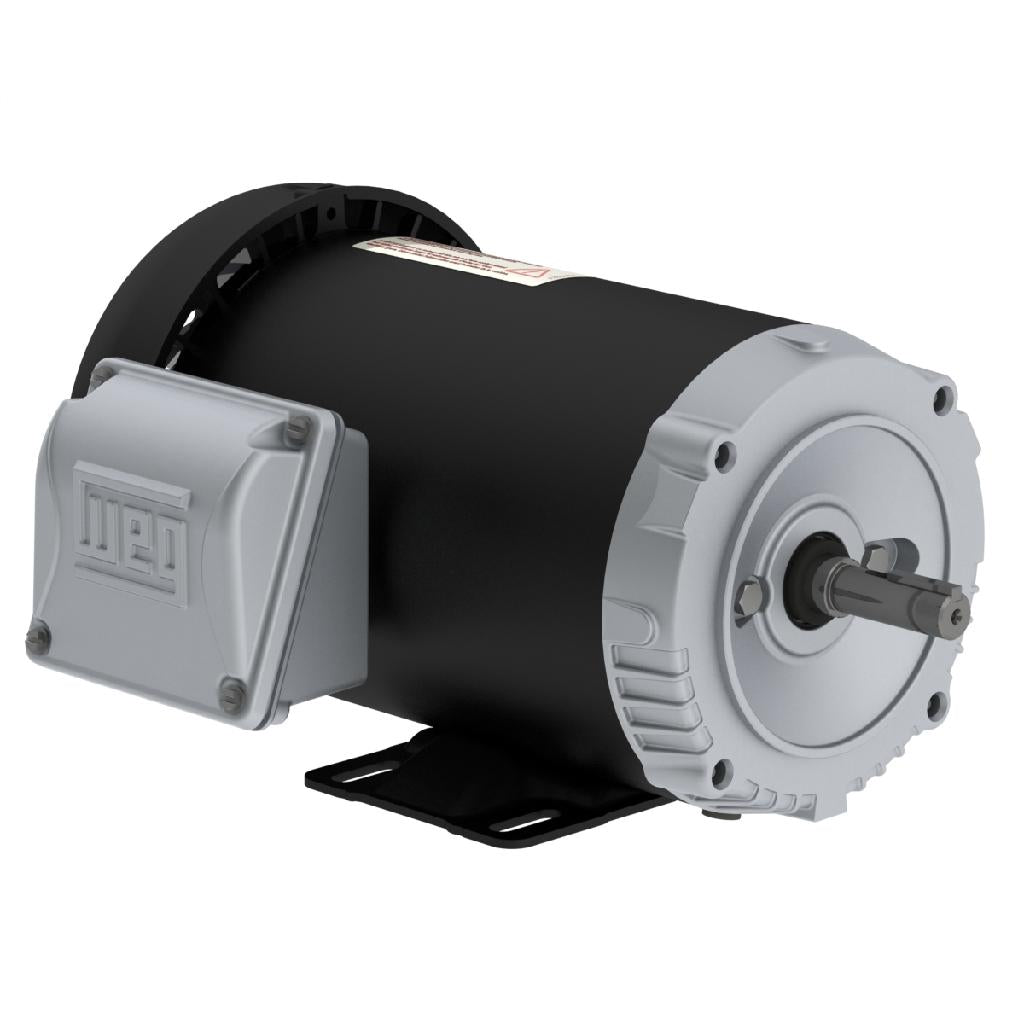

Weg 00118ET3E56C-S ac motor 1 hp 56c

Product Description

The WEG 00118ET3E56C-S is an AC motor designed for general-purpose applications. This 1 hp motor operates at 230/460 VAC and 60 Hz, with a speed of 1800 rpm. It features a totally enclosed fan-cooled enclosure and a 56C frame. The motor's robust design includes aluminum endshields and cast iron flanges for enhanced strength.

• Features a C-Face Footed Mounting
• Operates within a temperature range of -20 to 40 deg C
• Offers CW/CCW rotation and a 1.15 service factor

Product Highlights

This WEG AC motor is suitable for environments where dirt, dust, and moisture are present, making it ideal for both indoor and outdoor applications.

Product Information

Standard Information

• Brand: WEG
• Manufacturer Part Number: 00118ET3E56C-S

Technical Specifications

• Frame: 56C
• Phase: 3
• Speed: 1800 rpm
• Material: Rolled Steel
• Rotation: CW/CCW
• Horsepower: 1 hp
• Shaft Size: 5/8 in Dia x 1-7/8 in L
• Bearing Type: Ball
• Mounting Type: C-Face Footed
• Torque Rating: 2.94 ft-lb
• Enclosure Type: Totally Enclosed Fan Cooled
• Service Factor: 1.15
• Voltage Rating: 230/460 VAC
• Amperage Rating: 1.5 A
• Application Type: General Purpose AC Motors
• Frequency Rating: 60 Hz
• Insulation Class: Class F
• Number of Speeds: 1
• Temperature Rating: -20 to 40 deg C
• Poles: 4
• Efficiency (100%): 85.5
• Power factor (100%): 0.75
• Noise: 52 dB(A)
• Full Load Amps: 3.25-2.94/1.47 A
• Locked rotor current (II/In): 8.6
• Enclosure: TEFC
• Hz: 60
• Voltage: 230/460
• Output HP: 1 HP
• Locked Rotor Torque: 280 %
• Break Down Torque: 300 %
• Efficiency (%) 50: 82.5
• Efficiency (%) 75: 84.0
• Efficiency (%) 100: 85.5
• Power factor (%) 50: 0.52
• Power factor (%) 75: 0.66
• Power factor (%) 100: 0.75
• Inertia: 0.12316 sq.ft.lb
• L.R. Time: 19 s
