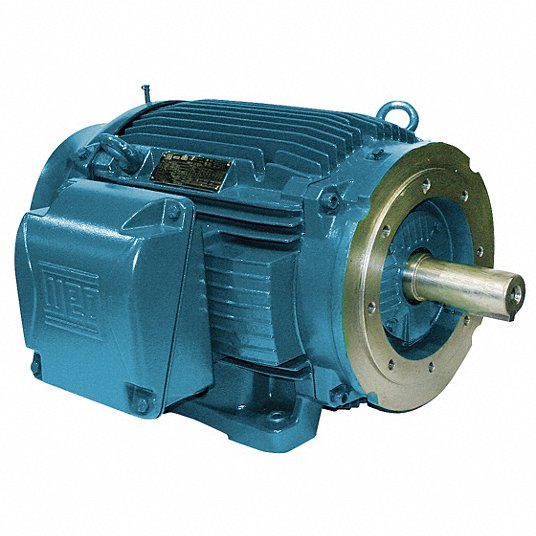

WEG 00118ET3E143TC-W22 MOTOR 1HP 4P 143/5TC WFF2

Product Description

The WEG Electric Corp 00118ET3E143TC-W22 is a one horsepower continuous-duty AC motor designed for various general purpose applications. This motor operates on 208, 230, or 460 volts with a three-phase current and features a totally enclosed fan cooled enclosure. The frame size is 143-5TC, and it can achieve speeds up to 1760 revolutions per minute.

• Powerful one horsepower motor suitable for various applications.
• Constructed with robust cast iron materials for durability.
• Equipped with regreasable bearings and IP55 rating for enhanced protection.

Product Highlights

The WEG motor is built for reliability and performance in demanding environments.

Product Information

Standard Information

• Manufacturer: WEG Electric Corp
• Model Number: 00118ET3E143TC-W22

Technical Specifications

• Horsepower: 1 hp
• Frame: 143-5TC
• Amperage Rating: 3.07 to 2.94/1.47 A
• Voltage: 208/230/460 VAC
• Frequency Rating: 60 Hz
• Speed: 1760 rpm
• Service Factor: 1.25
• Dimensions: 13.358 in L
• Shaft Size: 7/8 in Dia x 2-1/4 in L
• Enclosure Type: Totally Enclosed Fan Cooled
• Rotation: CW/CCW
• Material: Cast Iron
• Mounting Type: C-Face Footed
• Insulation Class: Class F
• Number of Speeds: 1
• Constant Torque Speed Range: 20:1
• Bearing Type: Ball
