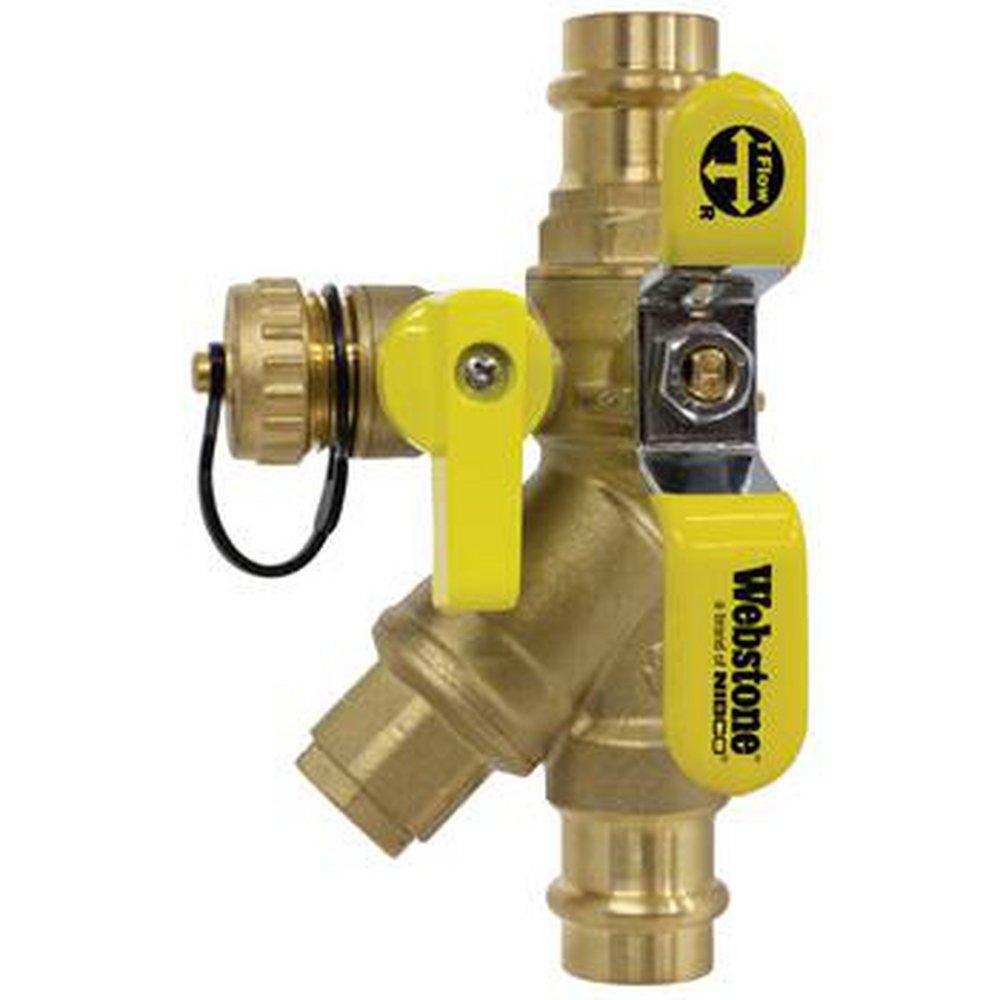

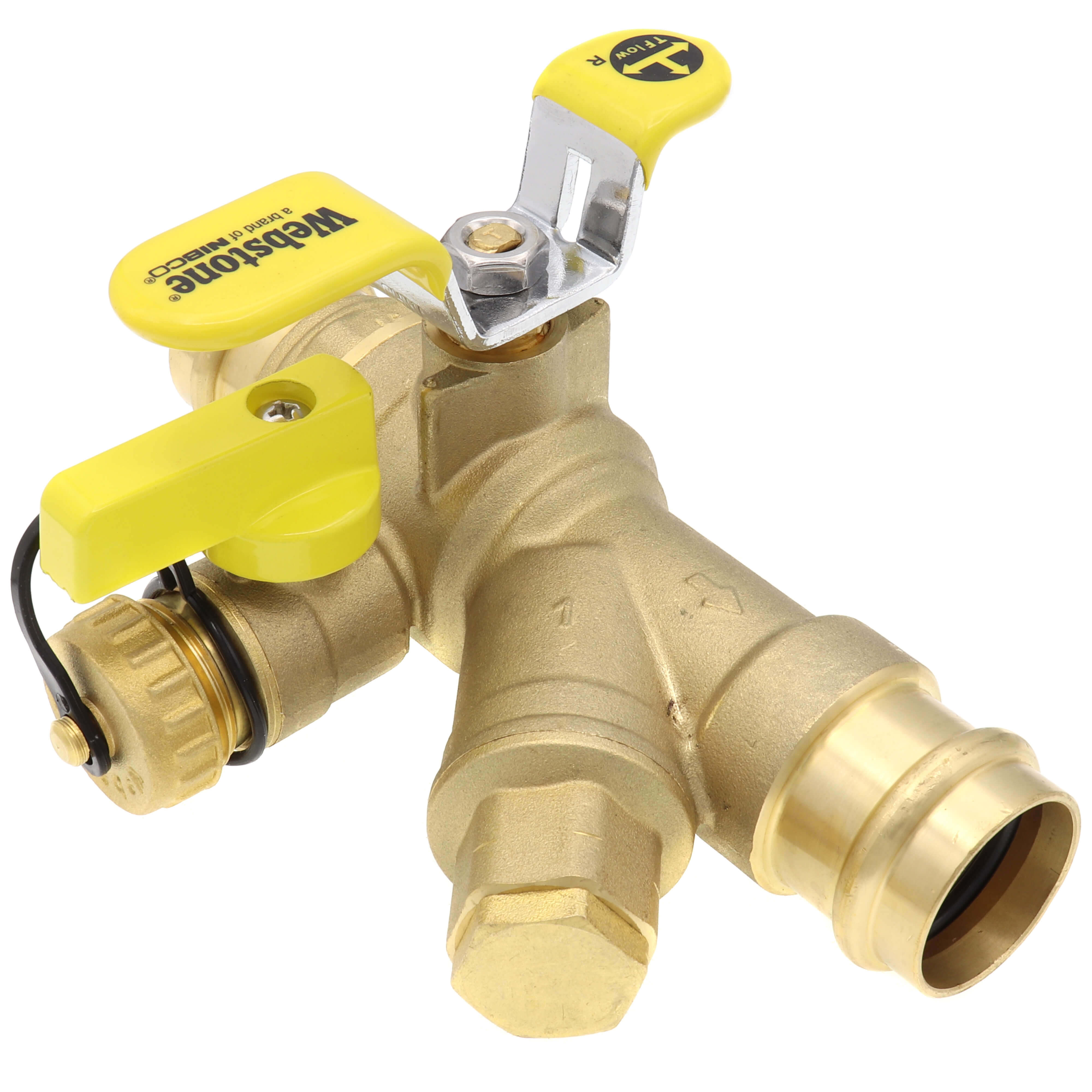

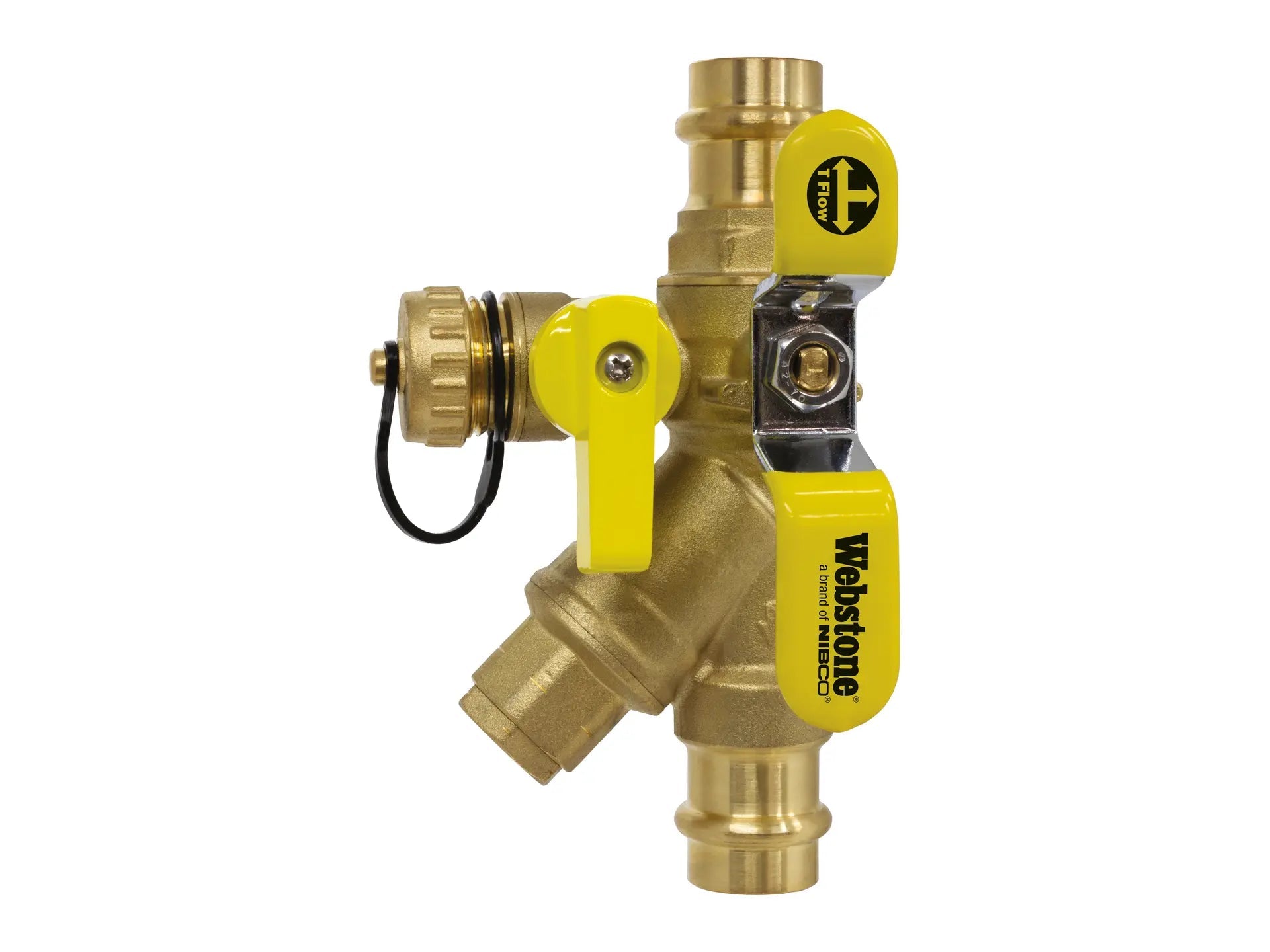

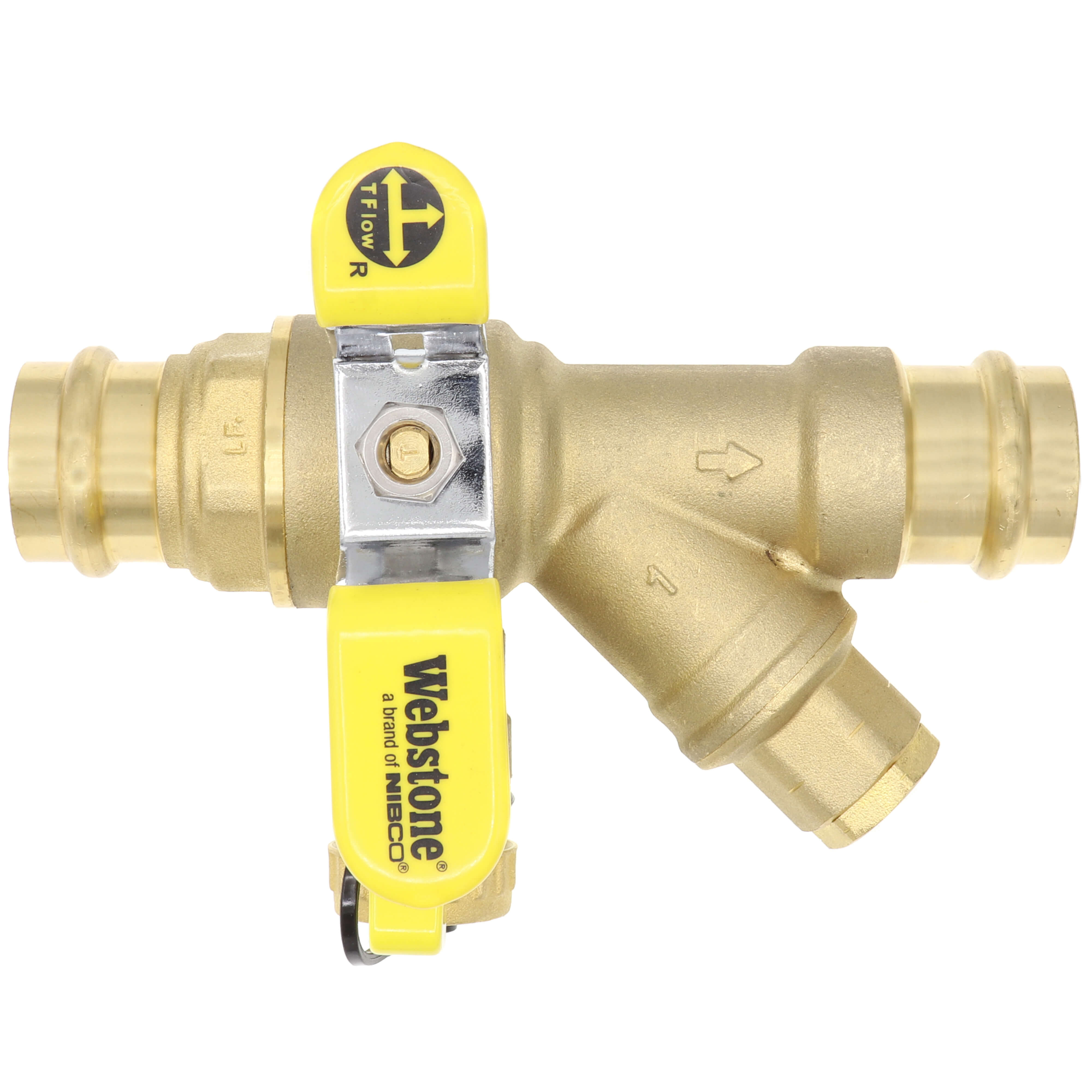

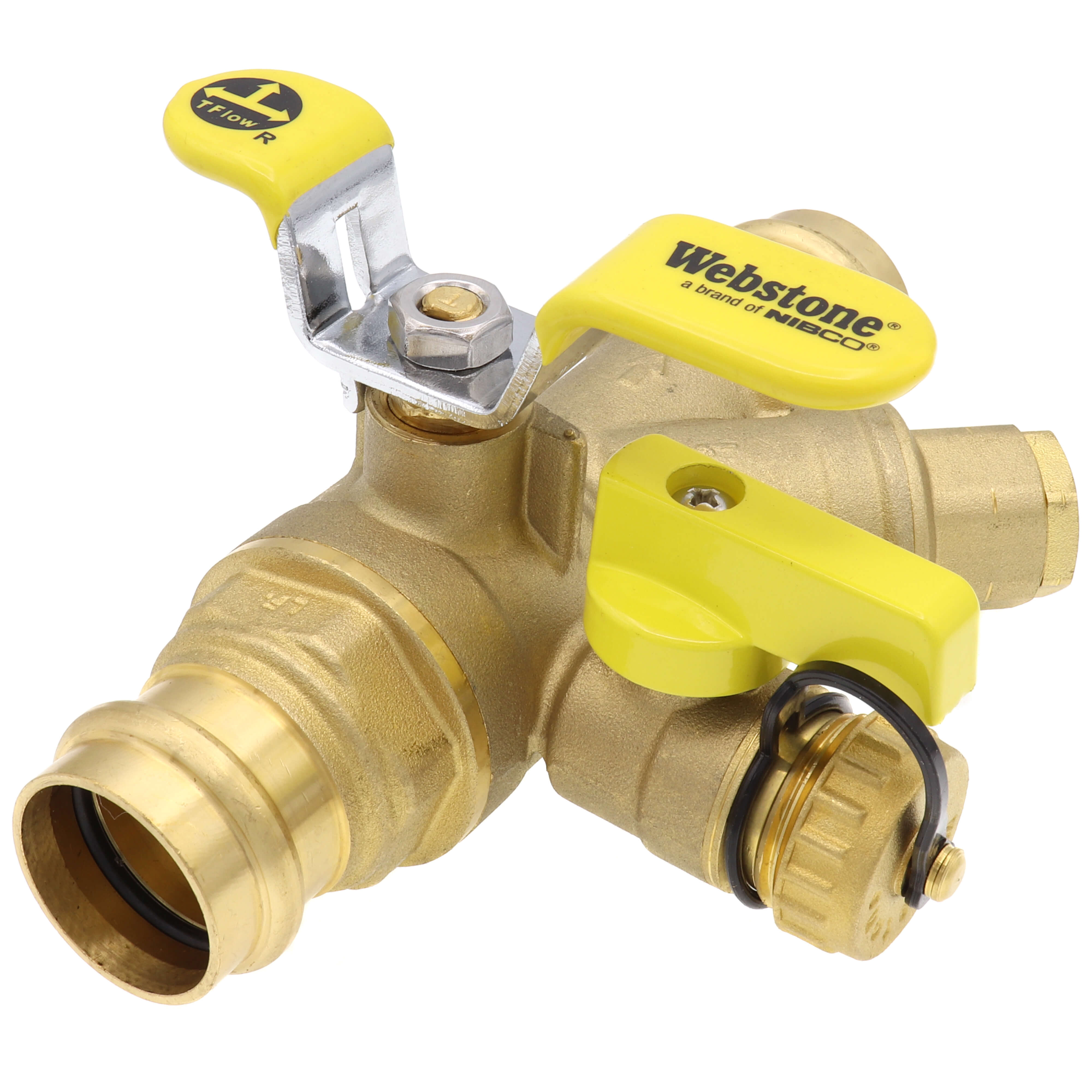

Webstone H-81564W 1 inch Press Pro-Pal Ball Drain Strainer

Product Description

The WEBSTONE H-81564W Pro-Pal Ball Drain Strainer is a 1 inch press connection valve designed for plumbing and heating systems. It features a full port forged DZR brass ball valve with a hi-flow multi-function hose drain and an integral Y strainer (20 mesh). This lead-free component is certified to NSF/ANSI 61 & 372, ensuring safe and efficient operation. It is suitable for isolating, draining, and straining piped systems, protecting against debris.

• Full port forged DZR brass ball valve with hi-flow multi-function hose drain.
• Integral Y strainer (20 mesh) and 1/2 inch plugged NPT port.
• Certified to NSF/ANSI 61 & 372 and lead-free construction.

Product Highlights

This Pro-Pal Ball Drain Strainer combines a full port DZR brass ball valve with an integral Y strainer for efficient system protection and maintenance.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-81564W
• Country of Origin: Import

Technical Specifications

• Size: 1 inch
• Material: DZR Brass
• Lead Free: Yes
• Max Temperature: 200°F
• Connection Type: Press x Press
• Connection Method: Press
• Max Pressure: 250 (CWP)
• Port Type: Full
• Softgoods Material: EPDM / PTFE
• Actuator Type: Handle
• Ball Material: HCP Brass
• Recommended Media: Glycol Mixture / Oil / Water
• Height (Top to Inlet Center): 4 in
• Trim Material: Brass / PTFE
• Certifications: NSF/ANSI 61, NSF/ANSI 372, ANSI B1.20.1
• Strainer Mesh Size: 20
• Strainer Type: Wye
• UL Listed: No
• Valve Body Style: 1 piece
• Valve Type: Y-Strainer
