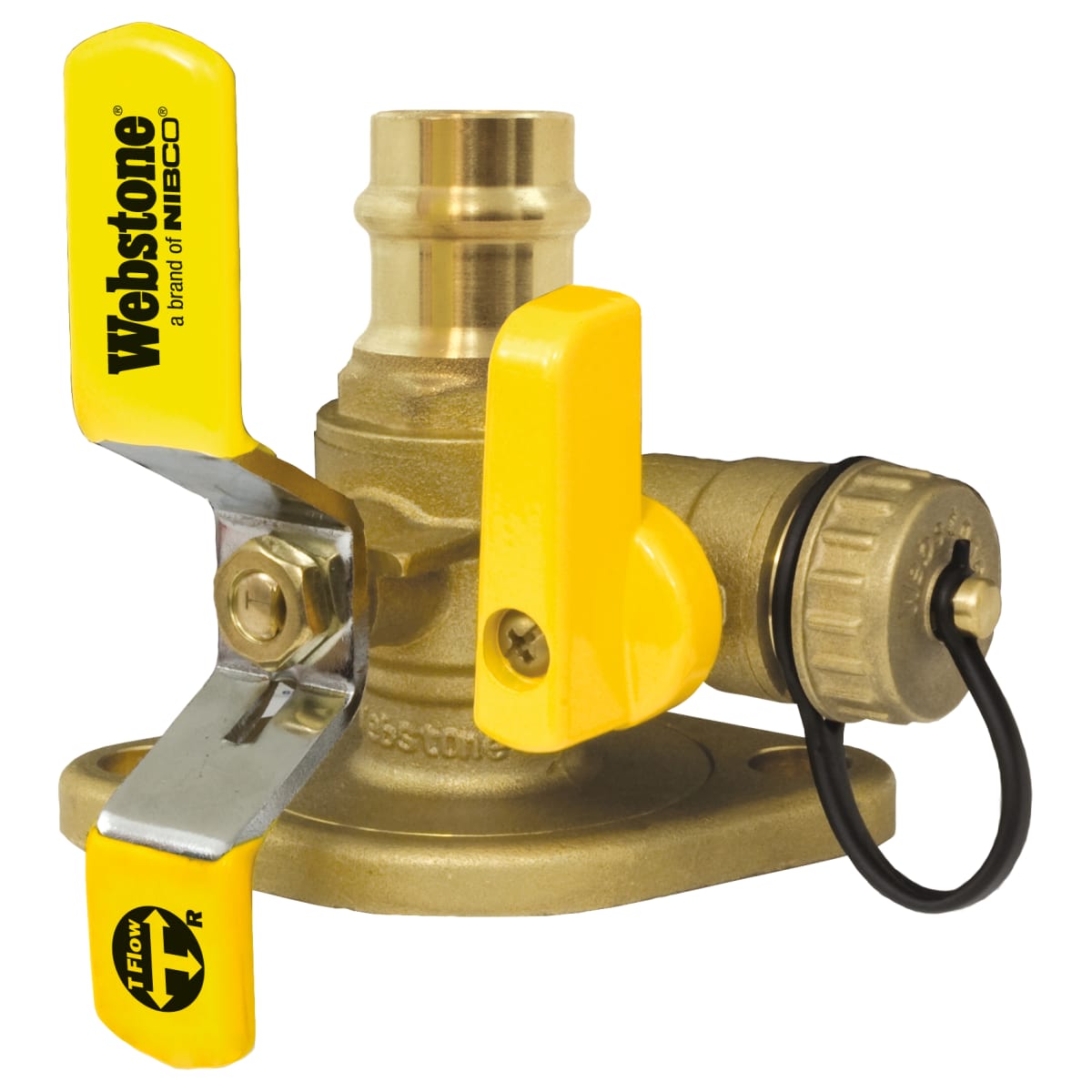

Webstone H-81417HV Isolator Rotating Flange With Drain 2

Product Description

The Webstone H-81417HV is a high-velocity isolator featuring a rotating flange design and drain function. This product is ideal for isolating circulator pumps in heating systems, ensuring minimal air introduction during service or replacement. Constructed from robust forged brass, it optimizes labor and space by combining multiple components into one unit. This isolator is suitable for use in both residential and commercial plumbing applications.

• Isolates circulator pumps effectively
• Prevents electrolysis and galvanic corrosion
• Compatible with various standard circulator pumps

Product Highlights

This isolator offers a patented technology that simplifies installation and maintenance tasks, reducing the potential for leaks and service time.

Product Information

Standard Information

• Manufacturer: WEBSTONE
• Part Number: 1498442

Technical Specifications

• Model Number: H-81417HV
• Material: Brass
• Connection Type: Press x Rotating Flange
• Connection Size: 2 inches
• Pressure Rating: 250 PSI CWP Max
• Temperature Rating Max: 250 F Max
• Application: Non-Potable
