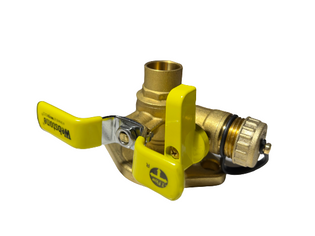

Webstone H-81416HV 1-1/2 Press x Rotating Flange Non-Potable Isolator w/ Rotating Flange & Multi-Function Drain

Product Description

The Webstone H-81416HV is a 1-1/2 inch press x rotating flange non-potable isolator designed for efficient operation in plumbing systems. This isolator allows for easy pump replacement while minimizing air entry into the system. Constructed from durable forged brass, it combines multiple functionalities to streamline installation and service.

• Easily isolates the pump for replacement and service.
• Prevents electrolysis and eliminates galvanic corrosion.
• Rotating flange secured by a snug-fit snap-ring for precise positioning.

Product Highlights

This isolator features a multi-function drain and a conical inlet that reduces turbulence during operation. It fits most standard circulator pumps and is ideal for use with water, oil, and glycol mixtures in residential and commercial systems.

Product Information

Standard Information

• Brand: Webstone
• Part number: H-81416HV

Technical Specifications

• Size: 1-1/2 inches
• Material: Brass
• Type: Isolator rotating flange with drain
• Pressure Rating: 250 PSI CWP max
• Temperature Rating Max: 250 F max
• Connection Type: Press x rotating flange
