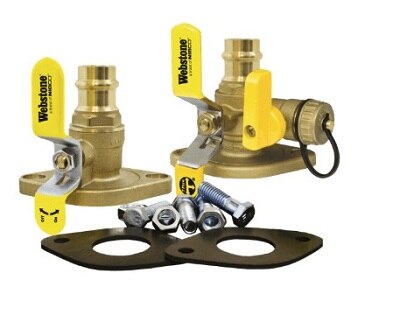

Webstone H-81415KIT Pump Isolator Kit 1-1/4 in Press Flange

Product Description

The WEBSTONE H-81415KIT is a pump installation kit designed for hydronic and circulator pump applications. It includes isolator valves with a rotating flange configuration, allowing technicians to remove and service circulators without draining the system. The 1-1/4 inch press by rotating flange connection type suits copper piping installations and provides a reliable shutoff on both the inlet and outlet sides of the pump. This kit is typically installed by licensed plumbers and HVAC technicians working on closed-loop heating or cooling systems.

This kit is suited for residential and light commercial hydronic systems where circulator pump isolation is required. The press-fit end connections simplify installation in copper pipe systems, eliminating the need for solder joints at the valve body. The rotating flange end connects directly to standard circulator pump flanges, making pump swaps faster and more straightforward during service calls.

Key Features

• 1-1/4 inch press x rotating flange connection for direct circulator pump mounting
• Rotating flange design allows pump alignment adjustment without repositioning valve bodies
• Isolator valve function enables pump removal without full system drain-down
• Press-fit end connections compatible with standard copper pipe installations
• Complete kit format includes components needed for a full pump isolation assembly

Compatibility

Designed as an OEM-style replacement and new-installation kit for hydronic circulator pump applications using 1-1/4 inch press connections and standard rotating flange pump interfaces.

Installation Notes

Installation should be performed by a licensed plumber or HVAC technician. Shut off system flow and relieve pressure before beginning work. Press connections require a compatible press tool and correct jaw size for 1-1/4 inch fittings. Verify local plumbing codes for press-fit fitting approval in the jurisdiction before installation.

Technical Specifications

• Inlet Connection: 1-1/4 inches Press
• Outlet Connection: Rotating Flange
• Kit Type: Pump Isolation Installation Kit

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-81415KIT
