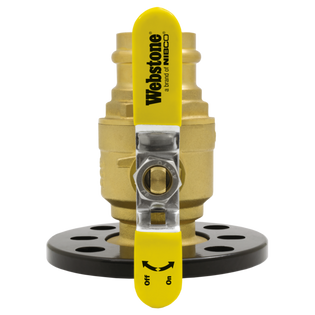

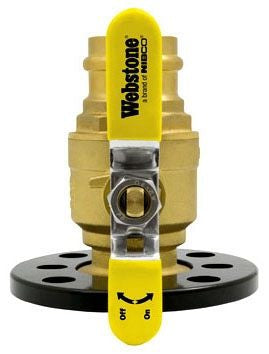

WEBSTONE H-81407HV-RF400 Press Round Isolator With Detachable Rotating Flange

Product Description

The WEBSTONE H-81407HV-RF400 is a press round isolator equipped with a detachable rotating flange. This model features a full port forged brass Uni-Flange ball valve, designed specifically for high-efficiency variable-speed pumps. It is suitable for handling water, oil, and glycol mixtures in both residential and commercial plumbing and heating applications.

• Isolator with round flange
• Full port forged brass Uni-Flange ball valve
• Detachable rotating flange

Product Highlights

The isolator allows for easy maintenance and adaptability in various installations.

Product Information

Standard Information

• Brand: WEBSTONE
• MPN: H-81407HV-RF400

Technical Specifications

• Size: 2 inches x 2 inches
• Material: Brass
• Connection Type: Press
• Type: Ball Valve
• Maximum Operating Pressure: 250 psi
• Ball Material: Brass HCP
• O-Ring Material: EPDM
• Length: 5 7/8 inches
• Height: 3.50 inches
• Flange Outside Diameter: 5 1/4 inches
