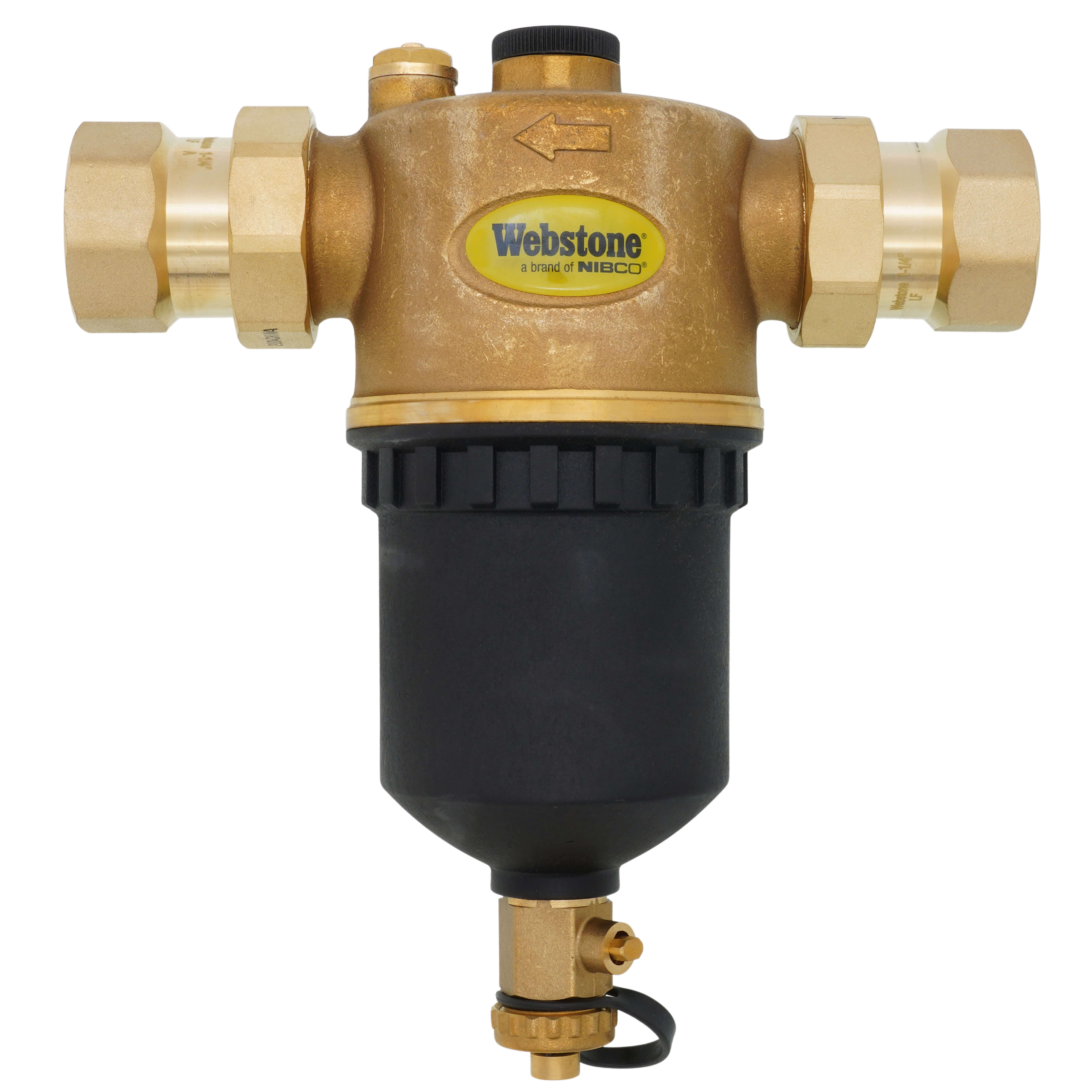

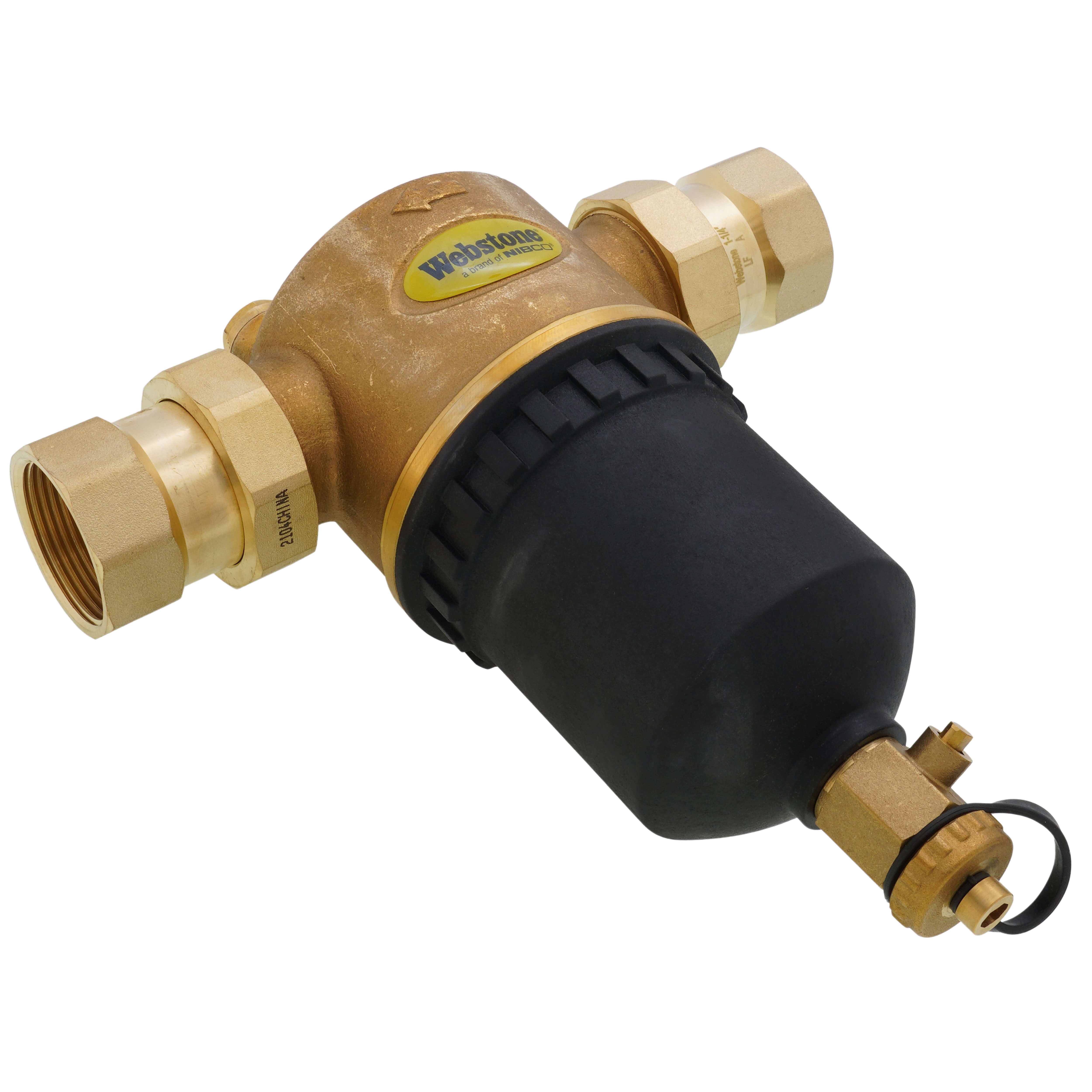

Webstone H-74705 1-1/4 inches fip brass magnetic boiler filter xl

Product Description

The WEBSTONE H-74705 is a Brass Magnetic Boiler Filter XL, designed as a Dirt Eliminator. This filter features a 1-1/4" FNPT x FNPT threaded connection and incorporates a 12,000 Gauss magnet. It effectively captures ferrous debris and filters iron sludge, protecting system components and maintaining efficiency in residential or commercial heating systems using water, oil, or glycol mix.

• 12,000 Gauss Magnet
• Integrated Hose Drain Valve, Air Vent & Filter

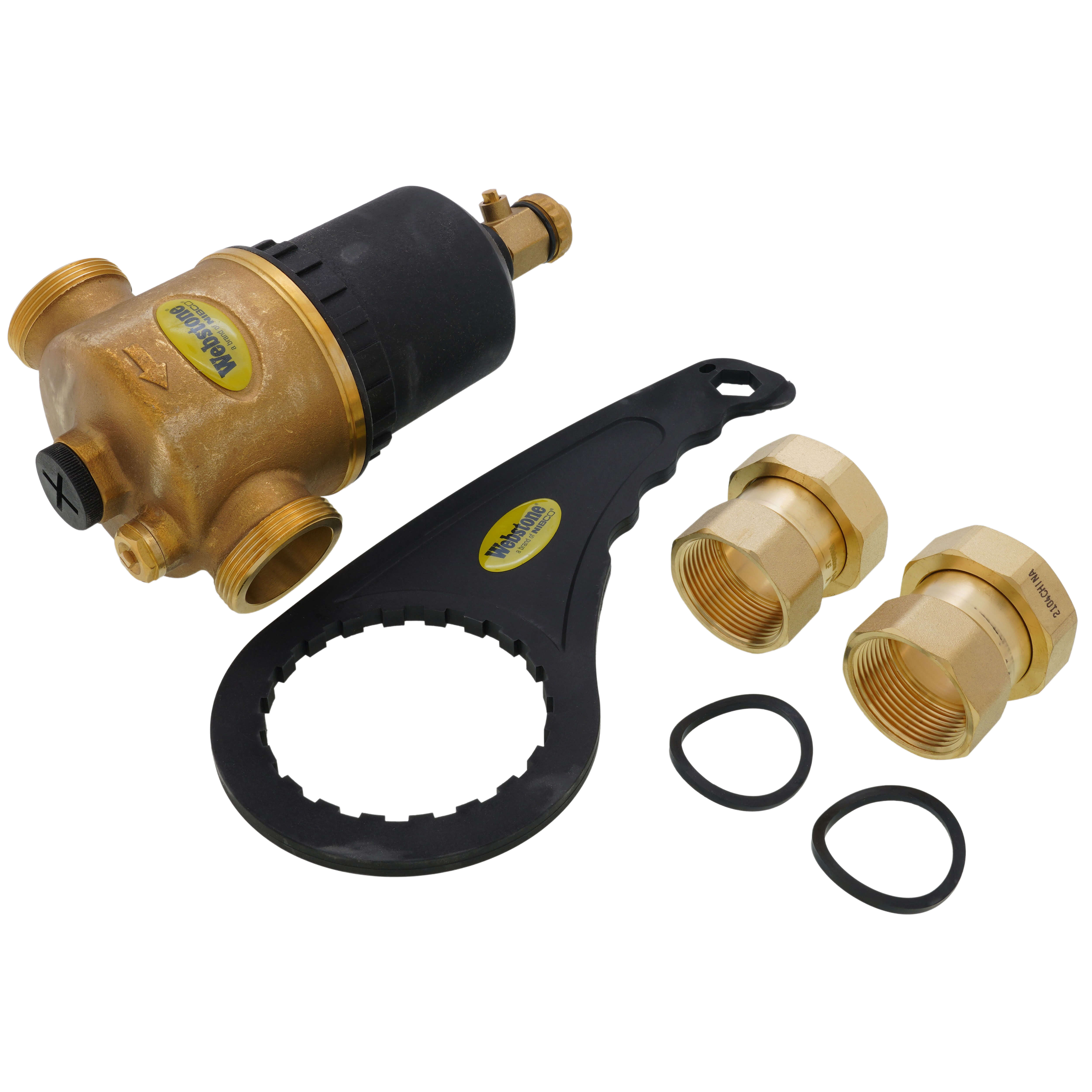

• Includes (2) Union End Connections & Service Tool

Product Highlights

Captures ferrous debris and filters iron sludge to protect boiler components and maintain system efficiency.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-74705

Technical Specifications

• Size: 1-1/4"
• Type: Magnetic
• Material: Brass
• Product Type: Dirt Eliminator
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Model: THD-7X70XL
• Pressure Rating: 145 PSI CWP Max
• UPC: 18394020740
• Potable Water Code: Not LL Comp not intend potable
• Prop65 Warning: Lead
• Series: H-7x70XL
• Temperature Rating: 250 deg F
