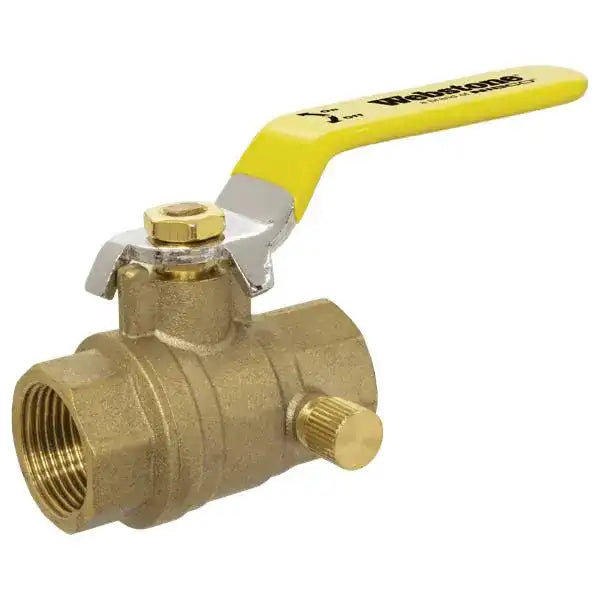

WEBSTONE H-40622W Ball Valve 1/2 in IPS Forged Brass Body Full Port PTFE Softgoods

Product Description

The WEBSTONE H-40622W ball valve is suitable for residential, commercial, and industrial applications involving water, oil, or gas. This robust valve features a blow-out proof stem, enhancing reliability and safety. The adjustable packing gland allows for easy maintenance. Its threaded ends conform to ANSI B1.20.1 standards, and the full port design maximizes flow efficiency.

• PTFE stem seal for reliable performance
• Quarter-turn lever handle for easy operation
• Complies with potable water standards and regulations

Product Highlights

The H-40622W provides a secure and effective method for controlling fluid flow in various systems.

Product Information

Standard Information

• Body Material: Forged Brass
• End Style: IPS

Technical Specifications

• Nominal Size: 1/2 in
• Port Type: Full
• Softgoods Material: PTFE
• Actuator Type: Reversible Handle
• Ball Material: HCP Brass
• Media: Gas/Oil/Water
• Series: 4062
• Trim Material: Brass Stem and PTFE Seat
• Material: Lead Free Brass
• Pressure Rating: 600 PSI
• Type of Valve: Ball
• End Connection Type: FIP
• Potable Water Code: LL Compliant NSF/ANSI 372
