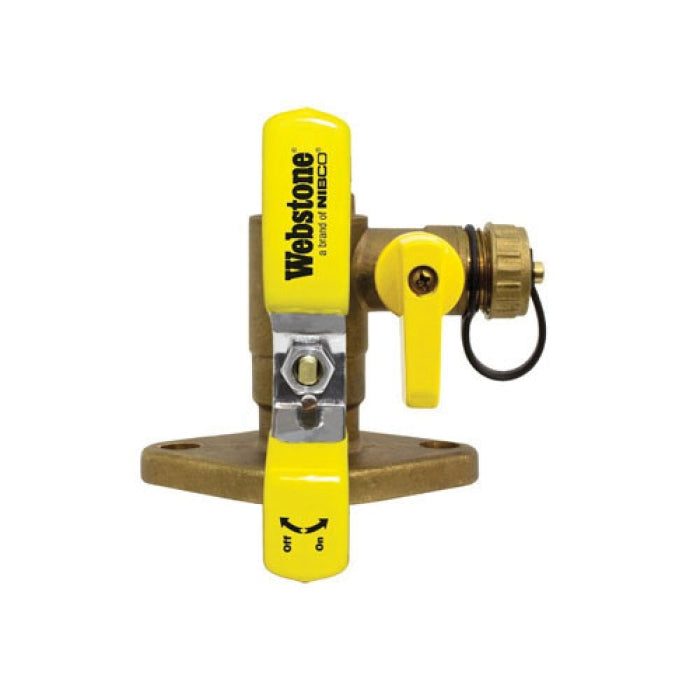

Webstone H-40415 Isolator Ball Valve 1-1/4 in FNPT x Flange

Product Description

The Webstone Isolator H-40415 is a uni-flange ball valve designed to isolate a circulator pump, preventing air from entering the system during pump service or replacement. This valve features a single forged brass body, which integrates multiple components to simplify installation and reduce labor time.

• Isolates the pump effectively for maintenance.
• Prevents electrolysis and galvanic corrosion.
• Innovative conical inlet design minimizes turbulence.

Product Highlights

The Webstone Isolator is perfect for residential and commercial plumbing systems, compatible with water, oil, and glycol mixtures. Its full port design ensures easy flow and efficient operation.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• Type: Standard Uni-Flange
• Media: Glycol Mixture/Oil/Water
• Series: 4041
• Nominal Size: 1-1/4 in
• Orifice Size: 1-1/4 in
• Pressure Rating: 600 psi CWP
• Temperature Rating: 100 deg F
• Body Material: Forged Brass
• Trim Material: Brass/PTFE
• Softgoods Material: EPDM/PTFE
• Actuator Type: Wing Style T-Handle
• Inlet to Outlet Length: 4-7/16 in
• Top to Inlet Center: 2-7/8 in
• End Style: FNPT x Flange
• Port Type: Full
• Domestic/Import: Import
