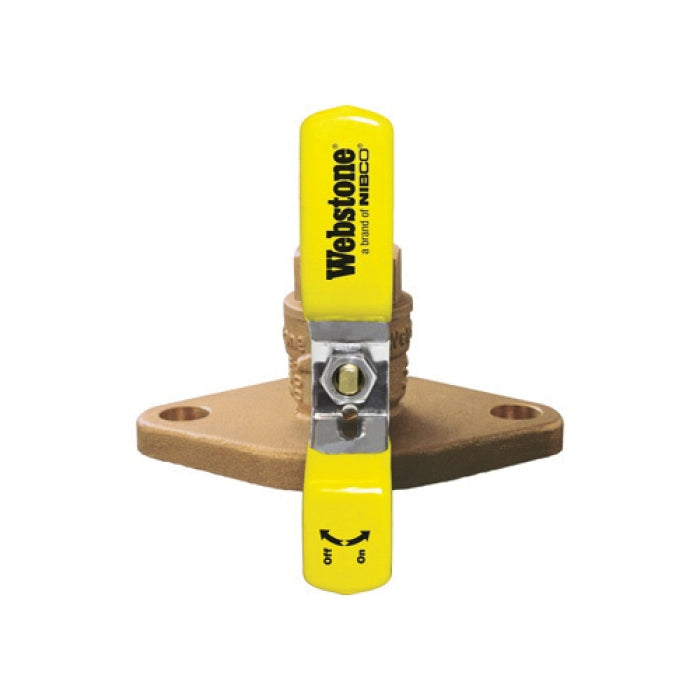

Webstone H-40406HV Isolator Ball Valve 1-1/2 inches IPS x Flanged

Product Description

Webstone H-40406HV is a uni-flange Ball Valve designed to isolate a circulator pump. It allows minimal air intake into the system during pump maintenance or service. The valve features an innovative design with a forged brass body, optimizing installation efficiency in both residential and commercial plumbing systems.

• Isolates the pump for easy replacement
• Prevents electrolysis and corrosion
• Compatible with various circulator pumps

Product Highlights

This valve is applicable for water, glycol, and oil mixtures, making it suitable for heating systems.

Product Information

Standard Information

• Brand: Webstone
• Manufacturer: NIBCO Inc.

Technical Specifications

• MPN: H-40406HV
• Nominal Size: 1-1/2 inches
• End Style: IPS x Flange
• Pressure Rating: 600 psi
• Temperature Rating: 100 degrees F
• Media: Water/Glycol Mixture
• Actuator Type: Lever Handle
• Inlet to Outlet Length: 4 inches
• Top to Inlet Center: 2-3/8 inches
• Body Material: Forged Brass
• Ball Material: Polished Chrome Brass
• Softgoods Material: PTFE
• Trim Material: Brass Stem and PTFE Seat
