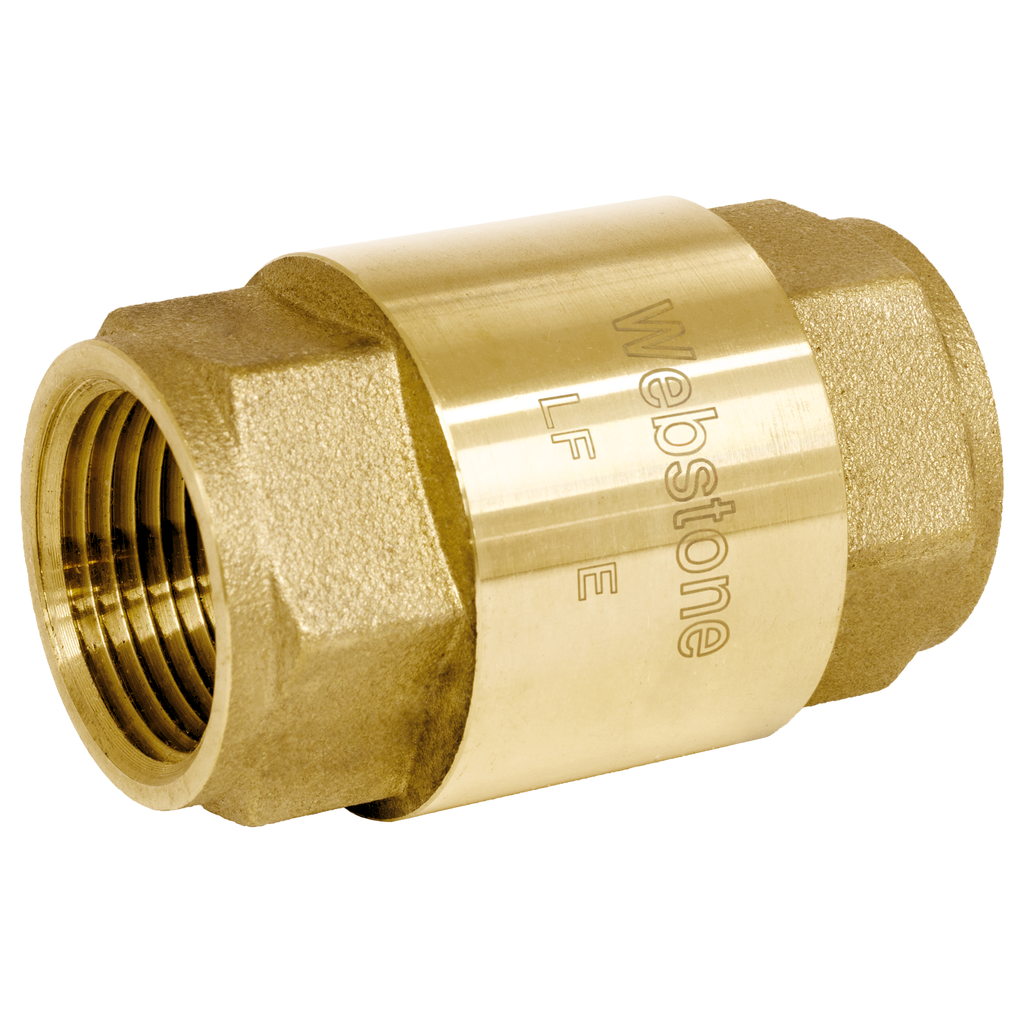

Webstone H-10746W in-line spring check valve 1-1/2 inches x 1-1/2 inches

Product Description

The WEBSTONE H-10746W is a 1-1/2" x 1-1/2" FIP in-line spring check valve constructed from forged DZR brass, designed for efficient flow control. This valve features a stainless steel spring soft seat (FKM) and is suitable for use with water, oil, and glycol mixes in both residential and commercial plumbing and heating systems. It is LL Compliant NSF/ANSI 372 and can withstand a maximum temperature of 250 F.

• Forged DZR brass construction ensures durability and corrosion resistance.
• In-line spring check valve with stainless steel spring soft seat (FKM) for reliable backflow prevention.
• Suitable for water, oil, and glycol mix applications in residential and commercial plumbing and heating systems.

Product Highlights

This Webstone H-10746W valve is a 1-1/2" FIP forged DZR brass in-line spring check valve, suitable for various fluid control applications up to 250 F.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-10746W
• Country of Origin: China

Technical Specifications

• Brand: Webstone
• MPN: H-10746W
• Model: THD-107XW
• Valve Type: Check
• Series: H-107X
• Nominal Pipe Size: 1-1/2" x 1-1/2"
• Connection Type: FIP
• Material: Brass
• UPC: 018394015487
• Country of Origin: CN
• Potable Water Code: LL Compliant NSF/ANSI 372
• Republic #: 1176100
• Application: Commercial & Residential Plumbing, Heating
• Pressure Rating: 200 PSI CWP Max
• Max Temperature: 250 F
