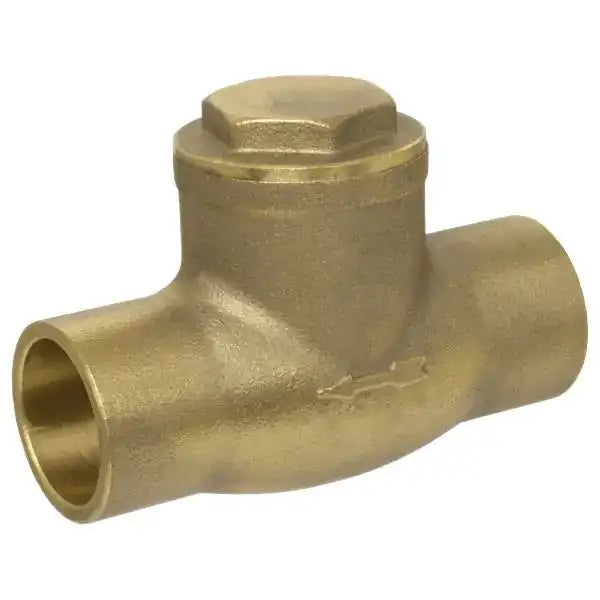

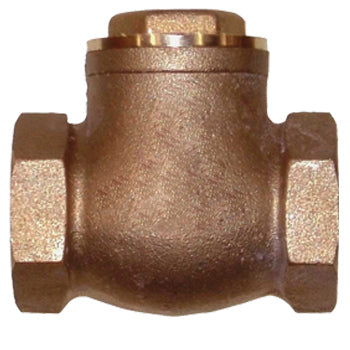

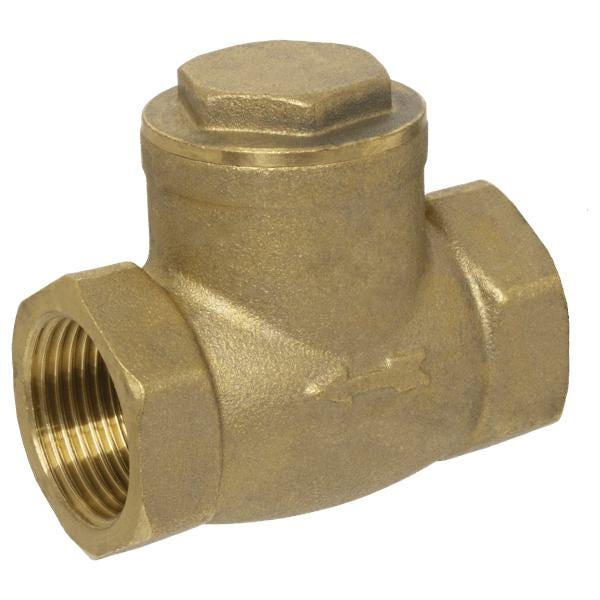

WEBSTONE H-10543W Swing Check Valve 3/4 in. IPS

Product Description

The WEBSTONE H-10543W swing check valve is essential for preventing back-flow in low-pressure systems. This valve is made from lead-free brass, ensuring safety for potable water applications. It features a mounted disc assembly, full-ported swing design, and IPS threaded ends, making it ideal for both residential and commercial water distribution.

• Mounted Disc Assembly Prevents Back-Flow
• Designed for Low Pressure Applications
• Full Port Swing Check Design

Product Highlights

This swing check valve is designed for reverse flow prevention in piping systems. It can handle fluid temperatures up to three hundred fifty degrees Fahrenheit.

Product Information

Standard Information

• Brand: WEBSTONE
• MPN: H-10543W

Technical Specifications

• IPS: 3/4 in.
• Material: Brass
• Size: 3/4 inch nominal
• Pressure Rating: 200 psi non-shock
• Temperature Rating: Up to 350°F
• End Connections: IPS (Female NPT)
• Face-to-Face Length: 2.38 inches
• Height (Top to Inlet Center): 1-1/2 inches
• Model Series: 1054W
• Height: 1.95 inches
• Length: 2.3 inches
• Width: 2.9 inches
• Item Type: Check Valves
• Sub Type: Swing Check Valve
• Body Material: Brass
• Domestic/Import: Domestic
• Media: Water
• Port Type: Full
• Nominal Pipe Size: 3/4 in. x 3/4 in.
• End Connection Type: FIP
