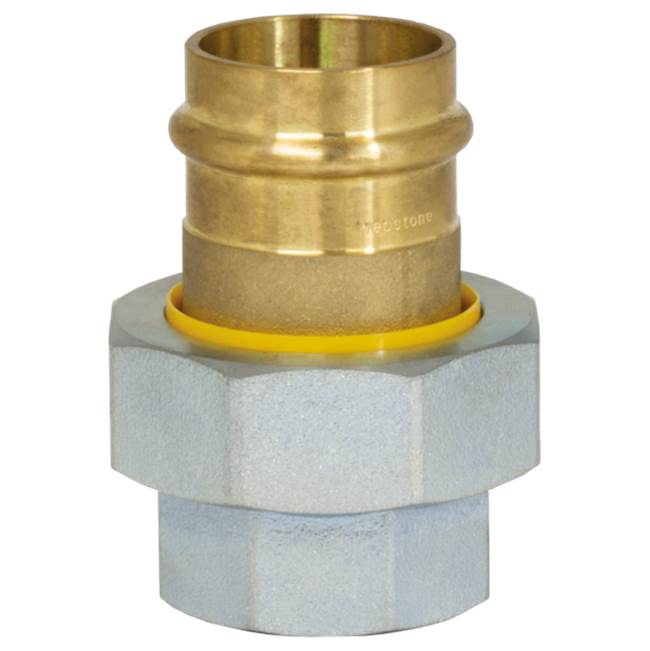

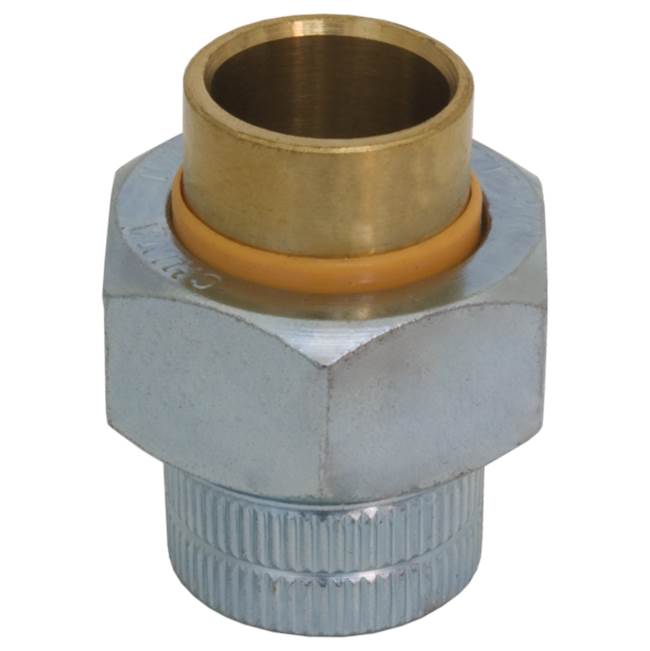

Webstone H-01105W Dielectric Union With Nylon Insulator Ring 1-1/4 inches FNPTxC

Product Description

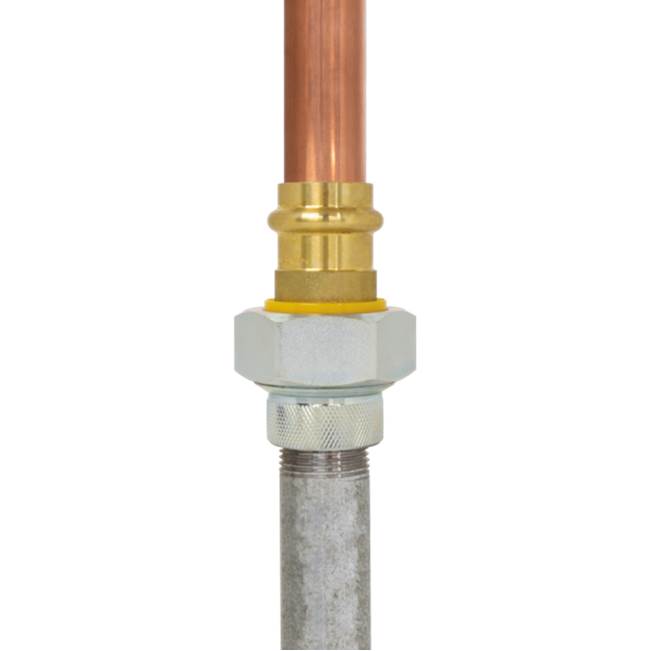

The WEBSTONE H-01105W Clean Brass™ Dielectric Union is designed to avoid corrosion caused by electrolysis when transitioning between different piping materials. It features a 1-1/4 in nominal size with FNPTxC end style. Constructed from galvanized steel and brass, this union fitting is suitable for various plumbing applications.

• Avoids corrosion caused by electrolysis while transitioning between different piping materials
• Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder
• Certified to NSF/ANSI 61 and 372

Product Highlights

This dielectric union is ideal for preventing corrosion in mixed-metal piping systems. It is certified to NSF/ANSI standards and complies with low-lead laws.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: H-01105W

Technical Specifications

• Domestic / Import: Import
• End Style: FNPT x C
• Material: Brass/Galvanized Steel
• Nominal Size: 1-1/4 in
• Manufacturer: NIBCO Inc.
• Manufacturer #: H-01105W
• Series: H-x110 Series
• Fitting Type: Union
• Connection Size 1: 1-1/4 in
• Connection Size 2: 1-1/4 in
• Connection Type 1: FIP
• Connection Type 2: Sweat
• Connection Type: FIP|Sweat
• Finish: Galvanized
• Material Construction: Brass/Steel
• Temperature Rating: -40 to 350 deg F
• Additional Information: Lead-Free
• Product Type: Plumbing Part
• Low Lead Compliant: Yes
• ASME: Yes
• Prop65 Warning: Lead
• Connection Size: 1-1/4''
• Includes: Nylon Insulator Ring
