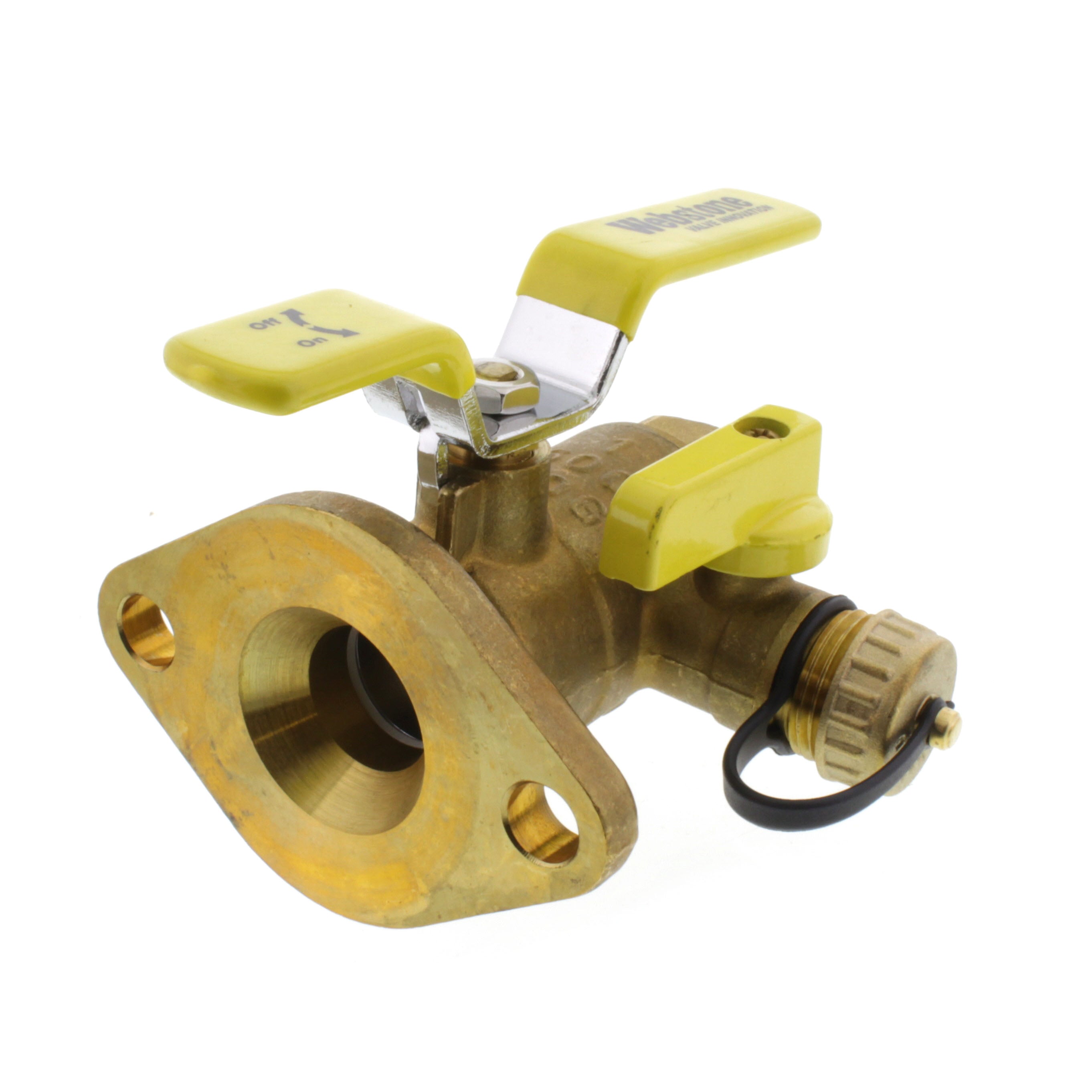

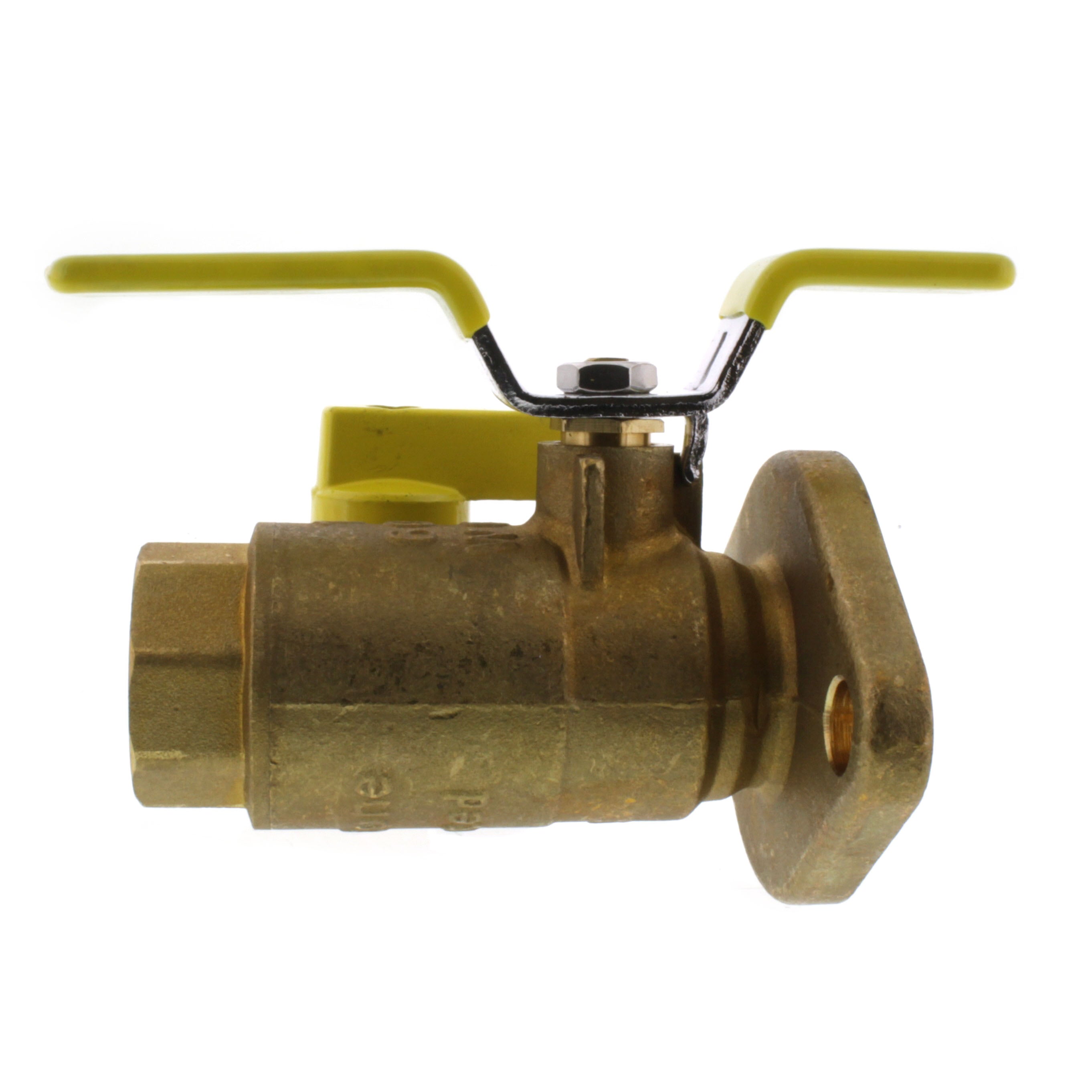

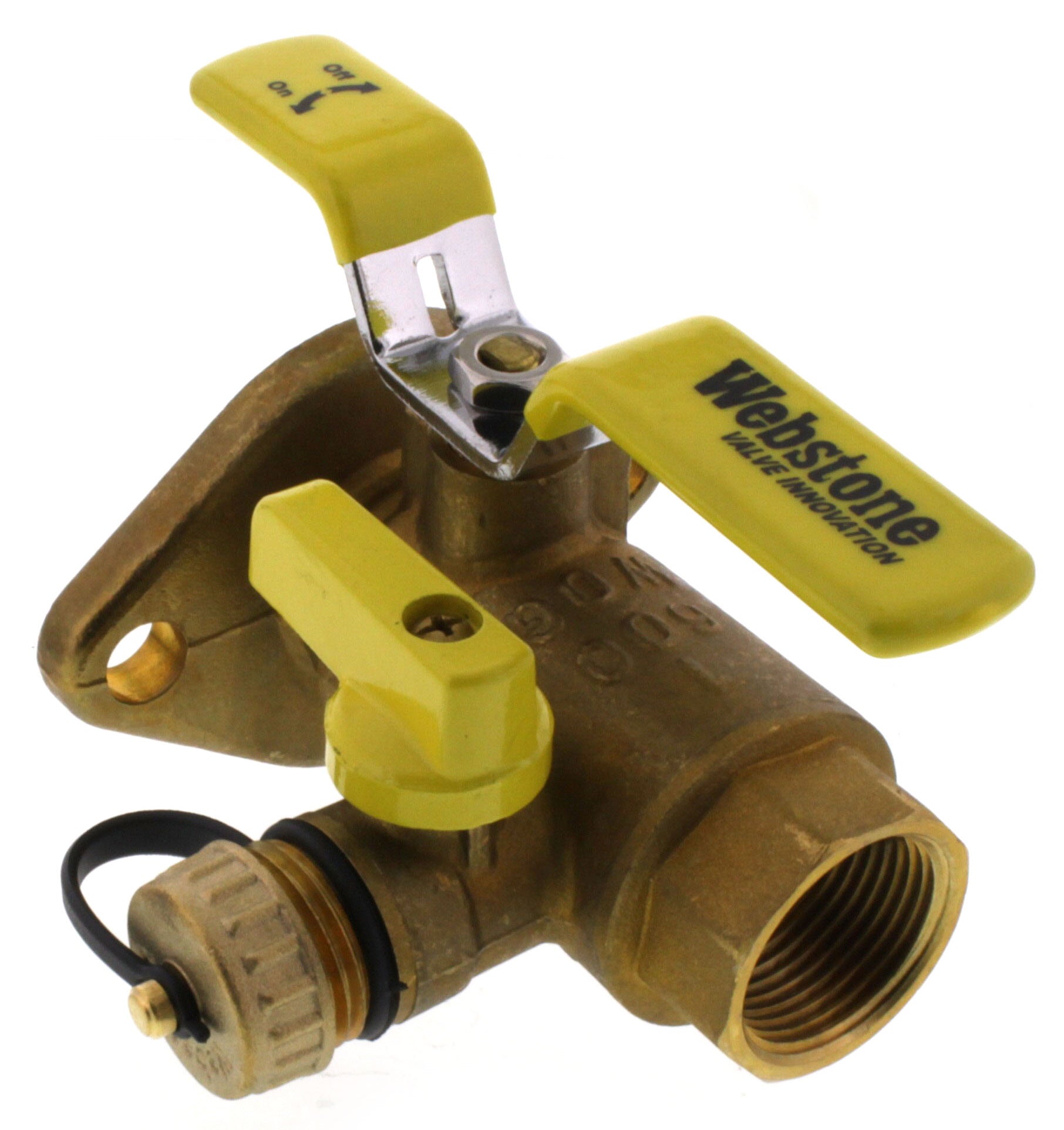

Webstone 40414 1 IPS Isolator Flange with Drain

Product Description

The Webstone 40414 is a one-inch threaded isolator flange with drain designed for effective use in heating systems. This product features a reliable brass body and flange construction. The unit is compatible with two-bolt flanged circulator pumps and is suitable for both residential and commercial applications. It is especially useful in closed systems that require a large port drain and fill valve.

• Includes wing style T handle, mounting nuts, and bolts.
• Designed for residential and commercial heating systems.
• Brass construction provides durability and strength.

Product Highlights

This isolator flange includes necessary hardware for installation and is engineered for efficiency in circulator pump systems.

Product Information

Standard Information

• Brand: Webstone
• Type: Isolation Flange

Technical Specifications

• Connection Size: 1 inch
• Material: Brass
• Weight: 2.94 pounds
• Used With: 2 bolt flanged circulator pumps
• Connection Type: Threaded
• Shipping Dimensions: 6.13 inches (depth) x 4.25 inches (width) x 3.88 inches (height)
