Webstone 40407 2 inches Threaded Isolator - High Velocity

Product Description

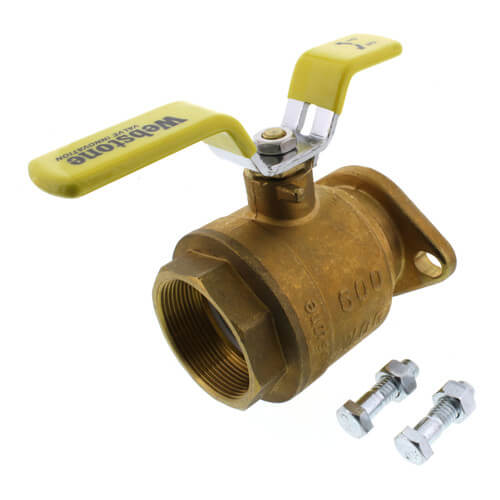

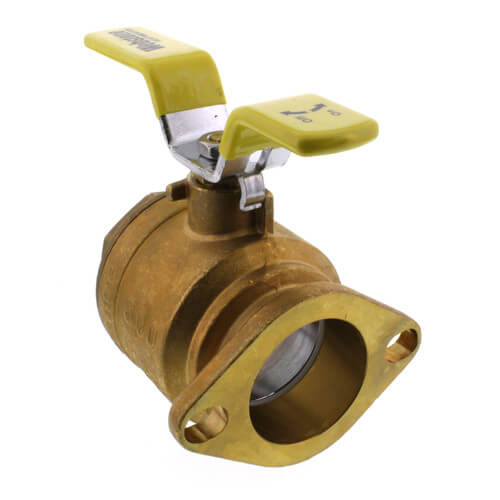

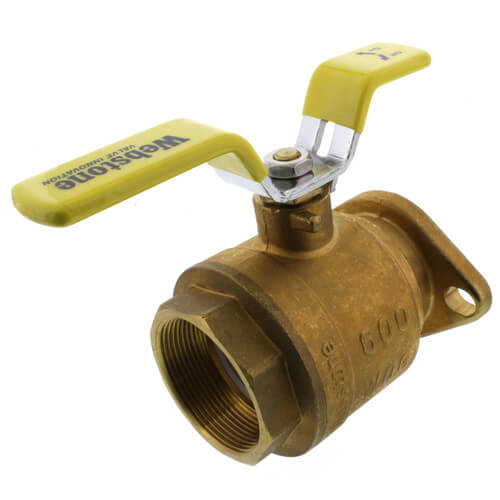

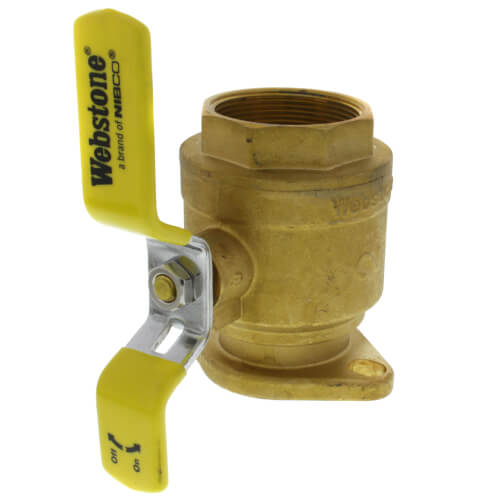

The WEBSTONE 40407 is a 2" threaded isolator designed for high-velocity applications. This isolator features an adjustable packing gland and comes with a wing-style "T" handle, mounting nuts, and bolts. It is designed for residential and commercial use with water or a glycol mixture. The full port design ensures unrestricted flow.

• Threaded connection
• Full port for unrestricted flow
• Prevents electrolysis and eliminates galvanic corrosion

Product Highlights

The WEBSTONE 40407 threaded isolator is ideal for isolating circulator pumps, saving time, labor, and space during pump replacement or service.

Product Information

Standard Information

• Brand: WEBSTONE
• Manufacturer Part Number: 40407
• Country of Origin: Import

Technical Specifications

• Size: 2"
• Features: Standard
• WOG: 600
• Connection Size: 2"
• Connection Type: Threaded
• Brand: Webstone Valve
• Sub Brand: The Isolator
• Item Name: Ball Valve
• Series/Model: 4040 Series
• Type: 2-Piece, Full Port, Uni-Flange
• Nominal Size: 2 x 2 Inch
• Media: Water/Glycol Mixture
• Pressure Rating: 600 psi WOG, 150 psi WSP
• Temperature Rating: 100 deg F
• Opening Size: 2 Inch
• Body Material: Forged Brass
• Ball Material: HCP Brass
• Seat: PTFE
• Seal: PTFE
• Stem: Brass
• Packing: Brass
• Actuation/Operator: Lever Handle
• Actuator Type: Lever Handle
• Port Type: Full
• Softgoods Material: PTFE
• Top to Inlet Center: 3-3/4 in
• Trim Material: Brass Stem and PTFE Seat
• Diameter: 2 in
• Country of Origin: China
